| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | ZSLQ |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Nude packing on bulk ship |
| Delivery Time: | 2 month after received down payment |
| Supply Ability: | 12 sets per month |
| Product Name:: | Reclaimed Asphalt Mixng Plant | Process: | Weighed And Conveyed Into Mixer Tank For Mixing |
|---|---|---|---|
| Installed Power: | 198KW | Weighing Barrel: | 0~1500kg |
| Dryer Dim.: | 2200~10000mm | Control System: | Programmable Logic Controller |
| Power Type: | 380V/50HZ | Fan Power: | 22kw |
| High Light: | asphalt recycling equipment,plants used in construction |
||
3.6m feeding height 130tph hopper elevator asphalt recycling plant with 15kw heater

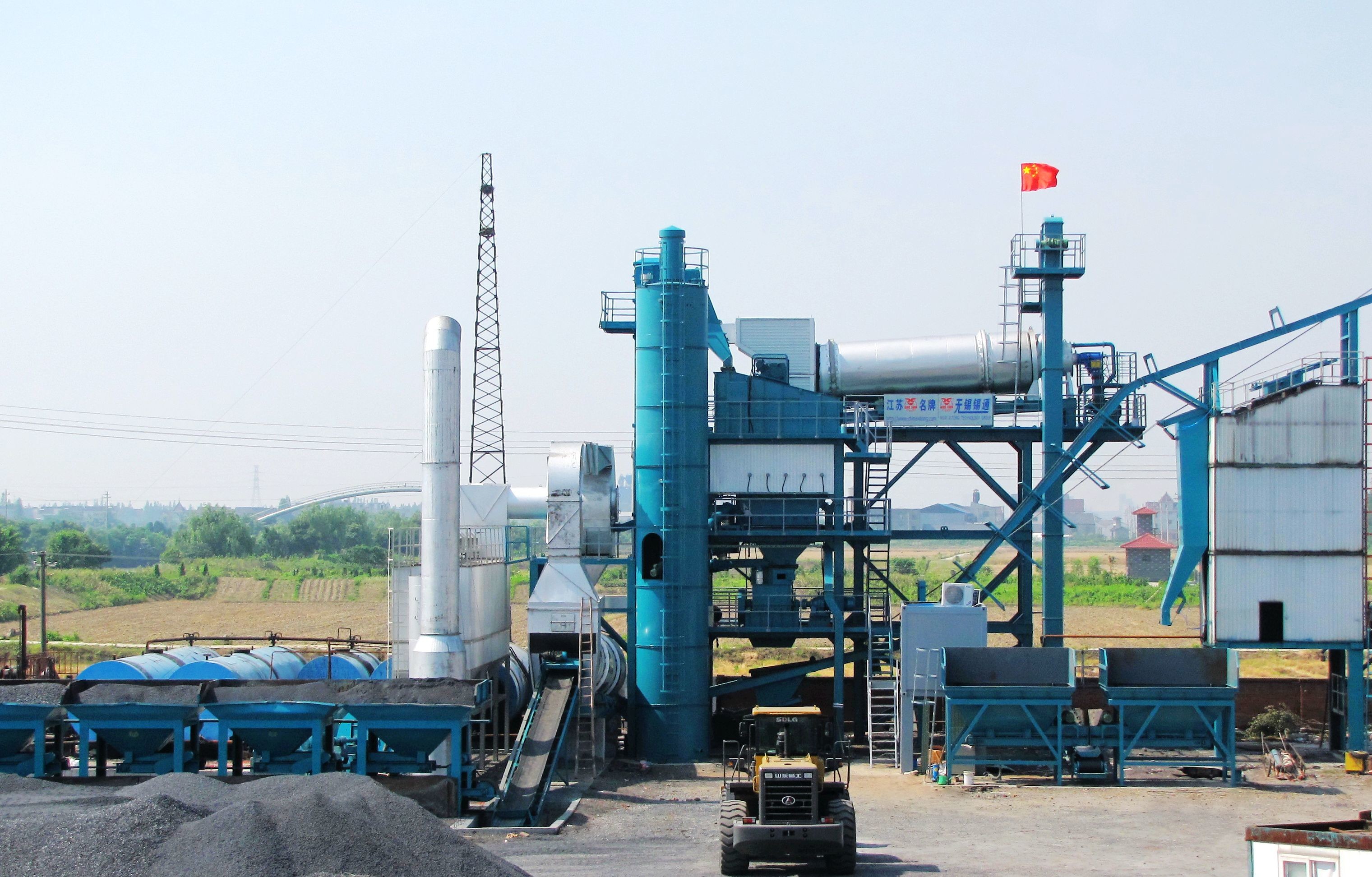

Xitong Brand ZSLQ-1500Model Batch Asphalt recycling mixing Plant
It’s suitable for asphalt mixing plant, and recycles all kinds of proportional asphalt mixture.
Max output :80-120t/h(Working condition):
Main parts of equipment:
1.0 Supply system of cold aggregate powder
The cold hopper is mounted on the collective conveyer, with continuous frequency belt feeder. Every bin had inlet separated screen for rough & waste materials, operation platform and empty hopper alarm device, Collective belt and feeding belt, with anti-skid auxiliary tube and clean scratch board.
1.1 Cold aggregate powder hopper: two pieces
Volume (each): 8m3
Feeding width: 3.6m
Feeding height: 2.95m
1.2 Belt feeder: two sets
Belt width: 500 mm
Max in feed amount: 140t/h
Drive power: 5.5kw
Belt length: 6550mm
1.3 Empty hopper alarm device: two sets
Proximity switch type empty hopper sound and light alarm device; The signal will be sent to the control room rapidly
1.4 Wall vibrator: two sets
Drive power: 2.2Kw
1.5 Belt conveyer:one set
Length: According to the condition of working site
Belt width: 600 mm
Conveying capacity: 140t/h
Drive power: 5.5KW
Item:ZSLQ-1000 model recycled asphalt mixing plant
Usage:Suit to 2000 model(120~160t/h) asphalt mixing plant, used for recycling waste road asphalt materials
Power source:380V/50Hz.
Scope of supply:
| No. | Name | Quantity | Remark |
| A | Feeding System Of Cold Aggregate | ||
| 1 | Cold Aggregate Ground Hopper (with wall vibrator) | 2 sets | Combined together, empty hopper alarm device |
| 2 | Strap Feeder | 2 sets | frequency converter |
| 3 | Collective Belt Conveyer | 1 set | |
| B | Cold Aggregate elevator | ||
| 1 | Stone Material Hoist | 1set | |
| C | Cold Aggregate dryer | ||

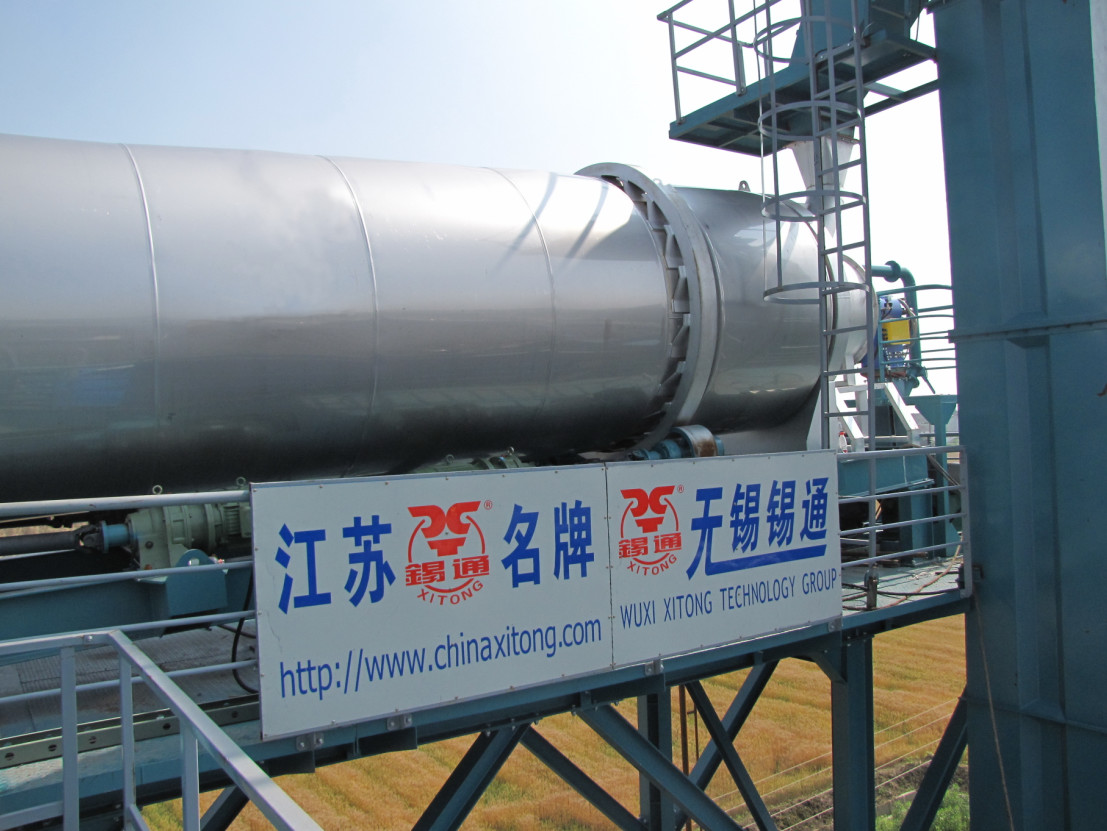

| 1 | Drying drum(Friction Driven) | 1set | Stainless steel cover |
| 2 | burner | 1set | Italy Ebico |
| 3 | Hot air generator | 1set | |
| D | Storage and weighing system | ||
| 1 | 5000 ton storage silo (equipped weight sensor,indicator ) | 1set | |
| 2 | Weighing bin | 1 set | |
| 2 | Hot material conveyor | 1 set | |
| E | Dust Collector | ||
| 1 | Draught Fan | 1 set | Electrical air door |
| 2 | Smoke Path and Chimney | 1 set | |
| F | Main Frame Part System | ||
| 1 | Platform, Handrail And Guard Railing | 1set | |
| G | Pneumatic Control System | ||
| 1 | Pneumatic part | 1 set | |
| H | Electronic Control System | ||
| 2 | Computer control system | 1 set | Mitsubishi PLC |
