| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB-HX |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Nude packing on bulk ship |
| Delivery Time: | 2 month after received down payment |
| Supply Ability: | 12 sets per month |
| Model NO.: | QLB-HX3000 | Production Capacity: | 240t/h |
|---|---|---|---|
| Product Name: | Asphalt Mixing Plant | Automatic Grade/: | Full Auto/semi-auto/manual |
| Emission Control:: | Bag Filter House | Product Temperature: | 130~180 Adjustable |
| Mixing Cycle:: | 45 Second | Asphalt Tank Volume: | 30T/50T |
| High Light: | asphalt plant equipment,bitumen production plant |
||

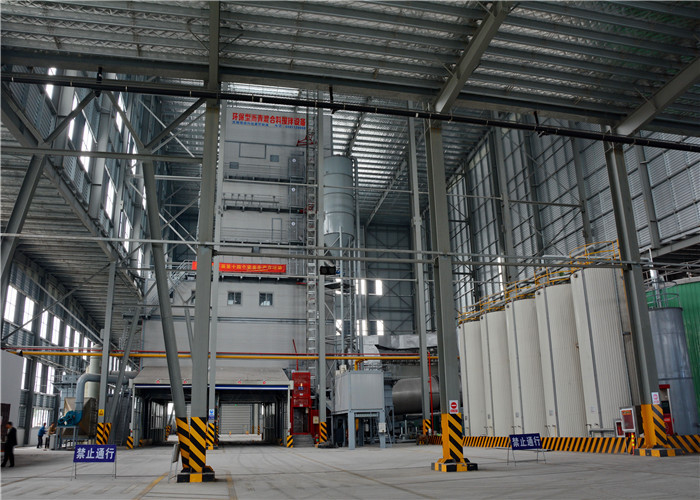

240T/H environment-friendly asphalt mixing equipment with 3000kg mixer capacity
Descrition of dust control for asphalt mixing equipment
1, hot aggregate discharge outlet dust pollution prevention and control
At the bottom of the discharge outlet of the mixing tank and finished products storage tank, increased the suction device and large volume suction duct directly through the bag filter. When excess hot aggregate emptying in the hot aggregate storage tank as long as the suction duct been connected to the bag filter with the help of the switching valve, making sure there is negative pressure in the discharging area (maximum air volume can up to 25m3 / sec), the exhaust generated aggregate dust will enter the bag filter through the pipe, cleaning efficiency ≥95%.
Asphalt gas pollution prevention
2, in the normal production of the plant, asphalt fumes flowing is most severe when finished mixing mixture loading.
Both sides of the channel needed for feeding trolley loading of this set of environmentally friendly asphalt mixing plant will be closed, closed length is enough for feeding trolley shifting loading ; each side equipped with a fast lifting gate, which can sense the vehicle access, automatic opening and closing , convenient for feeding trolley in and out.
Top of the channel is tapered, the highest position and taper top of the finished product silo is connected; flue gas collection pipes installed at the upper end of the cone, when loading asphalt fumes will be float upward, can be collected by the limited amount of air volume. It can effectively eliminate the problems of the flue gas flowing when discharging.
Specification
QLB-H Series Environmental-protection Type Asphalt Mixing Plant Data Form
| Name | Specification | ||||
| Model QLB-H environmental –protection type | QLB-HX2000 | QLB-HX3000 | QLB-HX4000 | QLB-HX5000 | |
| Rated productivity | 160t/h | 240t/h | 320t/h | 400t/h | |
| Volume/number of cold bin | 10m3/5 | 12m3/5 | 16m3/6 | 16m3/6 | |
| Dust collect type | Air back flush | ||||
| Dust collect result | No more than 30mg/Nm3 Ringe-Imann grade 1 | ||||
| Fuel | Diesel/heavy oil/coal powder | Diesel/heavy oil | |||
| Volume/number of hot bin | 50t/5 | 80t/5 | 95t/6 | 95t/6 | |
| Precision of aggregate metering | Less than ±1.0% | Less than ±0.5% | |||
| Precision of powder metering | Less than ±1.0% | ||||
| Precision of asphalt metering | Less than ±0.5% | ||||
| Mixer ability KG/batch | 2000 | 3000 | 4000 | 5000 | |
| Volume/number of asphalt tank | 50m3/2 | 50m3/4 | 30m3/4 | 30 m3/5 | |
| Finished product bin volume(T) | 120 | 160 | 220 | 220 | |
| Total power(KW) | 475 | 690 | 910 | 990 | |
| Control system | Full auto computer control(PLC+LED+mouse) |
||||
