| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Nude packing on bulk ship |
| Delivery Time: | 2 month after received down payment |
| Supply Ability: | 5 sets per month |
| Installed Capacity: | 240tph | Type: | Fixed |
|---|---|---|---|
| Liner: | One Hundred Thousand Batches Life Time | Hot Bin: | 80T Capacity For Hot Aggregate |
| Hot Aggregate Elecator: | 260tph | Total Power: | 640kw |
| Screen Layer: | 5 Layers | Aggregate Parameter: | 3mm,6mm,11mm,19mm,30mm |
| High Light: | asphalt batch plant,ready mix batching plant |
||

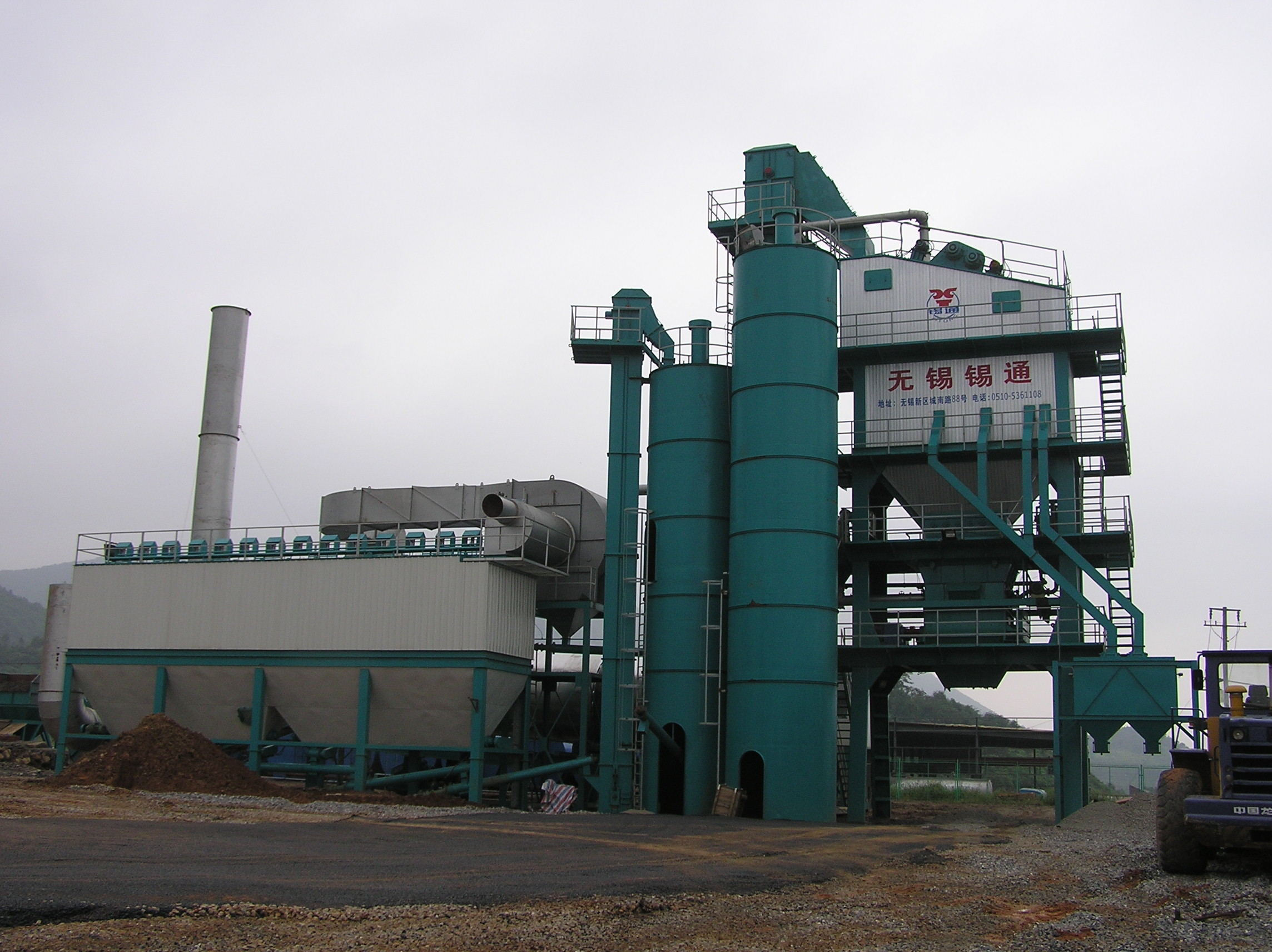

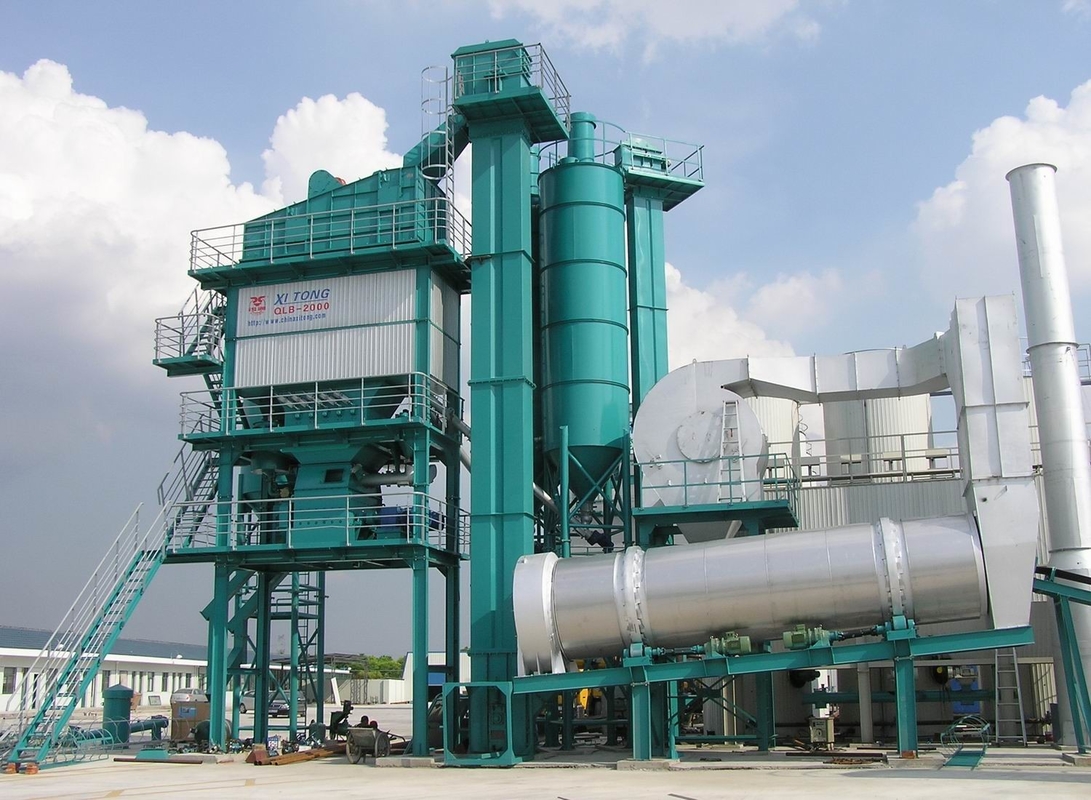

300T dead weight 680KW power Asphalt Batching Plant with 50T butimen tank
Advantage for Xitong bitumen, aggregate and filler mixing equipment:
1, Double-open door for asphalt product emptying,which has electrical heating device, emptying passageway is set especially for waste material, the whole silo body is heat insulated and equipped with anti-segregation device.
2,For cold aggregate feeding system, 5 recuders with frequency control for reasonable grading, which could adjust speed freely, separation net is fixed at inlet of each hopper when aggregate feeding from loader, at outlet of ground hopper, adjustable doors and blanking warning device are set; select imported bearings for four support rollers on drying drum; at the outlet there is temperature measuring equipment; at the outside of dryer, 5mm rock cover up dryer body for higher heat utilization, which is also easy to change.
3, Fuel for burner is optional etiher diesel or heavy oil, where air iginition device is set with high successful rate of ignition; adopt medium atomization, to ensure abundant burning
| No. | Name | QTY | Remark |
| I | Supply System Of Cold Aggregate Powder | ||
| 1 |
Cold Aggregate Powder Hopper(Combined type)
|
5sets |
Each hopper with inlet Separated screen for rough and waste materials, shortage monitoring and alarm device, 2 hoppers with wall vibrators |
| 3-hopper combined type,each hopper capacity 12m3 | |||
| Feeding width/height:3.6m/4.0m | |||
| 2 |
Belt feeder
|
5 sets |
Inverter control, Skirt edge belt width 600mm Belt width:600 mm Max feeding capacity；160t/h Belt length:3200mm Geared reducer: Boneng or Dongli(joint venture) |
|
Remark: Skirt edge belt with longer lifetime and more difficult to wear.
|
|||
| 3 |
Collecting belt conveyor and inclined(feeding) belt conveyor
|
1set for each |
Seamless high tenacity rubber belt and antiskid and rubber coating driven roller. Sweepers are mounted on both ends of belt, lower roller adopts anti seize structure to ensure good working condition. Belt width: ≥650mm Drive: Boneng or Dongli(joint venture) Capacity: ≥260t/h Japan NSK imported bearing |
| II |
Cold aggregate drying system
|
||
| 1 |
Drying Drum (Stainless steel exterior insulation)
|
1 set | Dia.×L=Φ2750mm×9000mm |
| 4 sets of Boneng or Dongli axle-mounted geared motor(joint venture) | |||
| USA Timken bearing | |||
| 4 groups of friction driving(see the diagram) | |||
| Overall thermal Insulation,stainless steel surface | |||
| 2 |
Burner
|
1set |
Italy EB, high pressure atomization(EC9NQR) Fuel type: diesel Max fuel spraying: ≤1800kg/h Ratio control: 1:10 Oil consumption: ≤6.5kg/t With one sensor to control discharging temperature |
