Installed Capacity: | 160tph | Type: | Side Type |
---|---|---|---|
Lining Plate: | Three Hundred Thousand Batches Life Time | Finished Storage Silo: | 100T |
Hot Aggregate Elecator: | 260tph | Heating Method: | Heat Exchanger By Conduction Oil |
Screen Layer: | 5 Layers | Processing Object: | Bitumen, Aggregate, Filler |
High Light: | asphalt batch plant,ready mix batching plant |

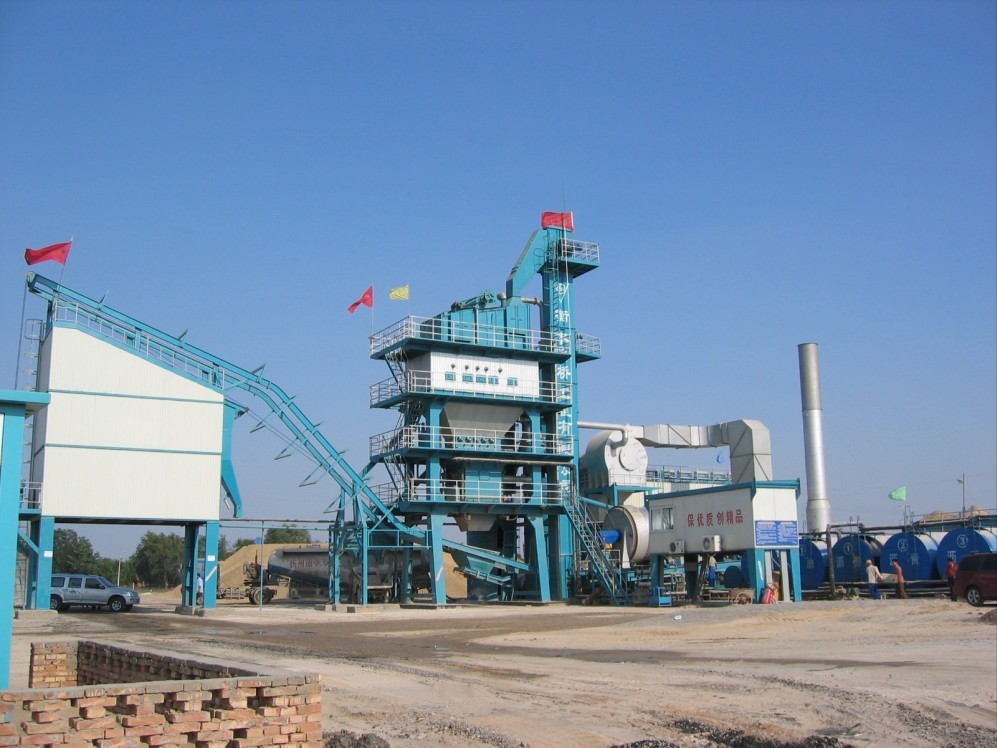

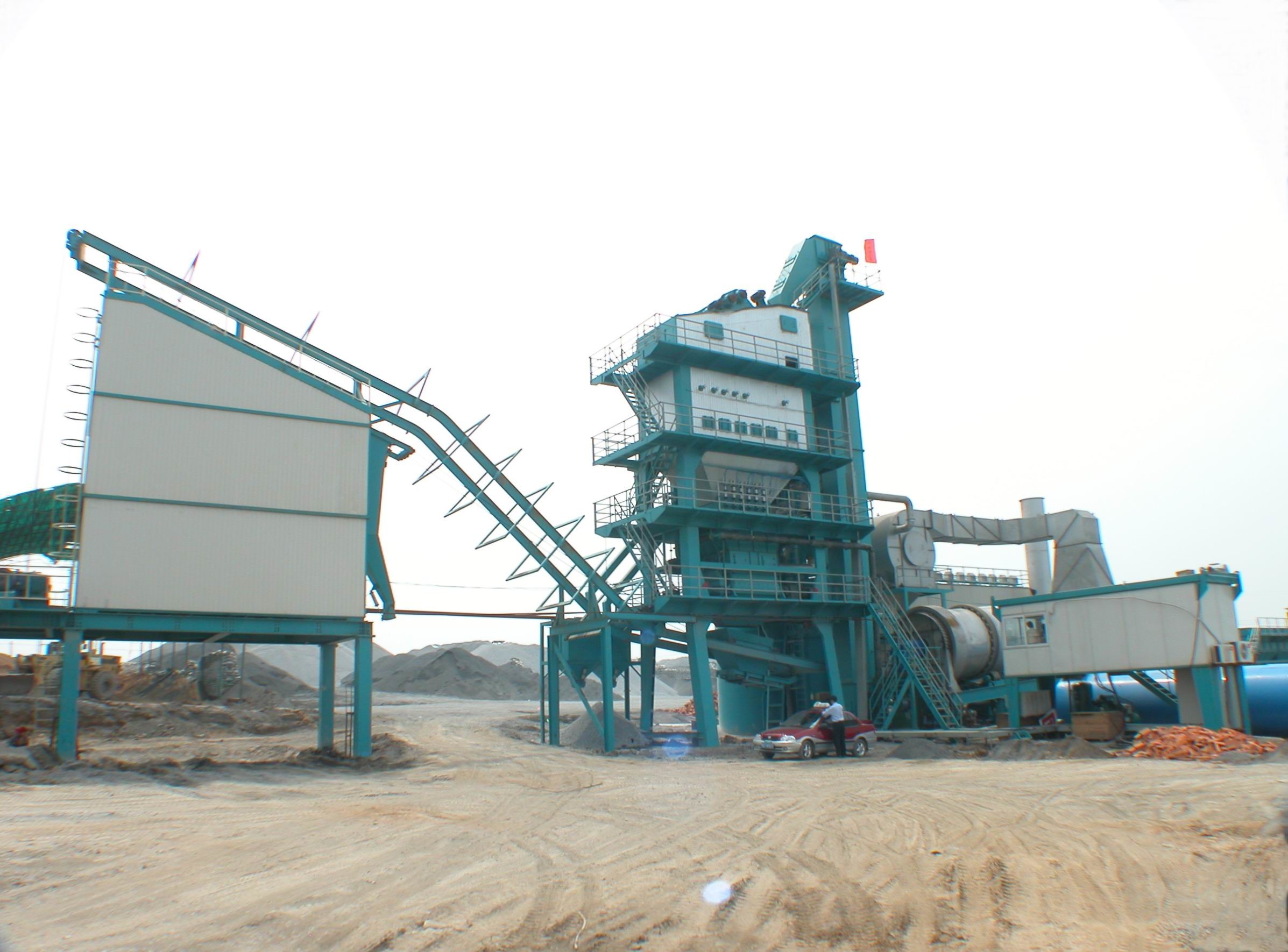

QLB-2000 model diesel fuel type hot mix Asphalt Batching Plant 500000 Kcal boiler furnace
Advantages for Xitong bitumen mixing plant with aggregate and filler:
1, Twin-open door for raady bitumen mixture product emptying,with Electric Heating Appliances, emptying passageway is set especially for waste material, the whole silo body is heat insulated and equipped with anti-segregation device.
2,On raw aggregate cold feeder, 5 reduction gears with frequency converting control for accurate grading, which could change speed freely, separation screen is fixed at inlet of each ground silo, when aggregate feeding from loader, at outlet of ground silo, adjustable doors and empty warning device are set; imported bearings are chosen for four support rollers on drying drum system; at the outlet there is temperature metering unit; at the outside of dryer, 5mm thickness rockwool covers up dryer body for higher heat insulation, which is also easy to change.
3, Fuel for burner is available either diesel or heavy oil, where air iginition device is set with high successful rate of ignition; apply medium atomization, to ensure burning process smooth
No. | Name | QTY | Remark |
I | Supply System Of Cold Aggregate | ||
1 |
Raw Aggregate Ground silo(Connected type)
|
5sets |
Each cold silo with individual screen for rough and waste materials, with empty alarm device, 2 silos with wall vibrators |
3-silo combined type,each silo capacity 12m3 | |||
Feeding width/height:3.6m/4.0m | |||
2 |
Belt feeding unit
|
5 sets |
converter control, carina type belt width 600mm Belt width:600 mm Max feeding volume;160t/h Belt length:3200mm Geared reducer: Boneng or Dongli(joint venture) |
Remark: Skirt edge belt with longer lifetime and more difficult to wear.
|
|||
3 |
Collective belt svrew conveyor and slant (feeding) belt conveyor
|
1set for each |
Seamless high tenacity rubber belt and antiskid and rubber coating driven roller. Sweepers are mounted on both ends of belt, lower roller adopts anti seize structure to ensure good working condition. Belt width: ≥650mm Drive: Boneng or Dongli(joint venture) Capacity: ≥260t/h Japan NSK imported bearing |
II |
Cold aggregate drying system
|
||
1 |
Dryer (Stainless steel exterior insulation)
|
1 set | Diameter×L=Φ2750mm×9000mm |
4 sets of Boneng or Dongli axle-mounted geared motor(joint venture) | |||
Nsk imported bearing | |||
4 sets of friction wheel drive the drum body | |||
Integral thermal Insulation,stainless steel outside cover | |||
2 |
Burner
|
1set |
European brand EB, high pressure atomization Fuel type: diesel/mazut/LPG(natural gas) Max fuel spraying: ≤1800kg/h Ratio control: 1:10 Oil consumption: ≤6.5kg/t With one sensor to control emptying temperature |
