| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Nude packing on bulk ship |
| Delivery Time: | 2 month after received down payment |
| Supply Ability: | 12 sets per month |
| Rated Production: | 240 Ton Per Hour | Type: | Ready Product Bin By-side |
|---|---|---|---|
| Mixer: | 3000kg Per Batch | Powder Tank: | 50CBM |
| Waste Powder: | 30t/h Hopper Type | Air Compressor: | Screw Type 0.6~.7Mpa |
| Dryer Cylinder: | 9000*2750mm | PLC: | Mitsubishi |
| High Light: | asphalt batch plant,dry batching plant |
||
260tph conveying belt 45KW burner fan, asphalt batching plant 875L / min bitumen pump

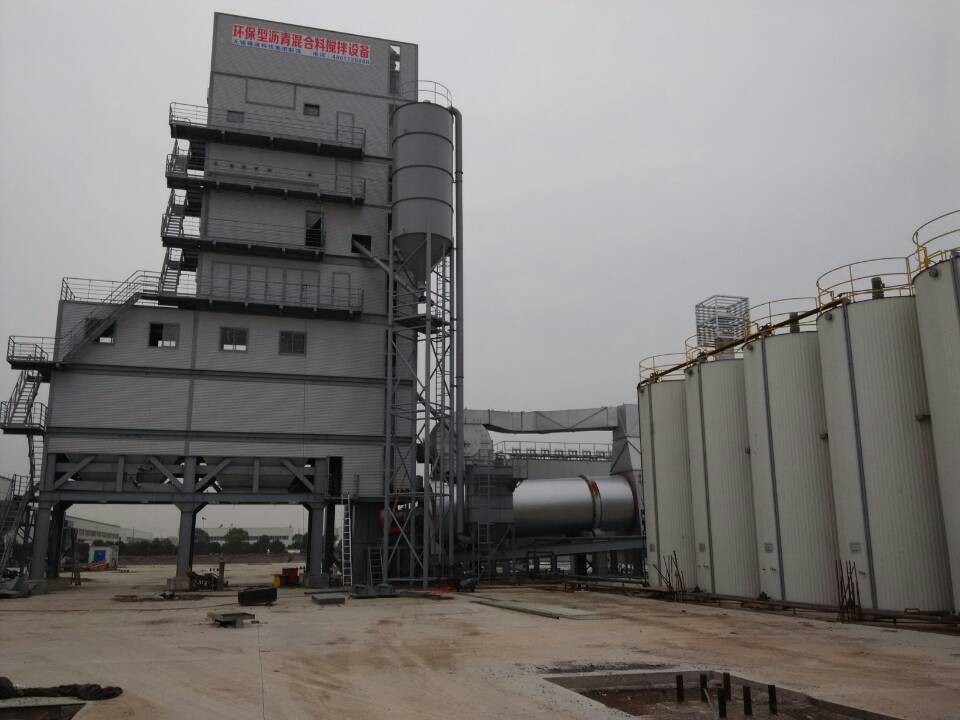

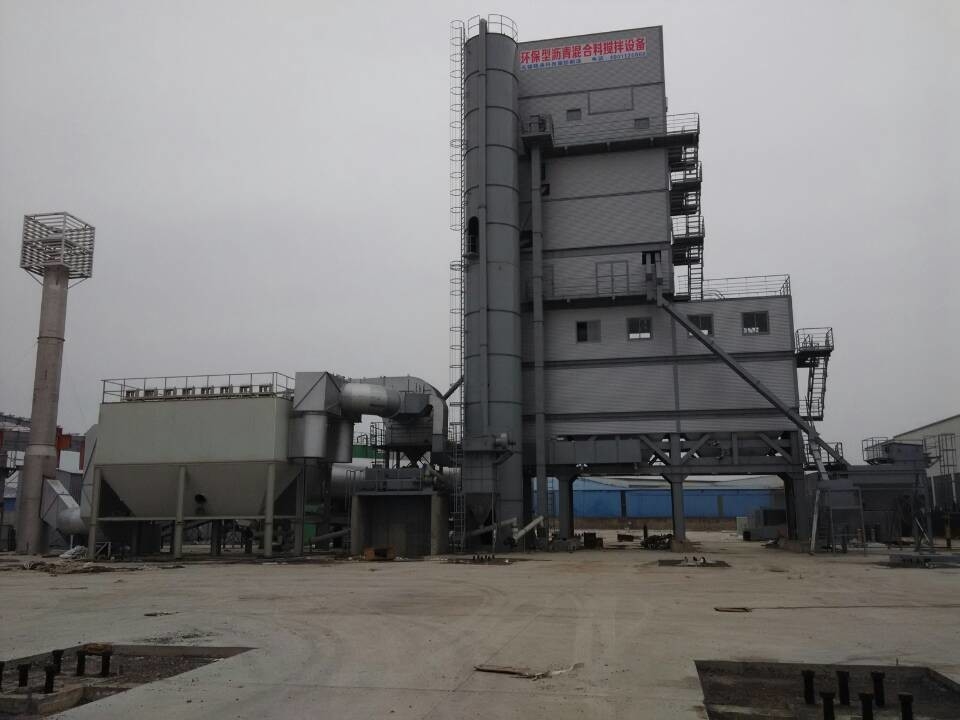

Item:QLB-3000 type asphalt mixing plant
productivity:max 240t/h(under rated condition)
Usage:Suit to produce each grade asphalt materials.
Deliver time: 45-60 days after contract became effective
Type: Module portable type, batch type
Delivery attached documentation: Foundation drawing/ circuit diagram,spare parts and tools
1.Offer of asphaltt mixing plant above could be either based FOB or CIF.
2. Guarantee terms: The product quality “Three guarantee” period is one year, if equipment has some trouble during the quality assurance period, the maintenance operator(s) should come to the site after informed by the buyer to settle all troubles occurred by equipment or other cause free of charge. In case of some parts break down(such as motors or reducers), which fail to ensure normal running of equipment, parts for replacement will send asap via airway.
The product will have lifelong paid service after the quality assurance period, and free of engineering service fee. Provide lifelong technical support for the equipment
3.Other remarks: Within the time of warranties, the seller will send the engineers to guide to install the machine,return air tickets should be charged by buyer, the buyer should be responsible for the engineer’s travel expense, visa fee and accommodation abroad. Installation, test and trial run of asphalt plant should be finished within 45 days for free, if extra time is necessary; the buyer shall also pay extra US$80 for per technician per day. And the seller will provide the Instruction Manual with Chinese and English Versions and the Foundation Drawings.
| I | Mixing tower | ||
| 1 |
Vibration Screen(Double shaft 5 layers ) Sieving Capacity: 260t/h Sieving area: 36m2 Bore Dia. : 3×3,6×6,11×11,19×19,30×30 |
1set |
Inspection door is equipped for maintenance and changing screen meshwork Cold riveting process against deformation and crack; beam made by special mould to ensure geometric accuracy; CNC made eccentric block against transverse vibration Japan NSK imported bearing |
| 2 | Hot aggregate bin(5 units with total capacity 80T) | 1set | Color steel insulation, damped rotation type level indicator,50mm rock wool, with wear prevention baffle, inspection hole and overflow pipeline |
| 3 | Aggregate weighing | 1set |
USA Toledo sensor,3500kg/batch USA Toledo sensor,600kg/batch USA Toledo sensor,300kg/batch |
| 4 | Filler weighing | 1set | |
| 5 | Asphalt weighing | 1set | |
| 6 |
Screw conveyor
|
1set |
Filler weighing to mixing tank(Italia WAM) Cross the whole mixing tank and evenly spray into tank for max mixing speed |
| 7 |
Mixing tank (WAM filler screw distributor and mixing arm )
|
1set |
Double-reducer drive Mixing system:capacity 3000kg/batch,rated cycle 45 second,Boneng or Dongli brand reducer(Joint venture) |
| 8 | Electronic scale | 3 sets | For weighing of aggregate, filler and asphalt , Japan Chimei(PT650 see attach diagram) |
| 9 | Main Frame Equipped With Platform, Ladder and Guard Railing | 1set | |
