| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB-Y |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Nude Packing |
| Delivery Time: | negotiation /3 month after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Product Name: | Full Mobile Asphalt Mixing Plant | Type: | Mobile/portable/movable |
|---|---|---|---|
| Capacity: | 160ton | Manufacturing Peroid: | 3 Month |
| Ready Silo: | 80T | Assembling Duration: | 5~7 Days |
| Moving Form: | Chassis&wheel | Units: | 8 |
| High Light: | mobile batching plant,Mobile Hot Mix Plant |
||

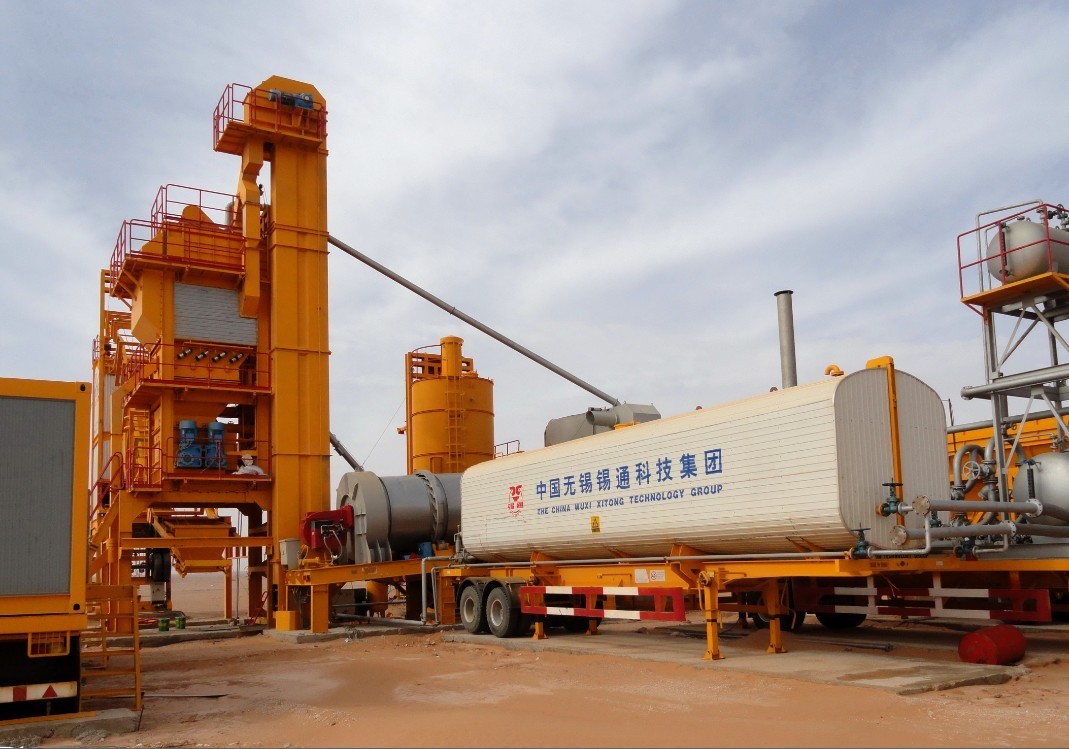

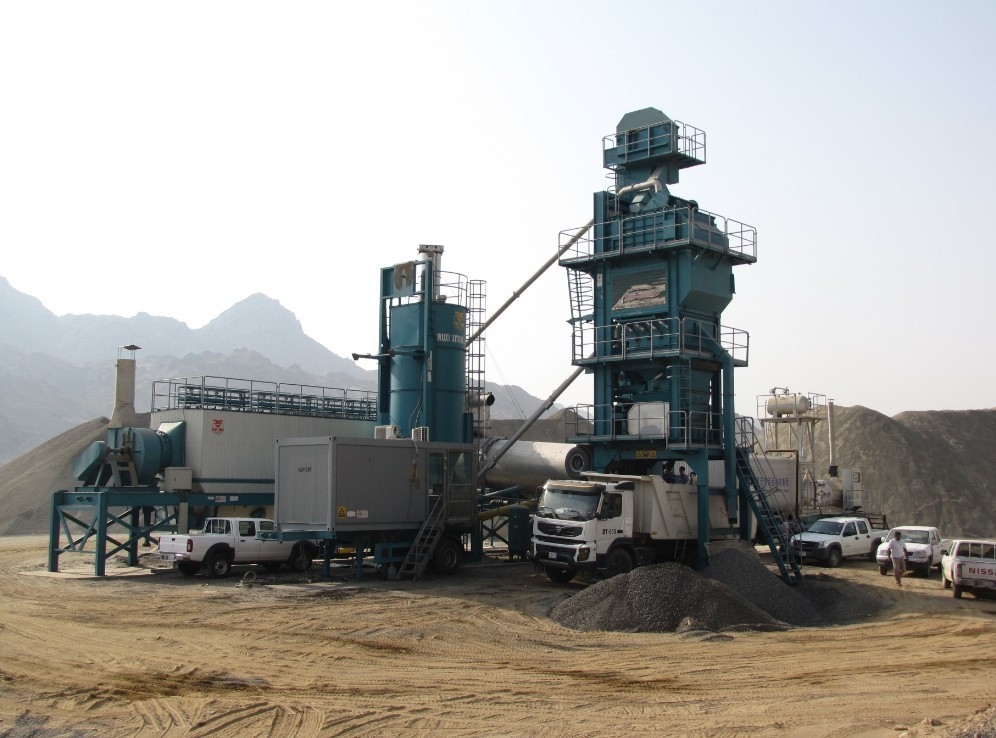

80T storage bin 160tph batch type full mobile asphalt mixing plant driven by tow truck
Description of mixing tower mobile unit
1.0 Mixing building (mobile system )
Vibration screen, hot aggregate material bin and weighing system and mixing tank are mounted on the semi-trailer.
1.1 Vibration screen
The activator driven by double vibrating motor runs directly. Wide inspection door at side of the vibration screen is easy for maintenance and changing screen meshwork.
Screen layer: 4 layers
Sieving capacity: 180t/h
Drive power: 2×3.8kw
Hole dia. of screen: 6×6, 11×11, 19×19,30×30
Please note in the order if special requirement is needed.
1.2 Hot aggregate powder bins
The hot aggregate powder bins is heat preservation with 50mm rock cotton, the wall side is covered with tunnel color steel, reduce temperature is difficult for hot aggregate powder in the short time, it’s suitable for ground construction requirement. Every bin had the continued hopper feeder, to detect the full positioning condition in the real-time, and control the positioning condition by computer, each bins had the inspection hole separately, and overflow aggregate powder leads into bins by guidance pipeline.
The hot aggregate powder is stored in 4 pieces of hot aggregate powder bins, and one directly discharging door, and the total capacity is about25t.
Specification
QLB-Y series mobile asphalt mixing plant
| Units' name | Type | Tansportation | Deimension |
| Cold Feeder System | Movable | Bulk ship | 15500×2500×4500 |
| Aggregate drying & heating system(including Hot Elevator) | Movable | Bulk ship | 16000×3350×4400 |
| Mixing Tower(including Aggregate Vibrating and screening system and material Weighting System ) | Movable | Bulk ship | 14000×2800×4500 |
| Volute casing collector and Bag filtering System | Movable | Bulk ship | 15200×3000×4500 |
| Filler Storage System | Movable | Bulk ship | 10000×3000×4200 |
| Asphalt heating and storage System | Movable | Bulk ship | 12200×2500×4200 |
| Ready propduct silo(Optional) | Movable | Bulk ship | 16000×3000×5350 |
| Control room | Movable | Bulk ship | 6500×2500×4200 |
