| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB-Y |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Nude Packing |
| Delivery Time: | negotiation /3 month after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Product Name: | Full Mobile Asphalt Mixing Plant | Cold Hopper NO.: | 4 |
|---|---|---|---|
| Capacity Output: | 160t/h | Heating Method: | Heat Exchange By Heat Transer Oil |
| Sieving Layer: | 4 Decks | Mobile Units: | 7 |
| Moving Form: | Chassis&wheel | Drive: | Semi-trailer Towing Vehicle |
| High Light: | mobile batching plant,mobile asphalt drum mix plant |
||

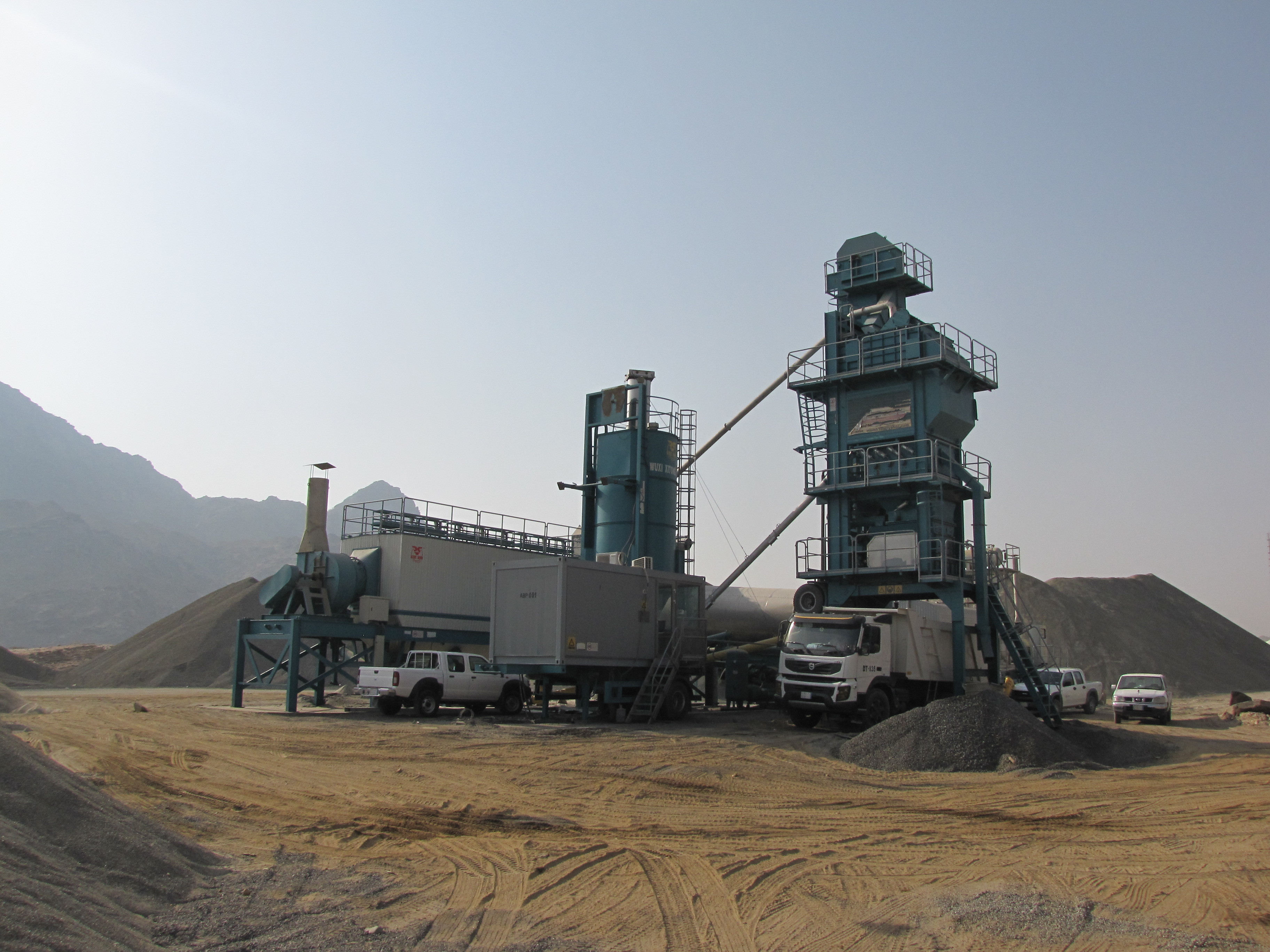

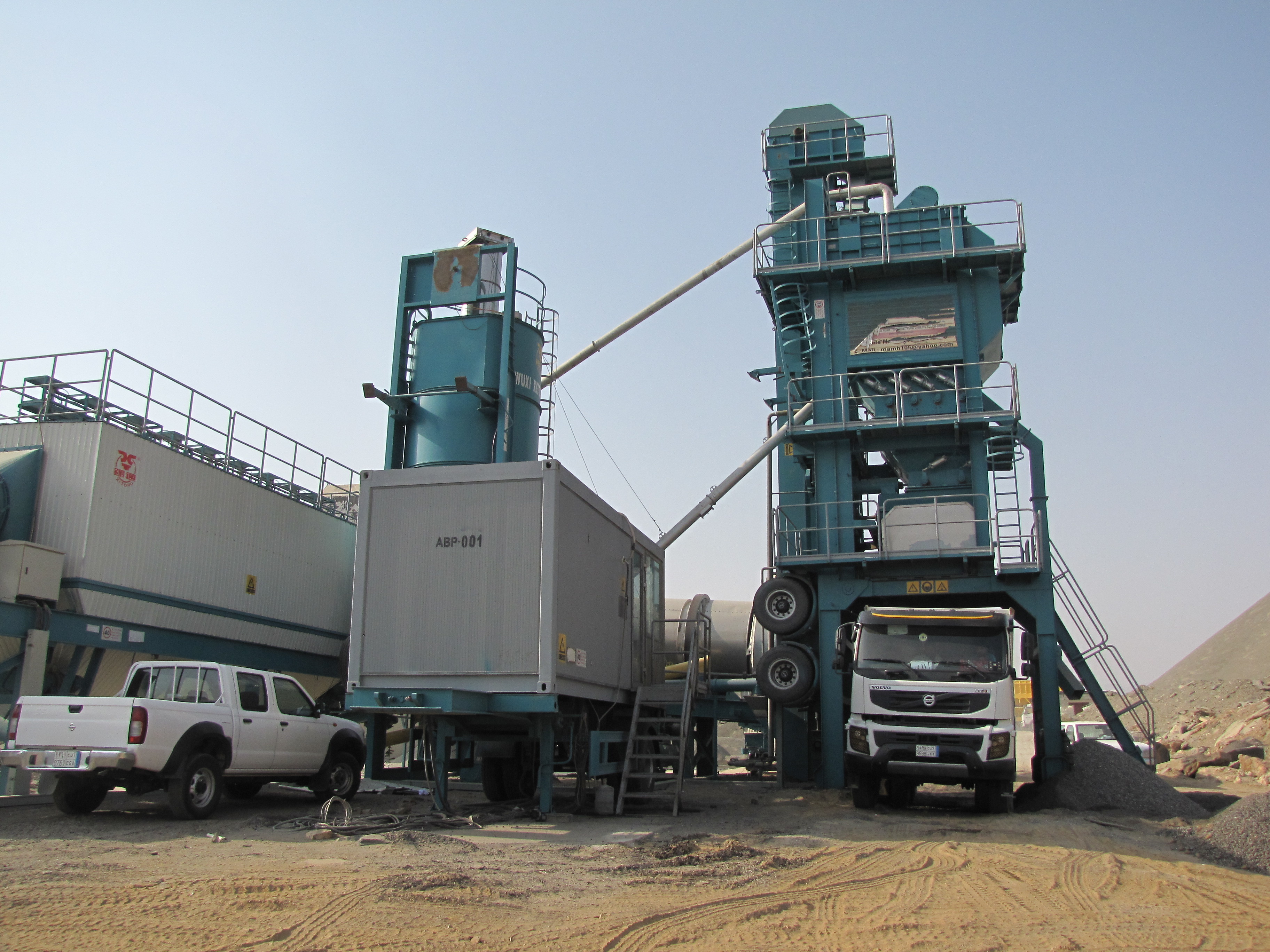

800mm conveying belt width mobile asphalt mixing plant with high pressure atomizing burnerer
Description of mobile mixing station unit
Description of mixing tank
1, Mixing tank
The double vortex mixing tank will reach to a optimum mixing effect, mixing arm, blade and lining are made of special anti-frication cast steel, all linings are bolted outside of the tank, easy for maintenance and change, the flexible connector is mounted between the drive system and the mixing shaft, to prevent unexpected damage. Every connector is fixed by two sets of bearings, and two connectors are synchronizing operation by the oil bathing gear wheel. Full open arch discharging door can discharge finished material rapidly, so it can shorten the mixing time.
Type
*Double-shaft vane forced mixer
*Mixing capacity: 2000kg
*Mixing time(s): 45-50s
*Drive: Tilting gear speed reducer
*Power: 37kw×2 sets
*Lining: High chrome alloy cast steel with high strength: Life time≥100,000tons mixture
*Blade: High chrome alloy cast steel with high strength: Life time≥100,000tons mixture
2 Air supply equipment(air system power)
Spiral type compressor with compressed air storage, and compressed air should supply the whole mixing building.
Exhaust displacement: 2 m3/min
Pressure: 0.6~0.7Mpa
Motor power: 15kw
Accumulator volume: 0.6 m3
Our advantage:
Technology
Optimal design for either economic transportation and modularized assembling orinstallation.
Modern concept of remote diagnose and monitoring based on "Internet of Things" provides realtime service, which largely same time and energy.
30-year asphalt plant experience of manufacturing and spirit of maintaining innovation.
Performance
Precise batching as per fomula makes finished mixture quality more sable.
User friend controlling interface makes production process more interesting and acceptable.
Control system supports multi-language, which enhances user experiences.
Specification
QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form
| Name | Specification | |||
| Model NO. | 500 | 1000 | 1500 | 2000 |
| Rated productivity | 40t/h | 80t/h | 120t/h | 160t/h |
| Volume/number of cold bin | 8m3/3 | 8m3/4 | 10m3/4 | 10m3/4 |
| Moving type | Vehicle chassis | |||
| Fuel | Diesel/heavy oil/LPG | |||
| Volume hot silo | 15t/ | 20t | 25t | 25t |
| Number of hot silo | 4 | 4 | 4 | 4 |
| Volume of filler tank | 20m3 | 30m3 | ||
| Capacity per batch | 600 | 1000 | 1500 | 2000 |
| Volume of asphalt tank | 20m3 | 20m3 | 30m3 | 30 m3 |
| Number of asphalt tank | 2 | 2 | 2 | 2 |
| Number of mobile unit | 4 | 7 | 7 | 7 |
| Total power(KW) | 160 | 200 | 310 | 356 |
| Dust removing mode | 2-step dust collecting | |||
| Dust removing effect | Less than 30mg/Nm3 Ringe-Imann | |||
