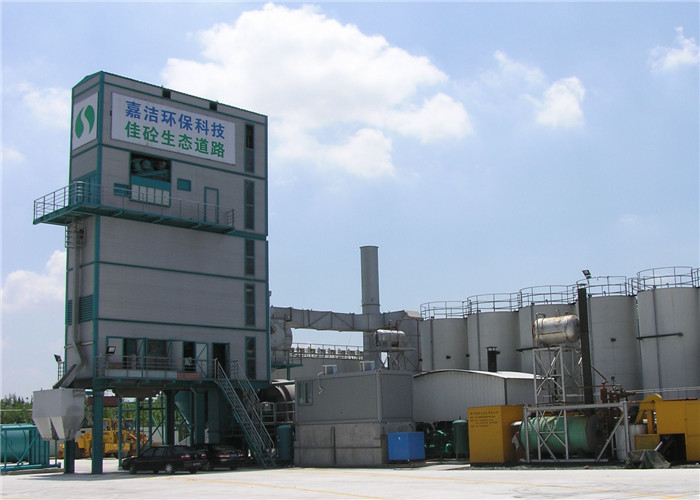

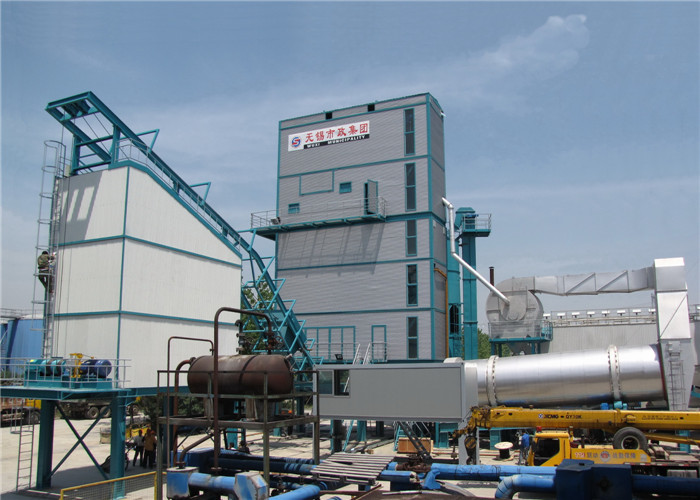

Full green type asphalt mixing equipment with heat and sound insulation and PM 5.28mg/m3
Descrition of environmental index of Xitong environmental protection asphalt batching plant
Xitong people assume the risks, dare to innovate. After six years of continuous innovation, attempt and improvement, Xitong got mature dust and asphalt fume processing technology with independent intellectual property rights, and launched in 2014 a complete QLB-H series of environmentally friendly asphalt mixing equipment, and in May 2015 formally put into use, after the test of practice, the equipment made a breakthrough in the fight against dust and asphalt fume pollution, and truly became a clean, smoke-free, tasteless smart green product. Specific measures are as follows:
Pollution control measures
1, Discharge point----Gravel quarry, vehicle operation area pavement------ Dry fog dust removal system makes dust settling; vehicle operation area regularly watering; ground hardened, strengthen job management, not allowed sprinkling
2, Asphalt mixing plant----Adopt fully environmental protection asphalt mixing plant, unorganized emission turned to organized emission with the help of dust cleaner. Environmental protection measures of the equipment please refer to environmental device introduction.
3, Waste material discharging----Adopt waste material wet treatment device or discharge to the tanker.
4, Asphalt unloading area and asphalt tank---- Adopt asphalt fume purifying machine, release the purified fume to the furnace chimney.
5, Finished material loading area----adopt closed channel for collecting asphalt fume, purified fume by the purifying machine will be burn in the dryer, then release 20meters to the ground.
Integrated emission standard of air pollutants
Pollutant |
Maximum emission concentration(mg/m3) |
Maximum allowable emission rate(kg/h) |
Unorganized emissions monitoring concentration limit |
Exhaust funnel height |
Second level |
Monitoring point |
Concentration (mg/m3) |
Particulate matter |
120 |
15 |
3.5 |
The boundary highest concentration point |
1.0 |
Asphalt fume |
75 |
15 |
0.18 |
Production equipment no obvious presence of unorganized emissions |
BaP |
0.30×10-4 |
15 |
0.03×10-4 |
0.008×10-3 |
NMHC |
120 |
15 |
10 |
4.0 |
| Name |
Specification |
| Model QLB-H environmental –protection type |
QLB-H2000 |
QLB-H 3000 |
QLB-H 4000 |
QLB-H5000 |
| Rated productivity |
160t/h |
240t/h |
320t/h |
400t/h |
| Volume/number of cold bin |
10m3/5 |
12m3/5 |
16m3/6 |
16m3/6 |
| Dust collect type |
Air back flush |
| Dust collect result |
No more than 30mg/Nm3 Ringe-Imann grade 1 |
| Fuel |
Diesel/heavy oil/coal powder |
Diesel/heavy oil |
| Volume/number of hot bin |
50t/5 |
80t/5 |
95t/6 |
95t/6 |
| Precision of aggregate metering |
Less than ±1.0% |
Less than ±0.5% |
| Precision of powder metering |
Less than ±1.0% |
| Precision of asphalt metering |
Less than ±0.5% |
| Mixer ability KG/batch |
2000 |
3000 |
4000 |
5000 |
| Volume/number of asphalt tank |
50m3/2 |
50m3/4 |
30m3/4 |
30 m3/5 |
| Finished product bin volume(T) |
120 |
160 |
220 |
220 |
| Total power(KW) |
475 |
690 |
910 |
990 |
| Control system |
Full auto computer control(PLC+LED+mouse)
|
