| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB-HX |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Nude packing on bulk ship |
| Delivery Time: | 2 month after received down payment |
| Supply Ability: | 12 sets per month |
| Product Name: | Full Environmental Type Asphalt Mixng Equipment | Batch Capacity: | 3000KG |
|---|---|---|---|
| Finished Warehouse: | 120T | Heat Insulation: | Rock Wool 80mm |
| (Waste)Filler: | 50+50 | Screw Compressor: | XNB-30G |
| Mixing Interval: | 45 Second | Precipitating Efficiency: | More Than 95% |
| High Light: | bitumen production plant,asphalt processing plant |
||

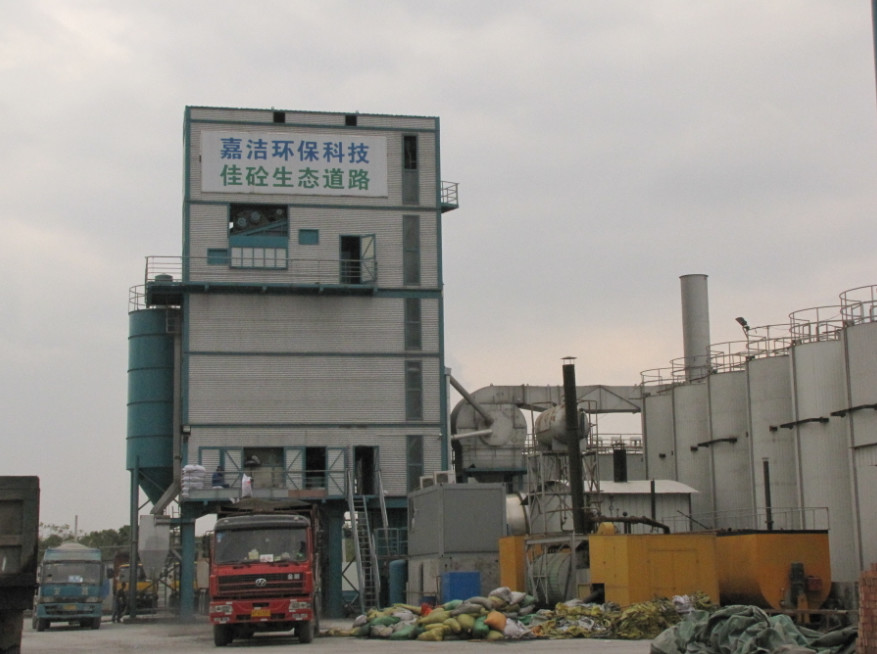

Environment friendly asphalt mixing machine with temperature ≤5℃ within 12 hours for 120t finished bin
Process chart of asphalt waste gas purifying machine
Industrial waste gas -washing tower cleaning device -purifying –pretreatment filtrating device-purifying-plasma purifying device-purifying-multiple plasma purifying-purifying-active catalytic oxidation apparatus-purifying-draft fan discharging-qualified air
Ⅲ Noise treatment
Typically asphalt mixing equipment noise source is produced by the following main parts : Burner air inlet, aggregate falling after screening impacts the hopper, waste overflow slides (special waste materials), and noise issued by the vibration impact when operating due to bad accuracy of manufacturing, sounds made when centrifugal elevator unloading .
Xitong QLB-H series of environmental protection equipment uses the following measures to enable the device to operate in a minimum noise status:
1, Drums, draft fan adopt acoustic treatment;
2, Aggregate silo outer wall adds an insulation layer;
3, Waste overflow pipe is covered with insulation layer;
4, Precision manufacturing, sieve is cut by laser cutting machine, of high precision; Eccentric block molding adopts CNC wire cutting equipment to ensure uniform shape and consistent weight.
Each Xitong made vibrating screen at run time, hardly any sounds on the ground can be heard.
5, Gravity discharge mode (double plate link chain), smooth running, and no aggregate impact sounds.

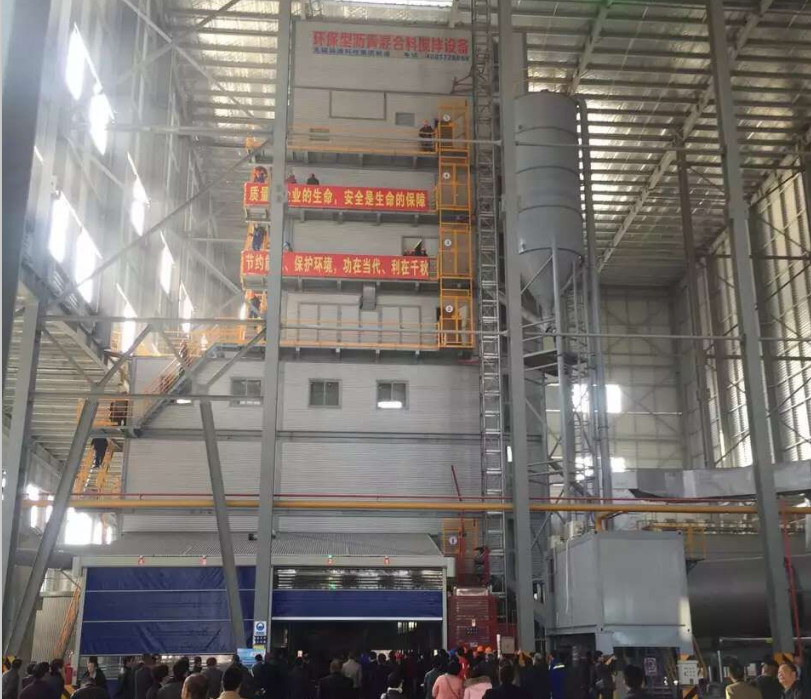

6, The main building is a fully enclosed structure, internal vibrating screen, hot hopper, weighing hoppers, aggregate elevator and mixing tank outer walls all not also adopt insulation layer, but also soundproof.
Main pollutants generated and estimated emission situation of equipments
| Emission point | Pollutant | Produced volume before treatment | Discharged volume after treatment | ||
| Annual emission | Emission rate | Emission concentration | |||
| Gravel quarry, vehicle operation area pavement | Dust | 2500t/a | 2t/a | 2 kg/h | 20mg/m3 |
| Asphalt batching plant | |||||
| Asphalt unloading area, asphalt tank area, finished mixture loading area | Asphalt fume | 0.279t/a | 0.0007 t/a | 0.00056kg/h | 0.056mg/m3 |
| BaP | 0.0015t/a | 3.75×10-6 t/a | 0.03×10-4kg/h | 0.30×10-4mg/m3 | |
| NMHC | 1.2t/a | 0.003 t/a | 0.00024kg/h | 0.024mg/m3 | |
| Burner | Fume | 3679×104Nm3 | 3679×104Nm3 | － | |
| SO2 | 0.108 t/a | 0.108 t/a | 2.9mg/m3 | ||
| NOX | 5.052 t/a | 5.052 t/a | 137.3mg/m3 | ||
| Mixing equoipment, operation vehicles | Noise |
Factory boundary: Daytime 65 dB Nighttime 55 dB |
Factory boundary Daytime 65 dB; Nighttime 55 dB |
||
