Mineral Wool Insulation Mobile Asphalt Mixing Plant 4kw Filler Conveyor 2000KG

80mm mineral wool insulation mobile asphalt plant 4kw filler conveyor 25.7CBM bitumen pump

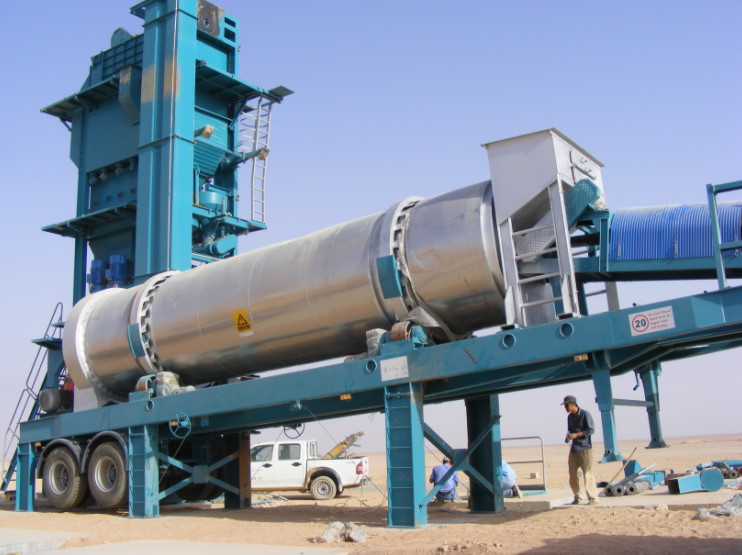

Mixing tower description of mobile asphalt batching plant

After dryer drying the aggregate, it would be conveyred onto the vibrating screen where the material is graded and delivered into the individual compartments of the hot stone storage bins.Oversize material rejected by the top deck of the screen is passed to a reject chute at the end of the mixing and screening section.

The filler is loaded into the silo and with the binder supply in circulation, the plant is ready for batch production. From a control cabin the operator controls the flow of material according to the specification required. Aggregate is discharged to the batch weigh hopper from the storage bins and weighed. The material from the batch weigh hopper is then discharged into a fulty enclosed batch elevator and conveyed to the Mixer. Filler is added from thefiller silo through a filler weigh hopper adjacent to the  Mixer. Bitumen also is weighed Into a  Weigh Tank adjacent to the Mixer.Aggregate is passed into the  Mixer for
preset dry mixing time after which bitumen is added and mixing continues for the necessary
wet mix period until the batch is ready for discharge into the transporter(trolley) sited below the discharge doors of the Mixer. Provision is made for filler to be added before or after bitumen according to requirements.

PART I:TERMS & CONDITIONS:

1. Delivery Terms: FOB Shanghai-CHINA;
2. Delivery times: 80 days after the receipt of deposit;
3. Quotation Validity: 30 days ;
4. Origin Place: Wuxi,Jiangsu, China.
5. Minimum Order: 1 Set

PART II: STANDARD WORKING CONDITIONS

------NAME: MOBILE ASPHALT MIXING PLANT

------MODEL: QLB-Y2000 (2000kg/Batch)

------PERFORMANCE STANDARDS: JT/T 270-2002 Forced Intermittent Asphalt Mixing Plant

Specification

QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form
