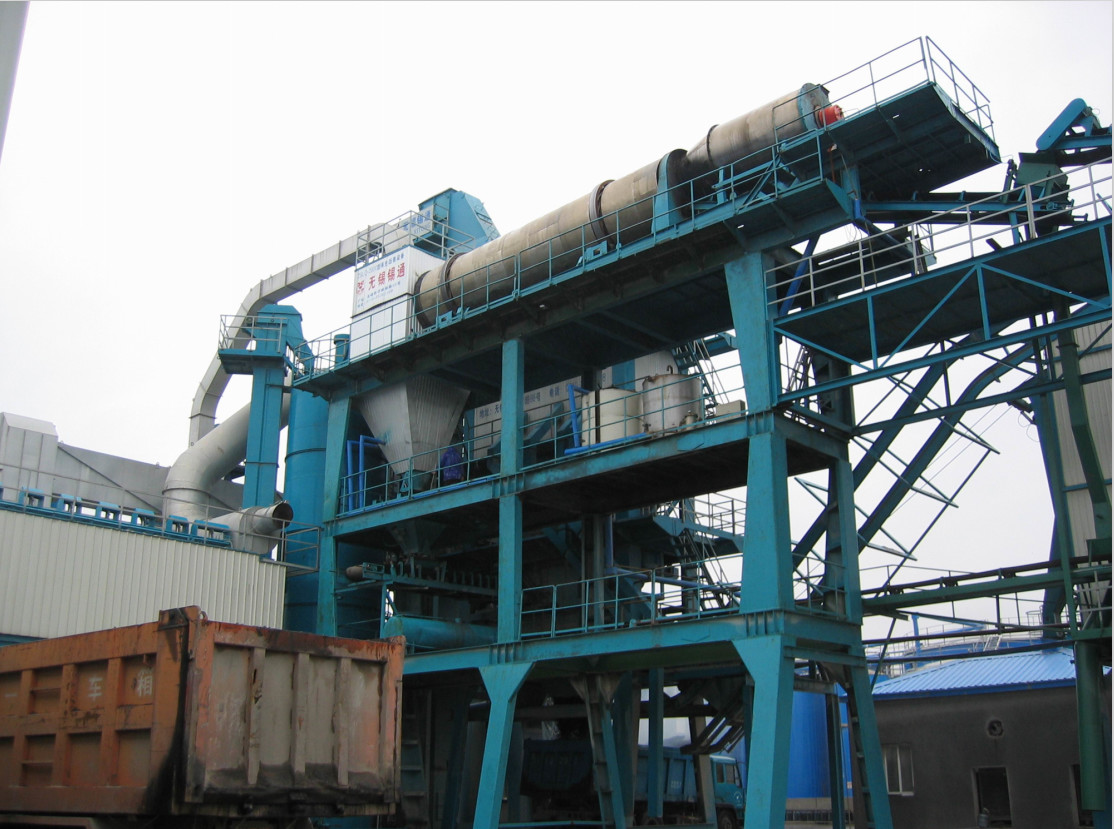

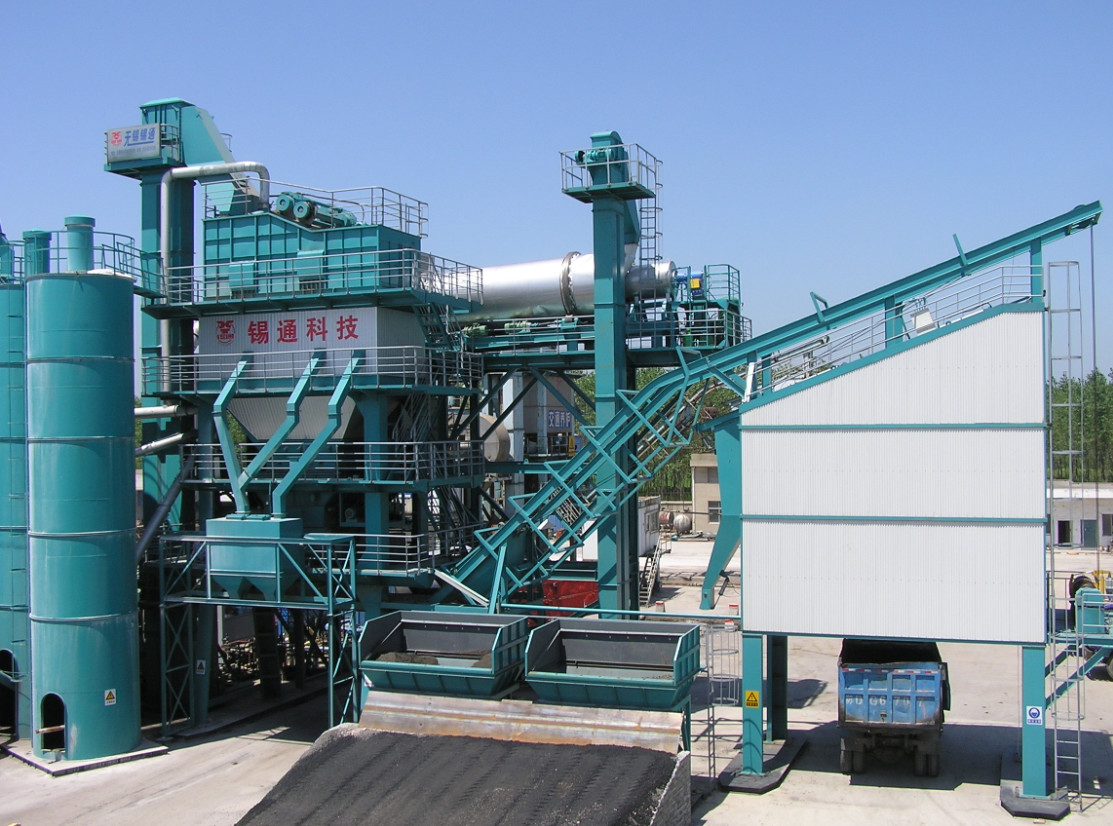

11KW for centrifugal discharging hot hoister asphalt recycling plant with 1500kg weighing barrel
1.0 Hoist
The tension device is located at the bottom of the hoist, the hoist hopper edge equipped with the wearable lining, and wide platform mounted at the top of the hoist, which is easy for maintenance.
It is with reverse-gear.
Type: double-chain, Gravity discharging
Lifting capacity: 130t/h
Power: 11kw
2.0 Old material dryer system
2.1 Dryer
The dryer is made of heat-resisting and high-abrasive steel plates. All sorts of lifting plates in it are suitable for the transportation of different aggregate powder. Good heat exchanging burner flame area & blanking area have lifting guidance plate. Dryer body is covered with heat-proof layer outside with stainless steel plate; The foundation is made of heavy steel. Dryer body is driven by 4 groups of separate friction wheels and each group is equipped with separate speed reducer and motor.
Parameter : 2200*9000MM
Power : 4×7.5kw
2.2 Burner
Brand: Italy, EBICO
Type: EC6NQR(light/heavy/residual oil)
Structure : Main burner, Nozzle, Heater, Blower, PLC Control
Fuel atomized type: Low pressure oil supplying, medium atomizing
Ignition type: Electronic ignition, jet gun ignition and liquefied gas ignition
Fuel type: Diesel oil, heavy oil, residual oil
Oil consumption: ≤850kg/h
Ratio : 1:10
Oil mass adjustment: Long-range auto adjustment as setting temperature parameter
Oil pump pressure: ratio control; automatic adjustment
Oil pump (made in China): 1.5kw
Air supply: 1.17Nm3/min
Electric heater: 20kw
Motor power of blower: 22kw
2.3 Oil supply system
It is equipped with one set heavy/ diesel oil auto switching device, oil filter
and relay pump.
24 Heat blower
It is made of heat steel, and fire proof material inside; heat preservation outside with steel stainless plate.
2.5 Discharge box
It adopts square closed discharging box, with heat preservation material outside; special clapboard packing adopts.
Item:ZSLQ-120 Hot RAP Additional Equipment
Usage: Fit for QLB2500~3000 model asphalt mixing plant, suit to recycle waste asphalt mixture.
Delivery time: 60 days after contract becomes effective (subject to the contract).
Scope of supply:
| No. |
Name |
Qty |
Remark |
| I |
Aggregate Supply System |
| 1 |
Ground hopper(with wall vibrator) |
2sets |
United type, with empty hopper alarm device |
| 2 |
Belt Feeder |
2sets |
Frequency converter |
| 3 |
Collective Belt Conveyer |
1set |
|
| II |
RAP Hoist System |
| 1 |
Hot RAP material hoister |
1set |
|
| III |
Aggregate Heating System |
| 1 |
Dryer(Friction drive) |
1set |
Stainless steel cover outside for heat preservation |
| 2 |
Burner(diesel and heavy oil) |
1set |
EBICO, Italy
|
| 3 |
Heat blower |
1set |
|
| IV |
Storage and Metering System |
| 1 |
4.5t storage bin |
1pc
|
American sensor, Japanese electrical scale |
| 2 |
Weighing hopper |
1pc |
|
| 3 |
Hot RAP conveyer |
1set |
|
| V |
Duct Collecting System |
| 1 |
Draught fan |
1set |
Motorized Control Damper |
| 2 |
Flue gas duct |
1set |
|
| VI |
Main Frame |
| 1 |
Main Frame Equipped With Platform, Ladder, Handrail and Guard Railing |
1set |
|
| VII |
Pneumatic Control System |
| 1 |
Pneumatic component |
1set |
SDPC |
| |
Electrical Control System |
| 2 |
Computer control system |
|
MITSUBISHI PLC |
