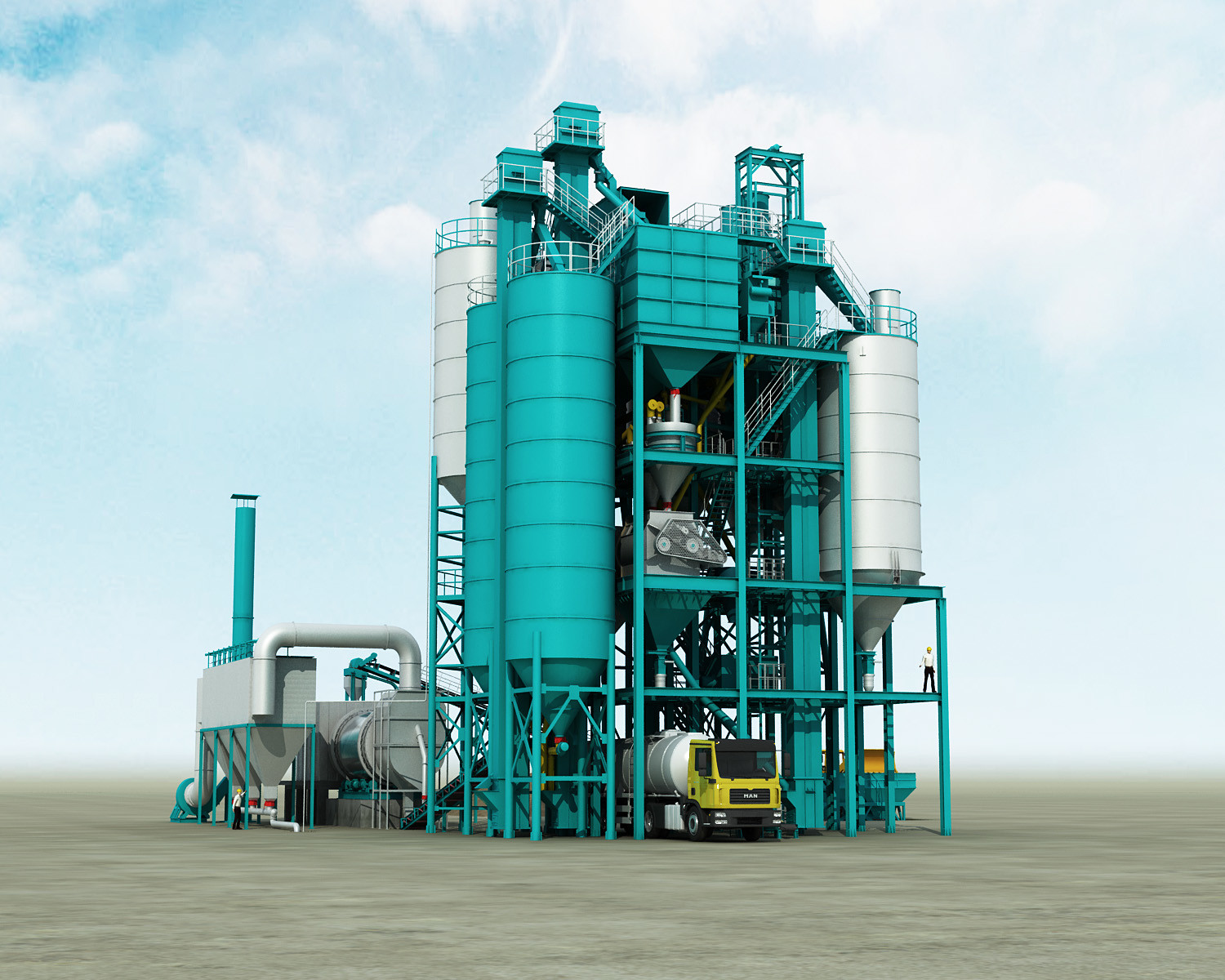

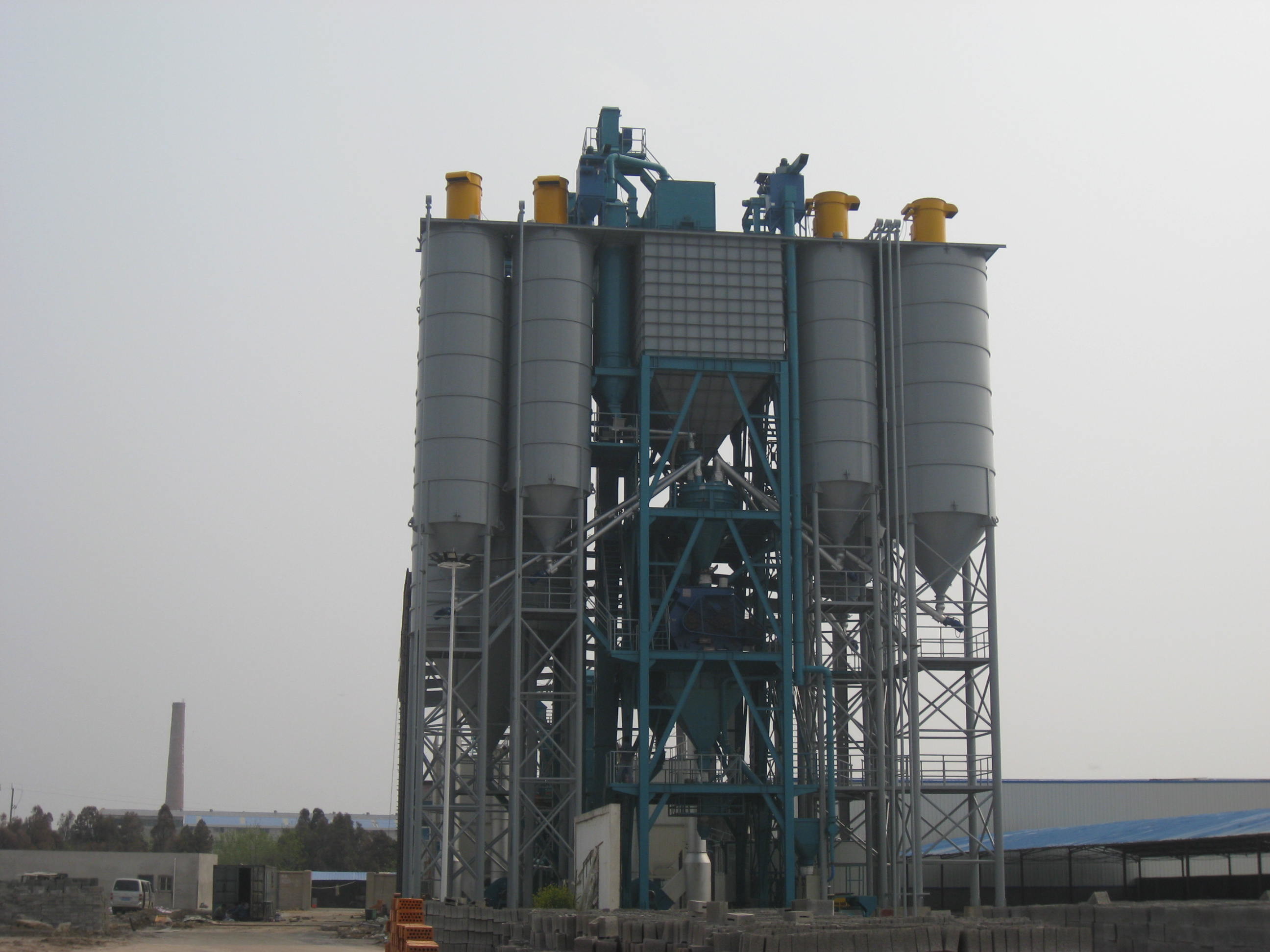

0.5 ~ 0.6 Mixer Load Factor Dry Mortar Mixing Plant , 1.5T Proportion Mortar Mixer Machine

0.5~0.6 mixer load factor dry mix mortar plant with proportion 1.5T proportion for pre-mixed mortar

Sub-System introduction

LDH coulter type mixer

This type of machine is composed of transmission mechanism, horizontal cylinder, coulter and fly-cutter: driven by coulter, material will make convection moving along cylinder wall, when touches high speed fly-cutter, it will scattered to mixing evenly in very short time. The mixer can specially satisfy mixing of sticky and colloidal additive.

Main characteristics:

1. Different kinds of axle sealer are installed at bearing ends, which can be cleaned by air or nitrogen.
2. Equal attitude discharge valve
3. Short mixing time(1-4min)
4. Max. mixing homogeneity
5. Unexceptionable batch reproducibility
6. Min. abrasion-min. maintenance
7. Easy adjustment and replacement
8. All components in mixer could be expediently cleaned.

WZ advanced double shaft blade mixer

Main characteristics:

1. This machine has a wide selection for mixing material, specially for material that has large difference in specific gravity(proportion) and particle size, so it improves some disadvantages other than some mixers to get higher accuracy of mixture.
2. high mixing precision, when Solid/Solid mixing at ratio of 1:1000, its standard deviation is 3~8/100000(0.003~0.000%), coefficient of variation of mixing CV is 3-4%

1. Fast mixing speed, normal filler’s reaching CV 3-4% only takes 1~3 minutes
2. Mixing process is smooth and won’t change or break original physical state of material
3. Filling amount/feeding amount has a large variable range, which is 0.2~0.6
4. Operation in a sealing and smooth condition, with low noise and dust concentration, which is good to environment.
5. Base on unit Product, the equipment is low energy consumption type

Compact structure saving room and space, easy to install ,use and maintain.
