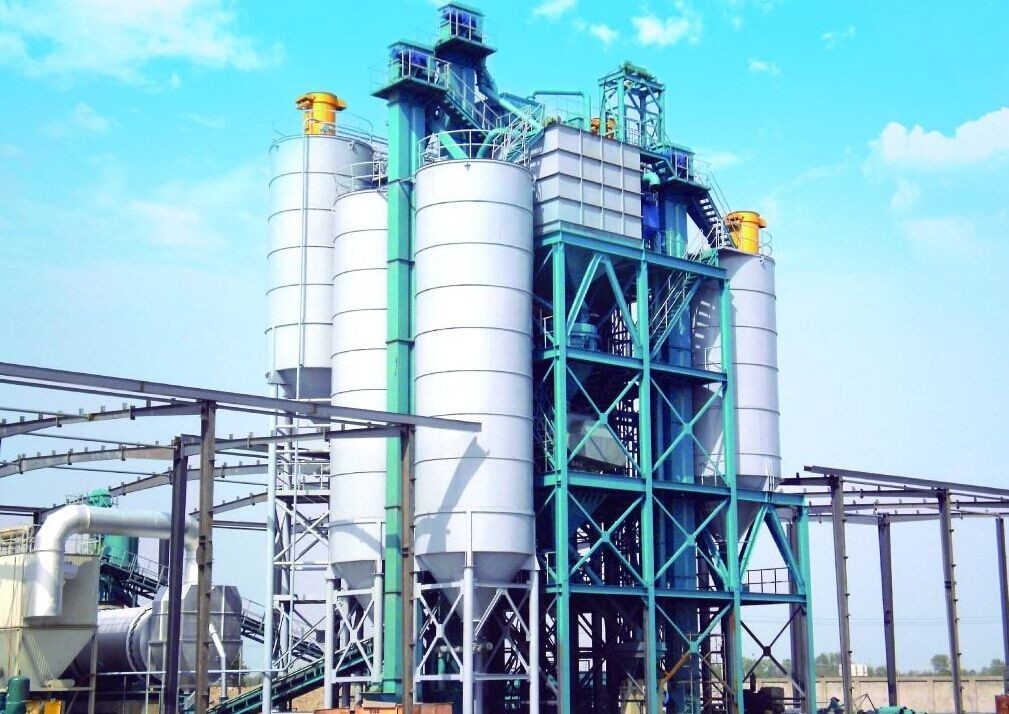

Above 70% Dryer Self - Insulation Efficiency Dry Mix Mortar Plant 65t / H Mixing Capacity

Above 70% dryer Self-insulation efficiency dry mix mortar plant with 65t/h mixing capacity

Kinds of mortar

1. Masonry mortar
2. Thin and smooth wall mortar
3.  Hand-plastering screeding mortar
4.  Colored coating mortar
5.  Water-proof mortar
6.  Plaster powder
7.  Wall plastering mortar
8. Ceramic tile adhesive mortar
9.  Self-leveling mortar
10.  Heat-preservation mortar
11. Masonry mortar
12. Plastering mortar
13. Heated board matching mortar
14. gap filler mortar
15. Interface mortar

Sub-System introduction

I, Dust collecting system

1. Drying system of dusting collecting system adopt primary gravity dust collecting and secondary bag dust collecting method. Dust particle could be 100% recycled without pollution.
2.  Source of dust coming from any material during conveying is collected with different kind of dust collecting equipments, filter bag adopts imported material for high standard of dust removing, which can effectively control dust discharge to reach or exceed national environmental protection level standard.

II, Electrical control system

Electrical control system of Xitong brand dry mortar mixing plant adopts double pc sync control method, which is mainly composed of 2 sets of high stability IPC, Mitsubishi PLC, weighing unit from international famous brand and electrical components, through combination with professional control software of own intellectual property rights, it can realize auto running and production management.

In double pc sync control system of dry mortar mixing plant, 2 sets of computer realize control of whole production line synchronously or separately, when 1 of them breaks down, another could control on automatically without manual to finish production control and management without stop, which minimizes the chance of equipment shut down caused by IPC failure.

In batching process, control system would real-time display all kinds of data and operation and batching process in cartoon, with easy operation, friendly human-computer interface, reliable running, and high batching accuracy functions.

Main characteristics and partial functions of control system

1.  Set all kinds of recipe and save and self-check recipe data.
2. Set production and self-stop after finish.
3. Ratio control according to set recipe
4. Failure alarm and display cause
5. Self-stop batching if Sand weighing bin overweight
6. Sweeping actuator auto control for bag collector.
7. Sequence start-up and stop equipment
8. Mouse can control start-up and stop of each equipment without button operation.
9. Level indication and alarm of sand silo, filler silo, finished product silo and overflow silo
10. Be able to save production data, search and print out production data.
11. Self-compensation and weighing function
12. Twice-open-door control technology
13. Industrial Ethernet communication technology
