| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB-Y |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Nude Packing |
| Delivery Time: | negotiation /3 month after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Product Name: | Full Mobile Asphalt Mixing Plant | Type: | Mobile/portable/movable |
|---|---|---|---|
| Capacity: | 160ton | Manufacturing Peroid: | 3 Month |
| Model NO.: | QLB-Y2000 | Assembling Duration: | 5~7 Days |
| Moving Form: | Chassis&wheel | Units: | 8 |
| High Light: | mobile asphalt drum mix plant,Mobile Hot Mix Plant |
||

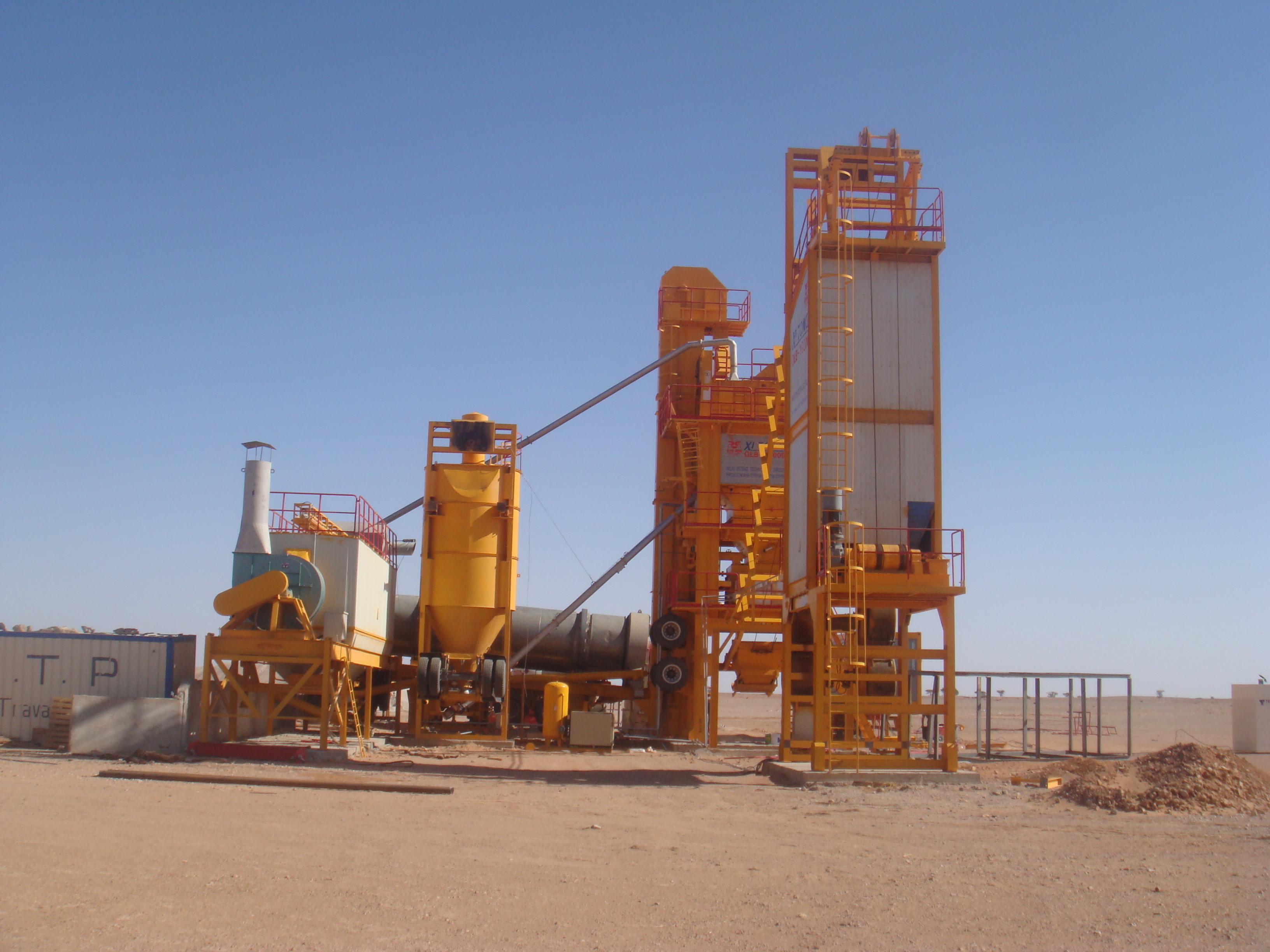

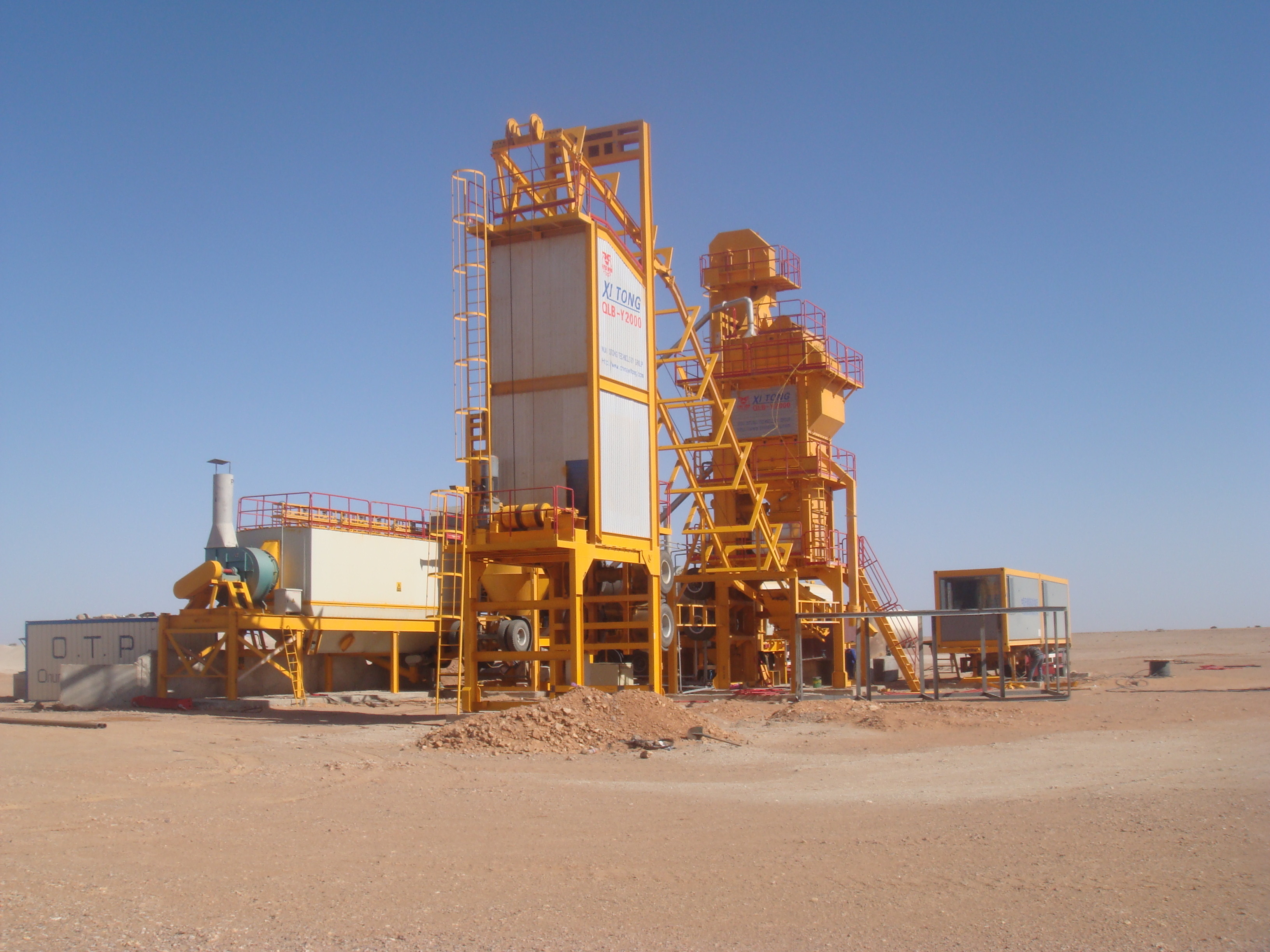

8 moving units 160t/h mobile asphalt mixing plant with 2 days' transition between sites
Description of drum dryer mobile unit
1.0 Dryer and burner(mobile system)
Transition conveyor,dryer,burner and stone material hoist are mounted on one semi-trailer.
1.1 Transition conveyor
Belt width: 800mm
Conveying capacity: 180t/h
Drive: Cycloidal pin gear speed reducer
Power: 3kw
1.2 Dryer
The dryer is made of heat-resisting and high-abrasive steel plates. All sorts of lifting plates in it are suitable for the transportation of different aggregate powder. Good heat exchanging burner flame area & blanking area have lifting guidance plate. Dryer body is covered with heat-proof layer outside with stainless steel plate; The foundation is made of heavy steel. Dryer body is driven by 4 groups of separate friction wheels and each group is equipped with separate speed reducer and motor.
Dryer length: 8860mm
Diameter: 2000 mm
Drive: hard gear speed reducer
Power: 4×11kw
Oil consumption: ≤6.5kg/t
| Blanking temperature | 160℃ | ||
| Water contents of cold sand material | ≤3% | ≤5% | ≤7% |
| Production capacity (t/h) | 180 | 160 | 135 |
1.3 Burner
Type: Furuida
Structure: Nozzle, Scale of blow & oil adjustor, Centrifugal blower, auto ignitionFuel atomized type: High pressure oil pump atomizer
Ignition type: high pressure electro spark, liquid gas, secondary auto ignition
Fuel type: Diesel oil
Max: igniting amount: 1000kg/h
Motor power of centrifugal shaft blower: 45kw
Motor power of pump: 5.5kw
Adjustment of oil mass: Long-range auto adjustment as setting temperature parameter
Adjustment of air flow: Multi-blade blower, auto adjustment
1.4Temperature sensor: one
It is mounted in the discharge chute of the dryer and used for control of burner auto flame.
1.5 Hot material hoist
The wearable liners are in feeding & blanking tilting channel, wide inspection door is easy for maintenance. The speed reducer including chain wheel & chain drives a row of heavy lifting chain, the tightener is at the bottom of the hoist, the hoist hopper edge equipped with
The wearable lining and wide platform mounted at the top of the hoist, which is easy for maintenance.
Type: Gravity discharging
Lifting capacity: 180 t/h
Power: 15kw
Drive: hard gear speed reducer
Specification
QLB-Y series mobile asphalt mixing plant
| Component | Deimension | Type | Packing |
| Cold Aggregate feeding System | 15500×2500×4500 | Portable | Nude |
| Aggregate drying &heating system(including Hot Aggregate Hoisting System) | 16000×3350×4400 | Portable | Nude |
| Mixing Tower Assembly(including Aggregate Vibration System and Aggregate, bitumen & filler Weighting System ) | 14000×2800×4500 | Portable | Nude |
| Gravity dust collecting and Bag filtering System | 15200×3000×4500 | Portable | Nude |
| Filler Supply System | 10000×3000×4200 | Portable | Nude |
| Asphalt heating System | 12200×2500×4200 | Portable | Nude |
| Finished product bin(Optional) | 10000×3000×4200 | Portable | Nude |
| Control room | 6500×2500×4200 | Portable | Nude |
