| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | 40HQ/GP |
| Delivery Time: | negotiation /2 month after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 8 set per month |
| Model No.: | QLB-2000 | Consumed Power: | 450KW |
|---|---|---|---|
| Equipment Color: | Light Blue Or Customization | Moving Type: | Fixed |
| Power Supply: | 380V/50HZ | Covering Area: | 1700 Square Meter |
| Transportation Mode: | 40HQ/GP Container | Total Weight: | 230T |
| High Light: | asphalt batch plant,dry batching plant |
||

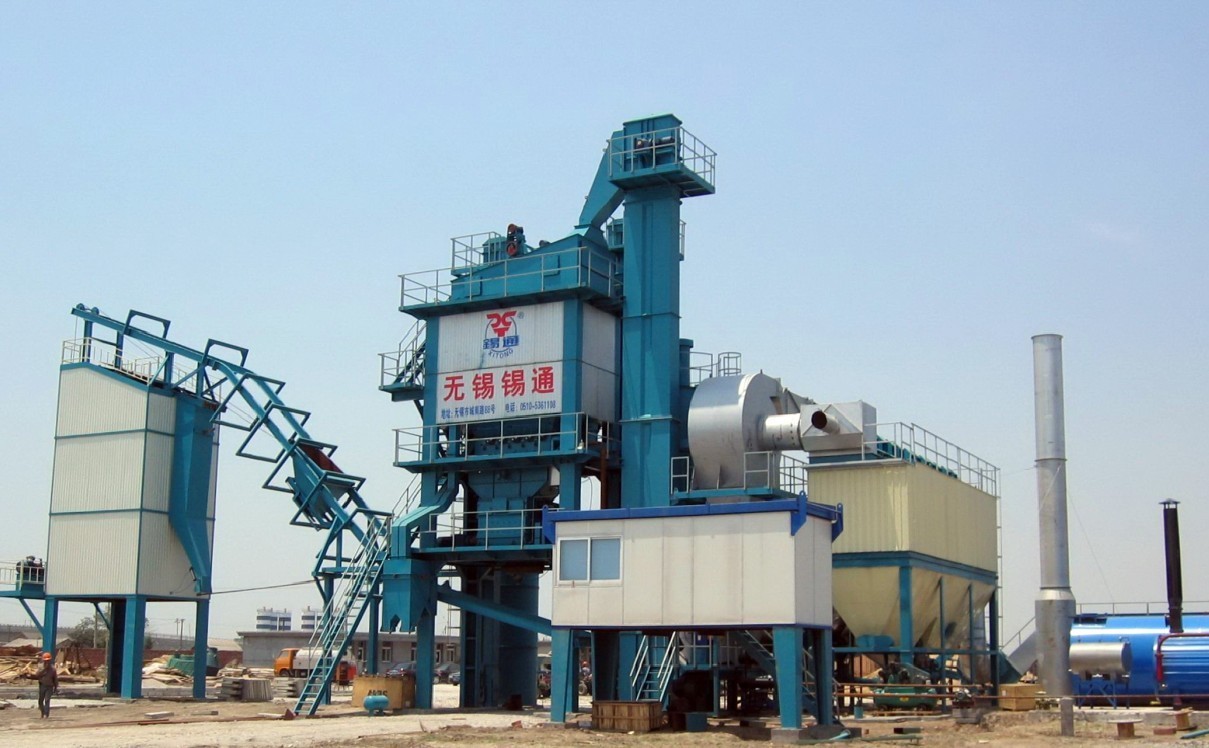

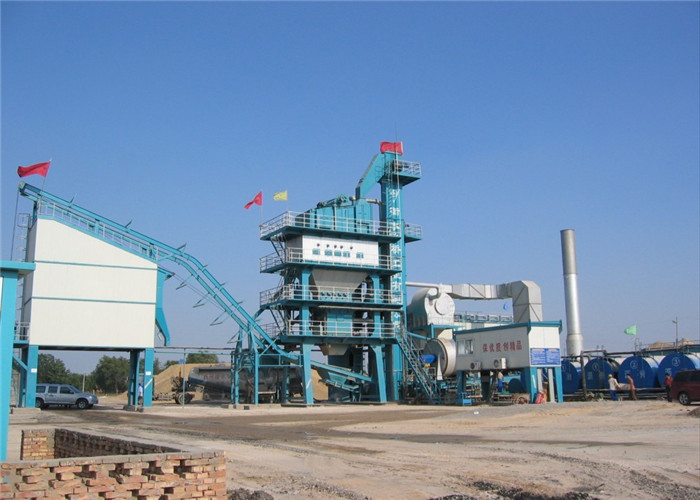

23M2 screening area 160TPH stationary type asphalt batching plant with SEW reducers
Our Advantages:
1, China National Academy of Engineering recommended products
2, Application of international famous brand electrical element achieves zero fault philosophy. Burners, motors, reducers, bearings and weighing sensor are from renowned brands worldwide.
3, High drying efficiency, outstanding screen effect, accurate dosage,
4 Xitong took the first step to R&D 320t/h, 400t/h stationary type and full mobile type asphalt plant industry in China.
5, Fully meet requirements of all grade highways, municipal roads ,airport and harbor, etc.
6 , Exported to about 40 countries worldwide covering five continents since the first set exported in 1993.
7, Integrally reasonable and compact design for plant layout.
8, Control system realizes user friendly interface and powerful human-machine dialogue function.
9, remote control system based on Internet of Things realizes function of real-time fault detection, production monitoring, technical guidance.etc.
10, humanization design of overall structure makes easy and handy maintenance or replacement.
11, Reasonable layout of lifting blade brings material curtain in dryer better thermal efficiency
12, Fuel is optional among diesel, mazut(heavy oil), gas and pulverized coal towards diversifying selections from customer
13, Use of screw conveyor from Italy WAM greatly improves accuracy of filler and waste filler.
Specification:
| Type | QLB-2000 | |
| Rated production | 160t/h | |
| Cold Hopper | 4 containersx9m3 | |
| Drying Drum Dim. | 8380mmx2200mm | |
| Dust collecting type | Gravity and bag filter | |
| Emission standard | ﹤30mg/Nm³ | |
| Vibrating screen | 4 layers | |
| Hot aggregate Bin volume | 50T | |
| Mixer capacity | 2000kg | |
| Mixing cycle | 45s | |
| Filler tank volume | 30T | |
| Asphalt tank volume | 30000L | |
| Heat transfer oil boiler | 500,000 kcal/h | |
| Finished product bin volume | 100T | |
| Control system | Manual /semi-auto / automatic | |
| Weighing accuracy | Aggregate | ≤±0.1% |
| Filler | ≤±0.16% | |
| Asphalt | ≤±0.18% | |
| Installed general power | 480kw | |
