| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Container |
| Delivery Time: | negotiation /2 month after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 8 set per month |
| Product Model: | QLB-2000 | Mixing Cycle: | 45 Seconds |
|---|---|---|---|
| Mixing Method: | Intermittent Compulsory | Quality Control: | CE Standard |
| Feeding Height: | 3.6m | Warranty: | 12 Month |
| Brand Name: | Xitong | Dust Filter System: | Baghouse |
| Moving Type: | Fixed | ||
| High Light: | drum mix asphalt plant,Asphalt drum mixing plant |
||

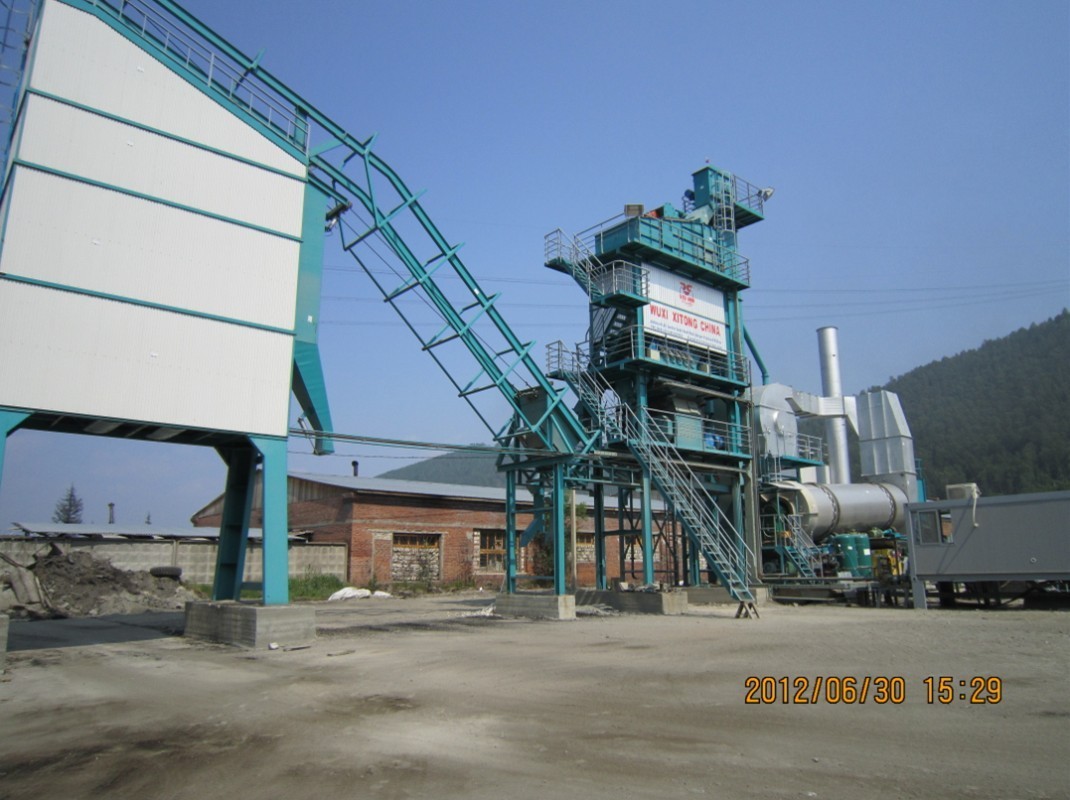

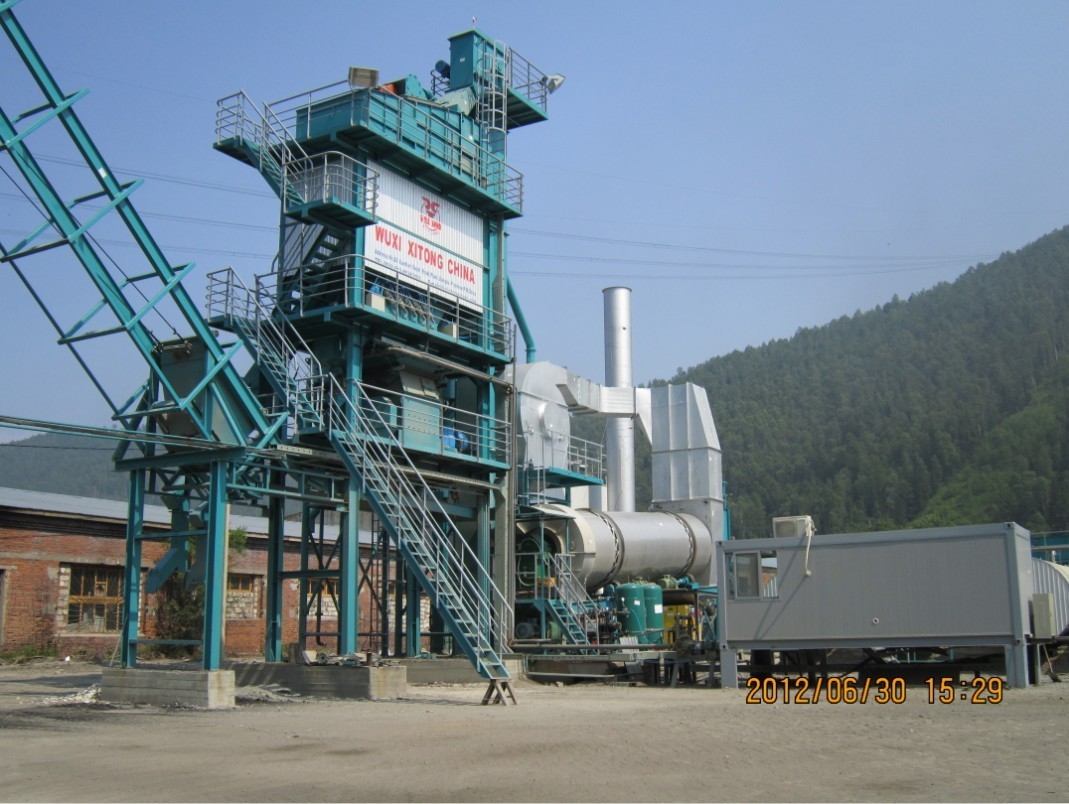

5 cold feeders 180tph belt feeding capacity asphalt drum mix plant with imported motor recuder
Product details
1, The optimal design of lifting blades makes high effiency of raw aggregate drying , and stainless steel coated insulating layer effectively reduces the heat losses in drying drum, save fuel consumption, improve the thermal efficiency. Drying cylinder combustion zone adopts wear-resisting, heat-resisting material, which prolongs service life.
2, Chain bucket type hot aggregate elevator with spring tensioner is driven by shaft-mounted gear reducer, which runs smoothly with brake motor agianst reverse rotation.
High strength and durable screen mesh with reasonable layout makes better vibration isolation effort during vibration screen running, big and wide screen opening makes it convenient to replace new mesh.Complete seal of whole body, with negative pressure design inside to avoid dust emission.
3. hot aggregate use rough and accurate weighing(two step weihging method), combined with automatic impulse compensation program, which will guarantee high weighing accuracy. Advanced computer automatic compensation function, which will ensure much more accurate weighing control system.
4, modular and integrated design make plant transportation and installation convenient, professtional design ensure that there is enough space for maintenance and safety device, running under the micro negative pressure circumstance will prevent filler floating.The double vortex mixing tank will reach to a optimum mixing effect, mixing arm, mixing paddle and liner board are made of special anti-frication cast steel, all linings are bolted outside of the tank, easy for maintenance and change. Mixing tank is driven by double-reducer, with oil-bath gearing working synchronously. Full open arc type discharging door can exhaust finished mixture rapidly which effectively reduces mixing cycle.
5, multi-stage dust collecting method, different size of filler will be collected and recycled to improve the utilization of raw material.Bag house filter adopts DUPONT NOMEX material filtering bags; high pressure compressed air impulse blowing system that will be much more efficient to clean dust, which will meet the environmental emission standards
Specification
QLB Series Asphalt hot mix plant specification table
| Name | Specification | ||||||
| Model | 600 | 1000 | 1500 | 2000 | 2500 | 3000 | |
| Production | 48tph | 80tph | 120tph | 160tph | 200tph | 240tph | |
| Cold feeder volume | 8m3 | 9m3 | 10m | 10m3 | 12 m3 | 12m3 | |
| Dust collecting type | Gravity drop type and bag filter(air back fluch) | ||||||
| Fuel type | Diesel/masut/Natural gas | ||||||
| Volume/number of hot aggregate bin | 12t/4 | 32t/4 or 5 | 40t/4 or 5 | 50t/5 | 60t/5 | 80t/5 | |
| Precision of aggregate weighing | Less than ±0.1% | Less than ±0.1% | |||||
| Precision of powder weighing | Less than ±0.16% | Less than ±0.16% | |||||
| Precision of asphalt weighing | Less than ±0.18% | ||||||
| Mixing tank capacity KG/batch | 600 | 1000 | 1500 | 2000 | 2500 | 3000 | |
| Volume/number of asphalt storage tank | 10m3/2 | 16m3/2 | 30m3/2 | 30 m3/3 | 50 m3/2 | 50 m3/3 | |
| Capacity of finished mixture silo(T) | - | 60 | 100 | 120 | 160 | ||
| Installed power(KW) | 185 | 280 | 345 | 470 | 608 | 680 | |
