| Product Model: | QLB-1000 | Asphalt Tank: | 16T |
|---|---|---|---|
| Mixing Method: | Intermittent Compulsory | Quality Control: | CE Standard |
| Cold Feeder: | 4 Pieces | Bag Area: | 445 Square Meter |
| Brand Name: | Xitong | Area Occupation: | 1075 Squrare Meter |
| Power: | 260KW | ||
| High Light: | Asphalt drum mixing plant,Asphalt drum mixer plant |
||

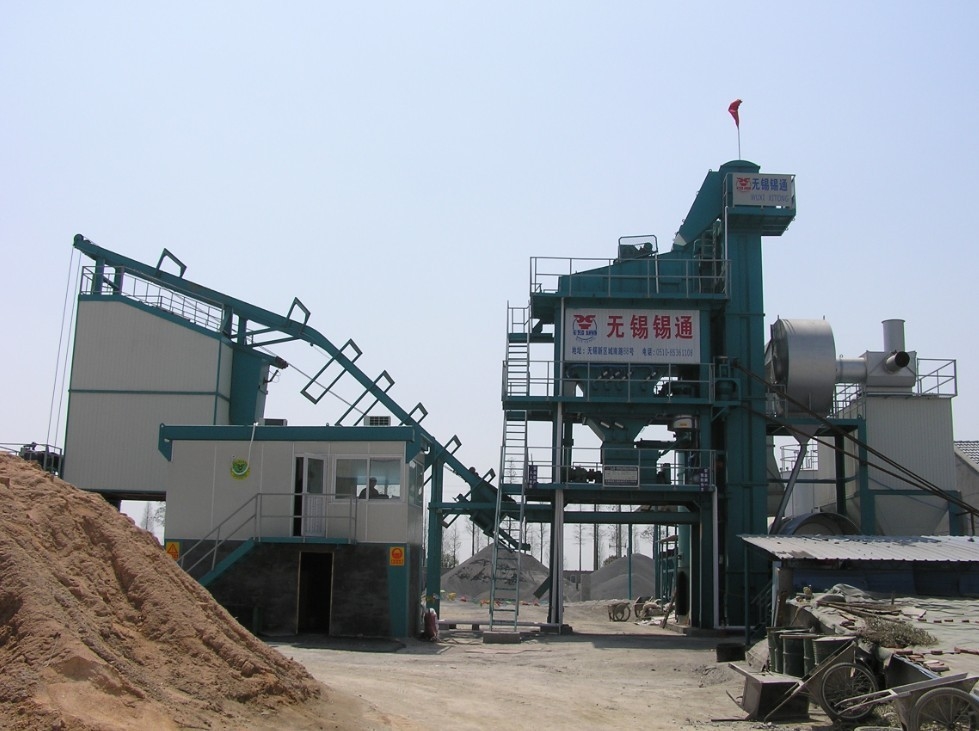

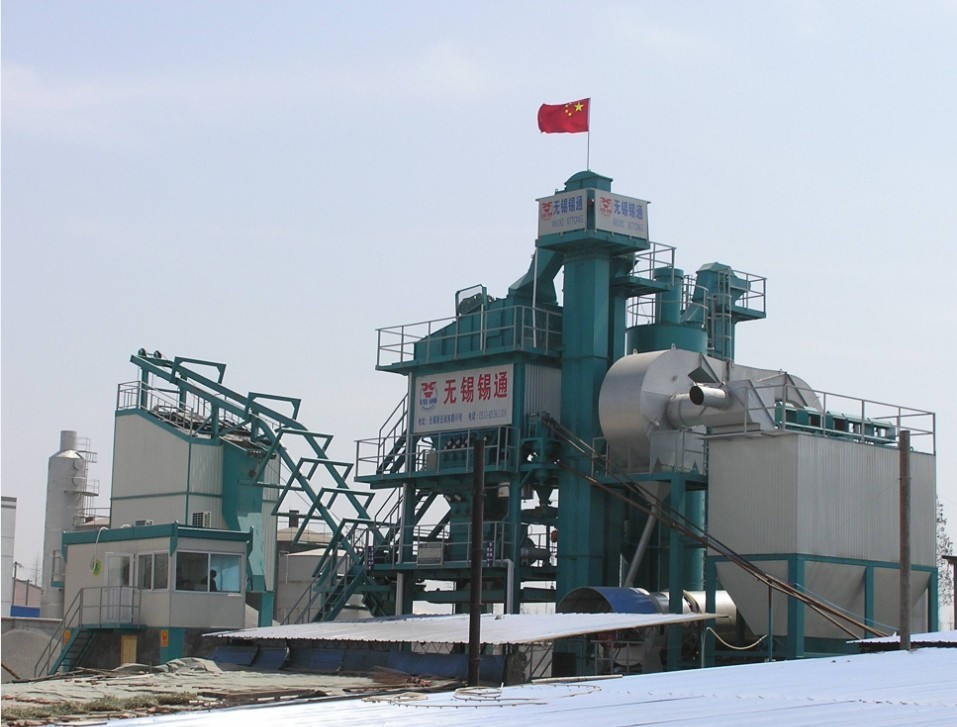

60-80T capacity 1000 model batch type asphalt drum mix plant for road machinery
Product details
Max capacity:80t/h (Working under rated condition)
1. Raw aggregate Supply System
Cold aggregate bin adopts double-hopper-connection type, equipped with working platform, material shortage alarm device and separation net at feeding inlet of each bin against rough & waste materials, amogn which, 2 feeder have wall vibrator.
Each aggregate ground hopper is equipped with feeding belt and audible and visual alarm device, When the conveying volume of cold hopper is lower than limit value or suddenly the signal will be sent to the control room rapidly and appeared on computer interface in order to solve the problem in time. The door of the cold feeder could be appropriately adjusted to meet the requirement of the aggregate speicification.
2. Drying Cylinder
Dryer is made of heat-resisting and high-abrasive steel plates. Optimal stucture of lifting plates providing exllent environment for aggregate conveying and heating. Good heat exchanging burner flame area & discharging (blanking) area have lifting guidance plate. Dryer body is covered with heat-proof layer outside with stainless steel plate; the foundation is made of heavy steel. Dryer body is driven by 4 groups of separate friction wheels and each group is equipped with separate speed reducer and motor.
3, Dust Collection System
Two level dust collection system (volute casing collector + bag house collector), with high and low temperature protection device for the system security.
Bag house collector using USA Dupont NEMEX bags, heat resisting and long life
Environmental friendly, emission concentration is less than 20mg/Nm3
The bag of the bag house filter adopts high temperature resistant material, which can withstand 220°C high temperature. All the bags inlet are equipped with spring buckle, combing with the special bag support frame, which ensure quick and reliable fixing work of bags.
4, Hot aggregate elevator
Hopper type hoister uses double rows of heavy chain to lift and shaft mounted reducer
to drive. The reducer is equipped with brake motor to prevent hoister from rotating reversely, solving the problem of jam from sudden power off or other causes. Chain spring tensioning devices are installed at both sides of hoister bottom; edge of elevating
hopper adopts wear-resisting design, wearable liners are fixed in both feeding & discharging channel; working platform is installed on top of hoister for easy maintenance.
5, Vibration screen
Vibration exciter is driven by single-shaft, screen box is installed on anti-resonant spring pivot,
container type wide inspection door is equipped at both sides of the vibration screen, which is easy for maintenance and changing screen meshwork, exhaust pipeline is installed at the top of vibration screen to send the produced dust to the dust collector.
* Sieving capacity: 90t/h( 0-3mm≤35%)
* Drive power: 5.5kw×2
* Screen layer: 4 layers
* Hole dia. of screen: 6×6,11×11,19×19,30×30
Specification
QLB Series Asphalt hot mix plant specification table
| Name | Specification | ||||||
| Model | 600 | 1000 | 1500 | 2000 | 2500 | 3000 | |
| Output capacity | 48tph | 80tph | 120tph | 160tph | 200tph | 240tph | |
| Cold hopper capacity | 8m3 | 9m3 | 10m | 10m3 | 12 m3 | 12m3 | |
| Dust collecting type | Gravity drop type and bag filter(air back fluch) | ||||||
| Fuel type | Diesel/masut/Natural gas | ||||||
| Volume/number of hot aggregate silo | 12t/4 | 32t/4 or 5 | 40t/4 or 5 | 50t/5 | 60t/5 | 80t/5 | |
| Accuracy of aggregate weighing | Less than ±0.1% | Less than ±0.1% | |||||
| Accuracy of powder weighing | Less than ±0.16% | Less than ±0.16% | |||||
| Accuracy of asphalt weighing | Less than ±0.18% | ||||||
| Mixing tank capacity KG/batch | 600 | 1000 | 1500 | 2000 | 2500 | 3000 | |
| Volume/number of asphalt high tempature tank | 10m3/2 | 16m3/2 | 30m3/2 | 30 m3/3 | 50 m3/2 | 50 m3/3 | |
| Capacity of finished mixture silo(T) | - | 60 | 100 | 120 | 160 | ||
| Installed power(KW) | 185 | 280 | 345 | 470 | 608 | 680 | |
