| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Container |
| Delivery Time: | negotiation /2 month after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 8 set per month |
| Product Model: | QLB-2000 | Diesel Tank: | 30T |
|---|---|---|---|
| Filtering Area: | 710 Square Meter | Quality Control: | CE Standard |
| Cold Feeder: | 4 Pieces | Dedusting Mode: | Gravity Type And Bag Filter |
| Equipment Color: | User Defined | Area Occupation: | 1700 Squrare Meter |
| Power: | 450KW | ||
| High Light: | drum mix asphalt plant,Asphalt drum mixing plant |
||

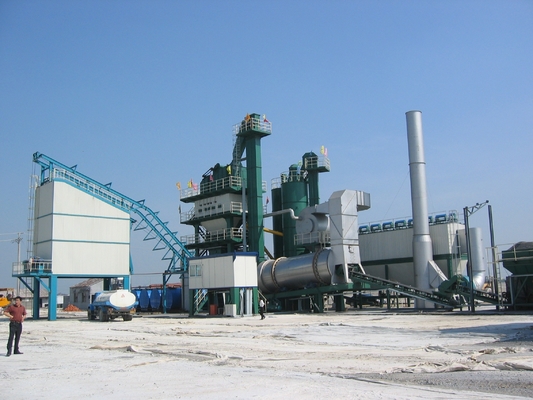

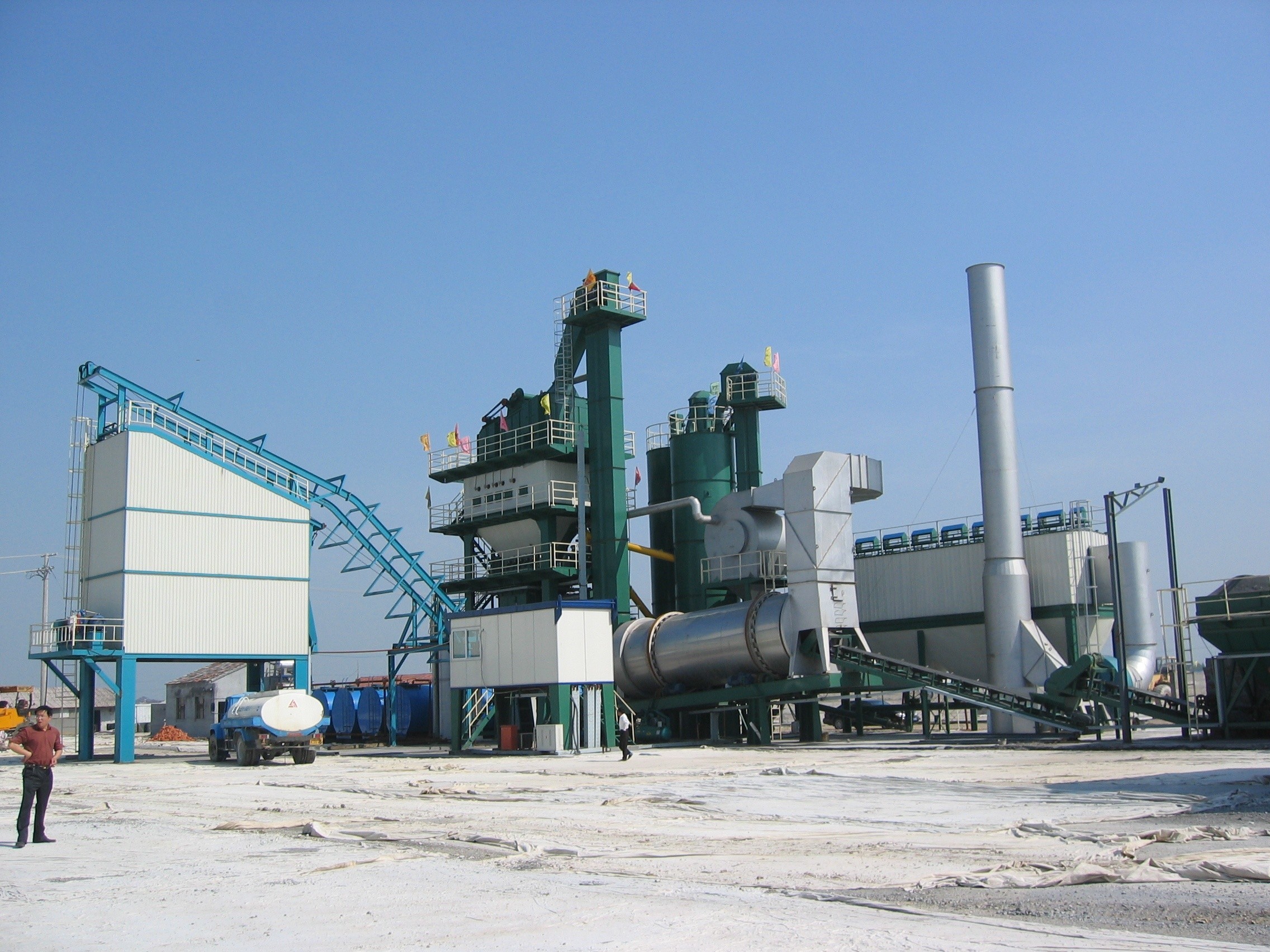

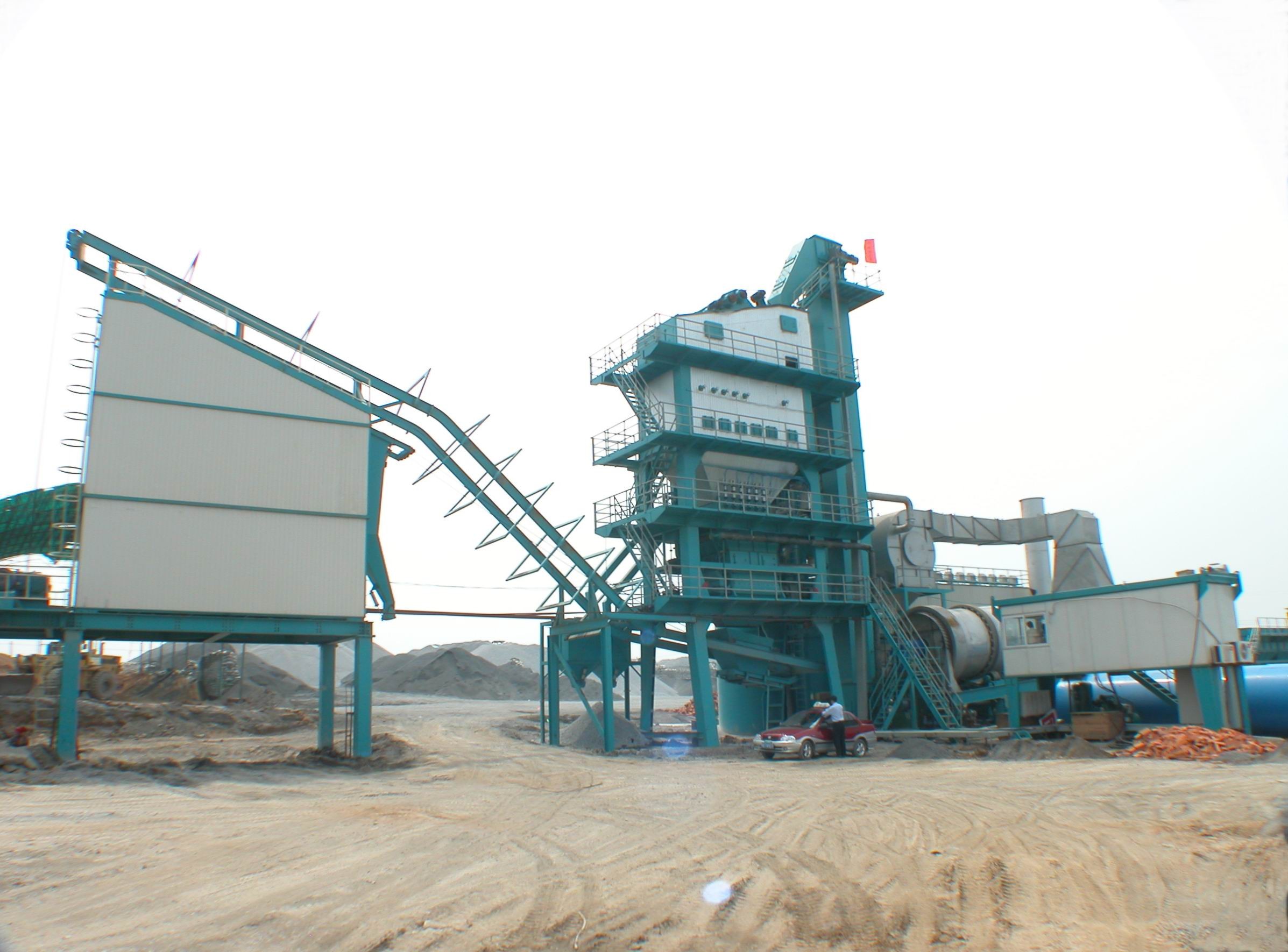

30T diesel tank 160t/h Asphalt drum mix plant with 90KW draught fan for highway building
| Mixing tower | ||||
| 1 | Vibration Screen(single shaft 5 layers ) | 1set |
Inspection door is equipped for maintenance and changing screen meshwork Sieving Capacity: 180t/h(0-3mm≤35%) Sieving area: 23m2 Bore Dia. : 3×3,6×6,11×11,19×19,30×30 |
|
| 2 | Hot aggregate bin(5 units with total capacity 50T) | 1set | Color steel insulation, damped rotation type level indicator,50mm rock wool, with wear prevention baffle, inspection hole and overflow pipeline | |
|
|
||||
| 3 | Aggregate weighing | 1set | USA Toledo sensor,2000kg/batch | |
| 4 | Filler weighing | 1set | USA Toledo sensor,300kg/batch | |
| 5 | Asphalt weighing | 1set | USA Toledo sensor,200kg/batch | |
| 6 |
Screw conveyor
|
1set |
Filler weighing to mixing tank(Italia WAM) Cross the whole mixing tank and evenly spray into tank for max mixing speed |
|
| 7 | Mixing tank | 1set |
Double-reducer drive Mixing system:capacity 2000kg/batch,rated cycle 45 second,Boneng or Dongli brand reducer(Joint venture)
|
|
| 8 | Electronic scale | 3 sets | For weighing of aggregate, filler and asphalt , Japan Chimei(PT650 see attach diagram) | |
| 9 | Main Frame Equipped With Platform, Ladder and Guard Railing | 1set | ||
