| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Container |
| Delivery Time: | negotiation /2 month after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 8 set per month |
| Product Model: | QLB-3000 | Feeding Width: | 3.6m |
|---|---|---|---|
| Mixing Method: | Intermittent Compulsory | Quality Control: | CE Standard |
| Cold Feeder: | 5 Pieces | Volume Of Cold Feeder: | 60 Cubic Meter |
| Brand Name: | Xitong | Dryer Length: | 9000mm |
| Moving Type: | Fixed | ||
| High Light: | drum mix asphalt plant,Asphalt drum mixer plant |
||

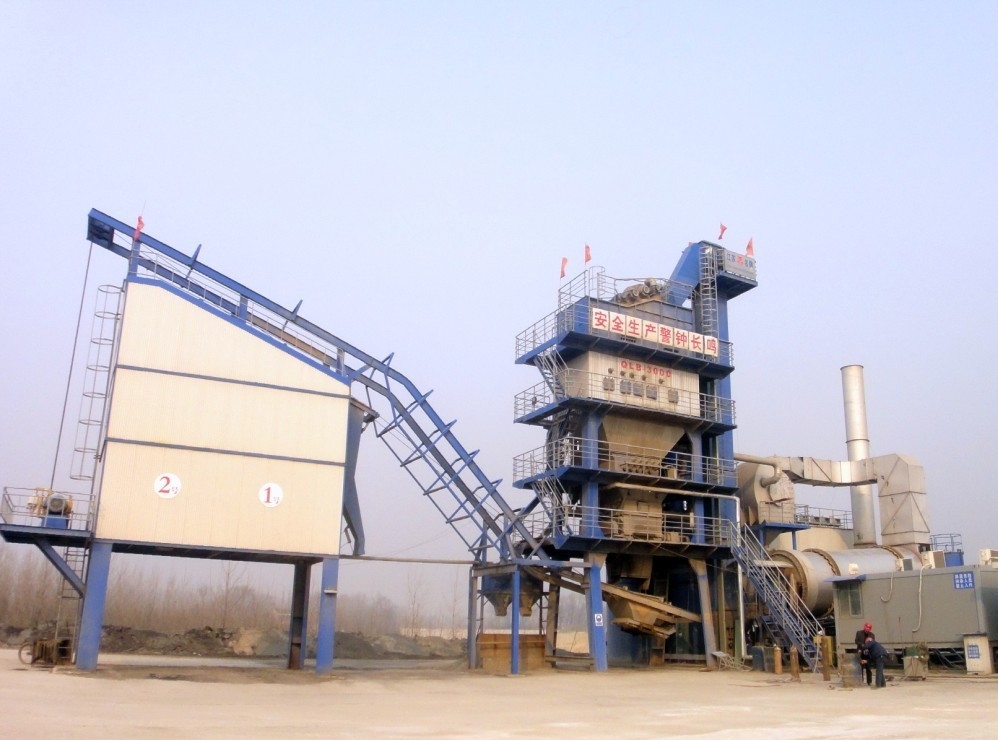

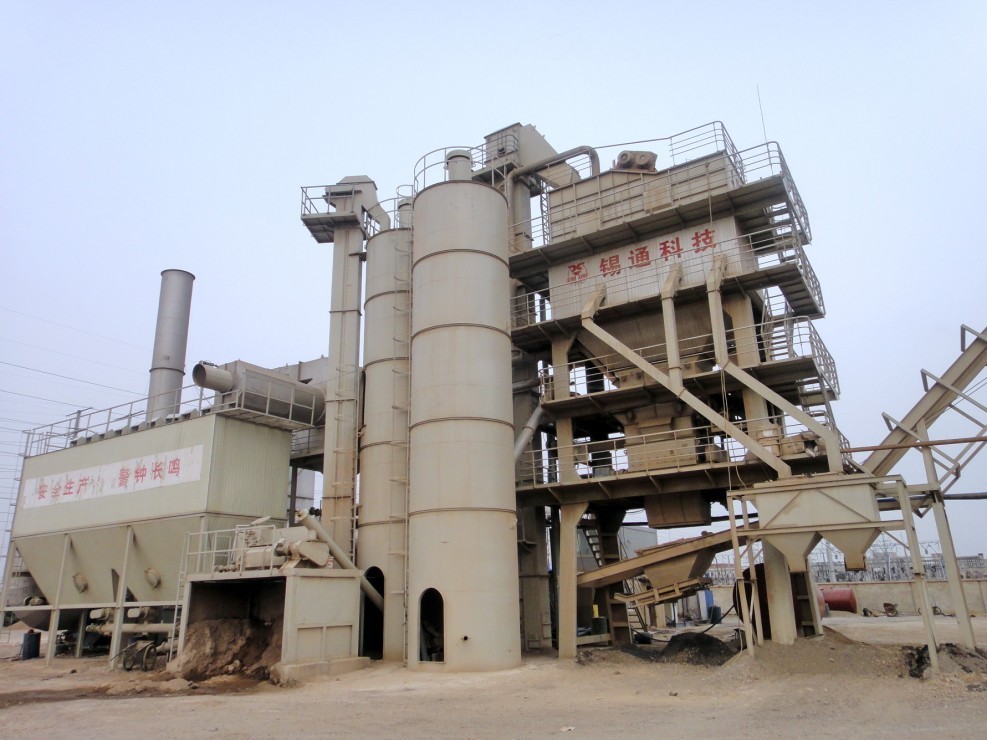

270tph drying capacity two step duct collecting asphalt drum mix plant with Italia burner
Product details
Max capacity: 240t/h (Working under rated condition)
Mixing evenness: meet the quality requirement of any asphalt mixture project
1, Cold feeding system
Ground aggregate hopper adopts three-hopper-integral type, each bin has separation net for rough & waste materials, operation platform and material shortage alarm device, with two wall vibrators.
2, Drying drum
The dryer is made of heat-resisting and high-abrasive 20Gsteel plates. A variety of shapes of lifting plates (raising boards) in it are suitable for the transportation of different aggregate and create good heat exchanging burner flame area & discharging (blanking) area. Dryer body is covered with heat-proof layer outside with stainless steel plate; the foundation is made of “H” type heavy steel. Dryer body is driven by 4 groups of separate friction wheels and each group is equipped with separate speed reducer and motor.
3, Dust collector
The dust collector is made of a secondary system, primary system is the dust separator(volute casing collector), and the secondary system is bag type filter, which is used for collecting dust during production. System includes cold blast door,draught fan, exhaust chimney and filler conveyor which are controlled by thermometer
4, Hot aggregate hoister
Hopper type hoister uses double rows of heavy chain to lift and shaft mounted reducer to drive. The reducer is equipped with brake motor to prevent hoister from rotating reversely, solving
the problem of jam from sudden power off or other causes. Chain spring tensioning devices are installed at both sides of hoister bottom; edge of elevating hopper adopts wear-resisting design, wearable liners are fixed in both feeding & discharging channel; working platform is installed on top of hoister for maintenance.
Specification
QLB Series Asphalt hot mix plant specification table
| Name | Specification | ||||||
| Model | 600 | 1000 | 1500 | 2000 | 2500 | 3000 | |
| Production | 48tph | 80tph | 120tph | 160tph | 200tph | 240tph | |
| Cold feeder volume | 8m3 | 9m3 | 10m | 10m3 | 12 m3 | 12m3 | |
| Dust collecting type | Gravity drop type and bag filter(air back fluch) | ||||||
| Fuel type | Diesel/masut/Natural gas | ||||||
| Volume/number of hot aggregate bin | 12t/4 | 32t/4 or 5 | 40t/4 or 5 | 50t/5 | 60t/5 | 80t/5 | |
| Precision of aggregate weighing | Less than ±0.1% | Less than ±0.1% | |||||
| Precision of powder weighing | Less than ±0.16% | Less than ±0.16% | |||||
| Precision of asphalt weighing | Less than ±0.18% | ||||||
| Mixing tank capacity KG/batch | 600 | 1000 | 1500 | 2000 | 2500 | 3000 | |
| Volume/number of asphalt storage tank | 10m3/2 | 16m3/2 | 30m3/2 | 30 m3/3 | 50 m3/2 | 50 m3/3 | |
| Capacity of finished mixture silo(T) | - | 60 | 100 | 120 | 160 | ||
| Installed power(KW) | 185 | 280 | 345 | 470 | 608 | 680 | |
