180t / H Belt Mobile Asphalt Drum Mixing Plant , 160tph Capacity Batching Plant Equipment

Basic Information

Certification:	CE/CNAS/SGS/ISO
Model Number:	QLB

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Container
Delivery Time:	negotiation /2 month after received your payment
Payment Terms:	T/T or L/C
Supply Ability:	8 set per month

Get Best Price Contact Now

Detail Information

Product Model:	QLB-2000	Diesel Tank:	30T
Filtering Area:	710 Square Meter	Dead Weight:	230T
Base Aggregate Hopper:	5 Sets	Power Type:	380V/50HZ
Trolley:	200KG	Floor Space:	1700 Squrare Meter
InstalledPower:	450KW
Highlight:	Asphalt drum mixing plant , Asphalt drum mixer plant

Product Description

Sweeper on 180t / h belt with anti-bonding structure asphalt mixing equipment with 160tph capacity

Description

Five-Bin Feeder
It is integrated type. Below each hopper, there is individual belt feeder, which feeds special quantity of aggregate to the long belt conveyor under hoppers according to the ratio.

Vibrating Screen
The vibrating screen in QLB-2000 model is designed into high-effective, large-volume aggregate classifying equipment. It can screen aggregate of exact specification in spite of thin or coarse, wet or dry.

Conveyors

There are 2 conveyors for cold feeding system, one is collective conveyor that gathering various sizes of aggregate dropping onto it. Another is that receives aggregate from the gathering conveyor and feeds it to the dryer drum..

Dryer Drum
The dryer is accurately fabricated to ensure proper heating of aggregates with minimum heat loss. Specially designed flights and guilding plates lift and distribute the aggregate into special material curtain,to make aggregate being heated in short time withi high efficiency. A fully automatic high-pressure auto jet burner is mounted at one end of the drum.

Bitumen Tanks
Three Bitumen Tanks with 30T capacity, fabricated from steel plates with 50mm rockwool insulation,equipped with manhole, thermocouples, etc. Before pumped into storage tank, bitumen is pumped into 2 cubic meter asphalt reception tank from trucks.

Dust collecting system

The dust collection system consists of cyclone dust collecting, exhaust fan, chimney,bag filter(bag dust collector), bag, screw conveyor.

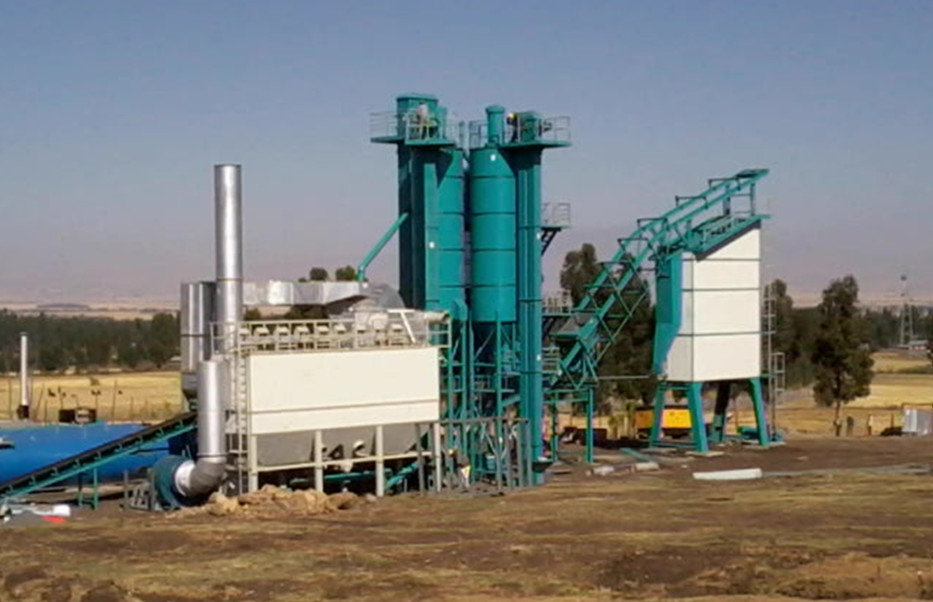

180t / H Belt Mobile Asphalt Drum Mixing Plant , 160tph Capacity Batching Plant Equipment

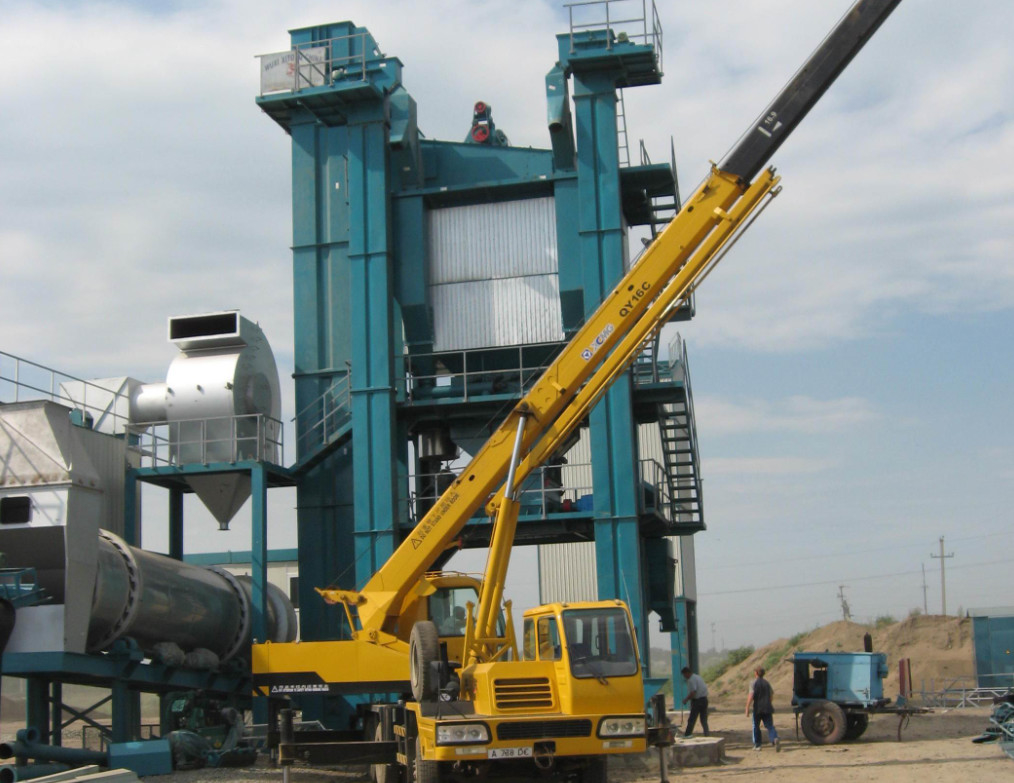

Mixing tower

	Mixing tower
1	Vibration Screen(single shaft 5 layers )	1set	Inspection door is equipped for maintenance and changing screen meshwork Sieving Capacity: 180t/h(0-3mm≤35%) Sieving area: 23m² Bore Dia. : 3×3,6×6,11×11,19×19,30×30
2	Hot aggregate bin(5 units with total capacity 50T)	1set	Color steel insulation, damped rotation type level indicator,50mm rock wool, with wear prevention baffle, inspection hole and overflow pipeline

3	Aggregate weighing	1set	USA Toledo sensor,2000kg/batch
4	Filler weighing	1set	USA Toledo sensor,300kg/batch
5	Asphalt weighing	1set	USA Toledo sensor,200kg/batch
6	Screw conveyor	1set	Filler weighing to mixing tank(Italia WAM) Cross the whole mixing tank and evenly spray into tank for max mixing speed
7	Mixing tank	1set	Double-reducer drive Mixing system:capacity 2000kg/batch,rated cycle 45 second,Boneng or Dongli brand reducer(Joint venture)
8	Electronic scale	3 sets	For weighing of aggregate, filler and asphalt , Japan Chimei(PT650 see attach diagram)
9	Main Frame Equipped With Platform, Ladder and Guard Railing	1set
