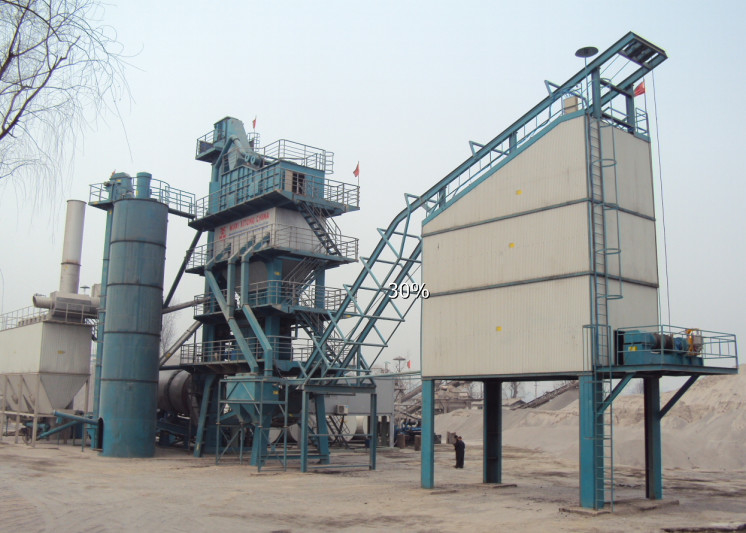

160T Side Type Storage Silo Asphalt Batch Mixing Plant , 3 Units Bitumen Processing Plant

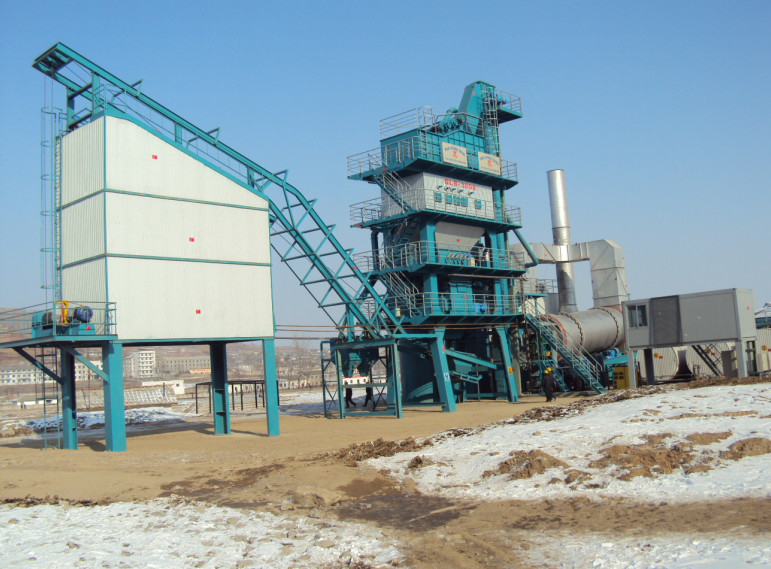

160T Side type storage silo asphalt Batching Plant, 3 units 50000L bitumen tank

Features of batching type asphalt hot mixing plant

1, Accurate dosage based on recipe for better mixing performance

2, High weighing accuracy with tolerance as low as ±0.10%

3, Excellent effect of thermal insulation

4, Global online internet service based on /remote control service based on things networking technology

5, Lifetime technical online service/ Professional online support service/ 7×24h Customer Service System

6, Exported to about 40 countries worldwide/with rich experience of exporting

7, Integrally reasonable and compact design for plant layout

8, Intelligent control, free Switch among full auto, semi-auto and manual

9, Outstanding insulation system to enhance thermal efficiency and output

10, Reasonable lifting blade structure for better drying efficiency

11,Double horizontal shaft vortex type mixing tank provides best mixing effort/mixing arm, blade and lining plate in mixer adopt special alloy wear-resistant cast steel for longer lifetime.

12, Full open arc type door on mixing tank shorten mixing cycle

The common method of trouble removal for software/control system

⑴. Computer and PLC do not communicate.

• Check the communication cable between computer and PLC for linkage error.
• Check the soldering tins on two heads of cable for shelling.
• Check the computer serial interface for damage.
• Check the TDPRO operating system for damage.
• Check the softdog for loose.
• Check the communication modules of PLC for loose or damage.
• Check the operation state of PLC to judge if it is ‘RUN’

⑵. Fail to print producing data.

l Check the communication cable between computer and printer for linkage.

l Check the printer power for on or off.

l Check the computer for real time printing mode.

l Check the printer for papers.

⑶. Fail to indicate the weight correctly:

• The weight display on computer and the revision of CB920 is not set correctly.
• The analog signals module of CB920 is damaged.
• The weighing sensor is damaged.
• The A/D module of PLC is damaged.
• The weighing sensor is overloaded.

⑷. Periphery electromotor fail to work

• Air breaker Tripped.
• Overload-protection of hot relay in secondary circuit acts.
• Electromotor is damaged.
• Electromotor is overloaded.

⑸. External actuator does not work

• Check PLC for the failure of sending instructions.
• Check the air breaker in secondary circuit for overload-protection.
• Check the relevant relay for damage.
• Check the air valve for damage.

⑹. The transducer of finished product hoppers work abnormally

• The promotion load for trolley is too large.
• The deceleration time for trolley is too short, and the rebirth energy of electromotor is too great.
• The linkage of transducer brake unit becomes flexible or damaged.
• The linkage of transducer brake resistance becomes flexible or damaged.
• The voltage of V/F is too high.
•
