| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Nude Packing |
| Delivery Time: | negotiation /2 month after received your payment |
| Supply Ability: | 10 sets per month |
| Type: | Finished Product Bin Put Aside | Processing Material: | Aggregatea And Sphalt Filler |
|---|---|---|---|
| Ash Valve: | 1.5KW*2 | Burner: | Tri-fuel |
| Aggregate Hopper: | 5 Units | Sieving Capacity: | More Than 260tph |
| Vibration Screen: | 5 Layers | Warranty: | 12 Month |
| Balanced-draft Control: | Auto | Aggregate Metering: | 3500KG |
| High Light: | aggregate asphalt plant,road building equipment |
||

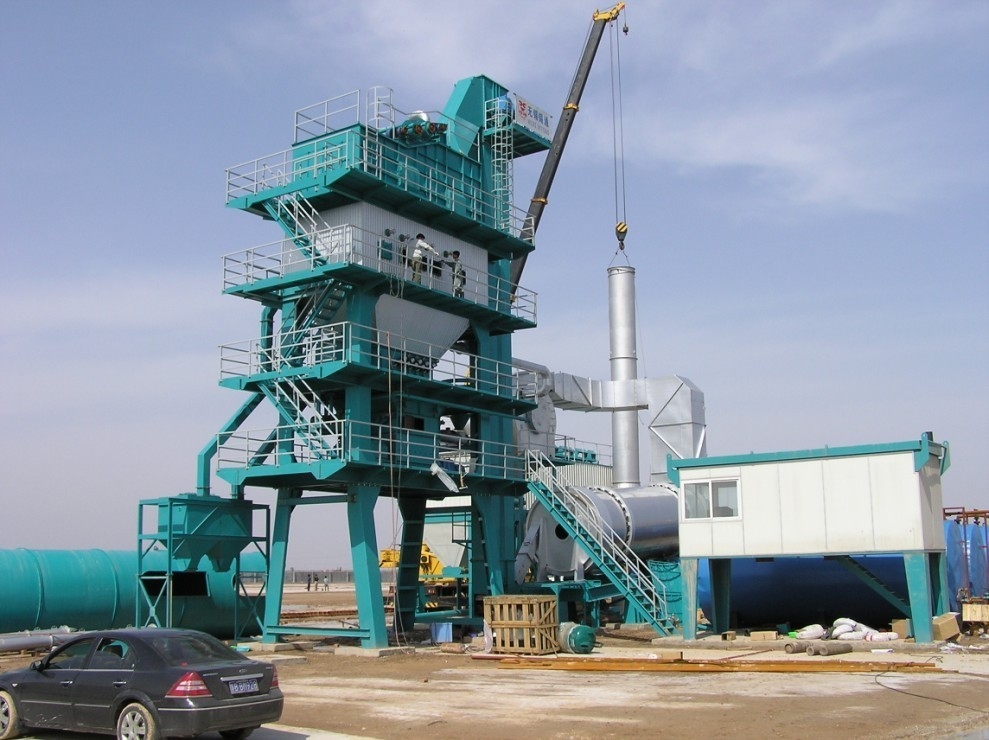

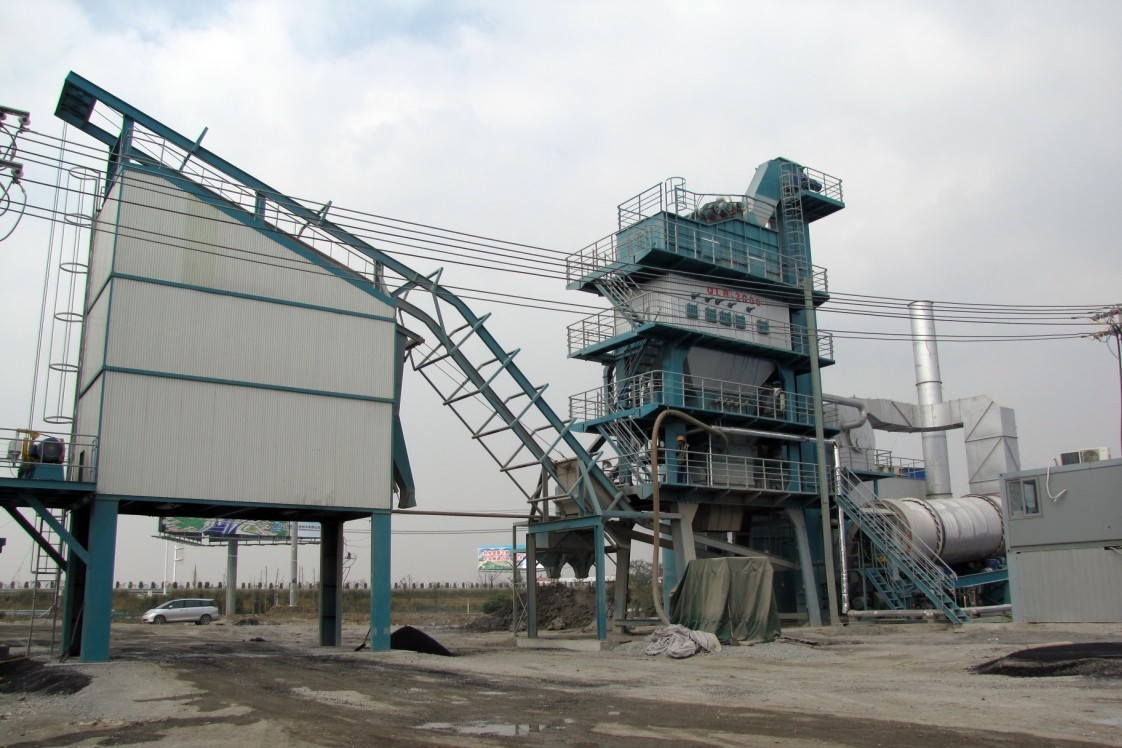

30tph screw conveyor trifuel burner asphalt batch mix plant with 0.075mm dust separation
Dust collecting system:
The two-step dedusting system is applied for effective dust collecting, which includes: gravity type, and the second: bag type. Cold air valve is equipped, and temperature sensor is set, with auto control function and secondary protection device(against high temp. and super high temp), which means---aotu open mixer selector valve for temp. adjustment at high temp., timing control the burner against super temperature, to protect bag.
Main mixing frame:
The main mixing frame is assembled by container-type/containerized section,which is composed of vibration system,screening system, hot aggregate storage section, cone storage section for hot aggregate,mixing floor, carrier(to collect ready bitumen mixture and send to finished product bin) layer,Toledo sensor are applied for metering of materials and double horizontal shaft reducers are used for mixing process
Cerebral center of the whole mixing plant--- central control system:
Mainly use schneider electronic parts as main components to ensure durability and stability, for all parts in control room, 98% of which are originally imported to ensure best quality ,Mitsubishi PLC could realize freely switch between full auto, semi-auto and manual pattern; IPC could realize printing realtime product data, and date for certain time or period could be easily searched and printed for check. The system supports multy language, which could also easily swithch by a single click during production.Dynamic process monitoring simultaneously reflects working process by Dynamic Virtual Video, it has the function of formula input, formula storage, formula upload,download and acquire time, adjustment,fly spatter amendment, Self-Test Diagnostics, failure, warning, interlock protection and production data storage, random and free search,query and print.
| Model |
QLB-3000
|
|
|
nominal outputCapacity(Moisture Content of aggregate 3%)
|
240t/h
|
|
|
Total Installation Power
|
≈680kw
|
|
|
Cold Feeder silo
|
Number x Volume
|
5x12m³
|
|
Feeder Control
|
Vari-frequency control
|
|
|
Drying Drum
|
Diameter Φ
|
Φ2.75m
|
|
Length
|
9m
|
|
|
Drive Power
|
4x22kw
|
|
|
Drive Type
|
Friction drive
|
|
|
Fuel Type
|
Diesel/ Heavy oil/Nature Gas
|
|
|
Drying Capacity
- Moisture Content3% |
260t/h
|
|
|
- Moisture Content 5%
|
240t/h
|
|
|
Bag House
|
Dust collecting Method
|
(1st step)pre-separator and (2nd step) bag filtering house(induced draft fan, air blowback)
|
|
Filtering Area
|
1000㎡
|
|
|
Filter Bag Material
|
Dupont TAMAX Needle Felt
|
|
|
Main Tower
|
Screening
|
5
|
|
Screening Area
|
36㎡
|
|
|
Hot Bin Quantity
|
5
|
|
|
Hot Bin Volume
|
80m³
|
|
|
Aggregate Weighing
|
3x3.5t
|
|
|
Filler Weighing
|
3x600kg
|
|
|
Bitumen Weighing
|
3x300kg
|
|
|
Aggregate Weighing Accuracy
|
＜±0.1%(static),＜±1.0%(dynamic)
|
|
|
Filler Weighing Accuracy
|
＜±0.16%(static),＜±1.0%(dynamic)
|
|
|
Bitumen Weighing Accuracy
|
＜±0.18%(static),＜±0.5%(dynamic)
|
|
|
Mixing Power
|
2x45kw
|
|
|
Mixing Capacity
|
3000kg
|
|
|
Mixing Cycle
|
45s/batch
|
|
|
Filler Scaling &Feeding
|
Screw conveyor throughout the whole mixer, well distributed feeding design
|
|
|
Bitumen Scaling &Feeding
|
2-stage measurement, high pressure atomization spray with spray pipe throughout the whole mixer
|
|
|
Mixing
|
2 horizontal mixing shafts, dual-motor driven with synchronous reducer
|
|
|
Bitumen system
|
Heat conduction oil for heating, 50m³ horizontal bitumen tank,quantity of tank customized per customer’s request
|
|
|
Filler System
|
Overlay vertical filler bin(recycled filler +new filler)
|
|
|
Control System
|
Operation Interface
|
PLC+HMI(standard)
Or PLC+PC control(optional) |
|
Control Cabin
|
6mx2.4mx2.5m
|
|
|
Weighing Displayer
|
Aggregate/ Filler/Bitumen
|
|
|
Environmental Index
|
Dust Density
|
≤50mg/Nm³
|
|
Smoke blackness
|
Ringelmann Blackness Class 1
|
|
|
Noise in Control Cabin
|
≤70dB
|
|
