| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB-Y |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Nude Packing |
| Delivery Time: | negotiation /3 month after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Capacity: | 80tph | Moible Units: | 7 |
|---|---|---|---|
| Installation Time (day): | 5 | Moving Form: | Chassis&wheel |
| Transportation: | Bulk Ship | Model: | QLB-Y1000 |
| Type: | Mobile/portable/movable | Mixing Method: | Intermittent Compulsory |
| High Light: | portable asphalt plant,portable batch plant |
||

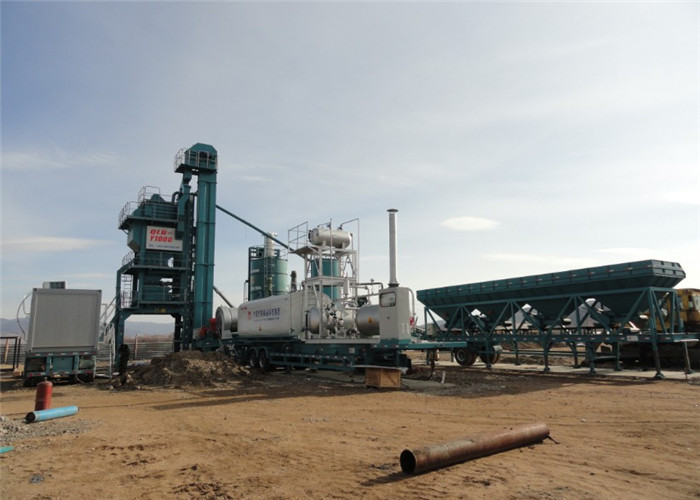

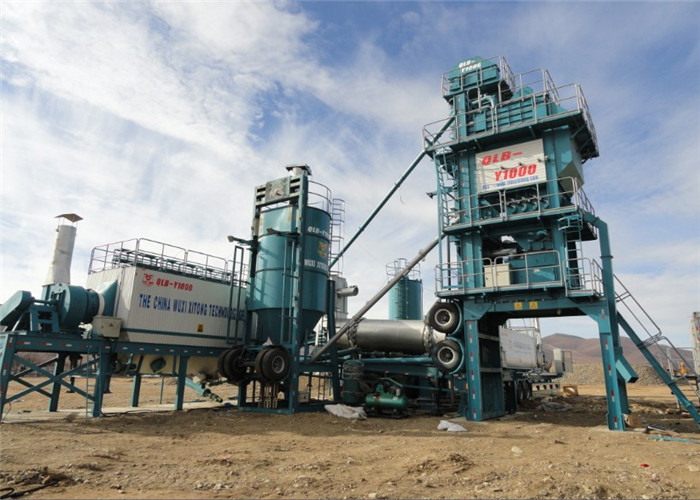

High integration and compact design 80T full mobile asphalt plant
Characteristics
1, Characterized by portable or movable capacity, full mobile type is normally composed of 7 units, all mechanical parts and electrical parts are installed on semi-trailers.
2, We took the first step in design and manufacturer of large capacity full mobile type asphalt machinery around China together with techncail support and guide from Chinese Academy of Engineering
3, New equipment could be put into production 5~7 days after all mobile systems arriving at site.
4, Due to high mobility, overall set could be fully evacuated or transferred within 2 days,
5, Electrical connection of equipment is aviation plug, which could be assembled and disassembled quickly during transfer between sites.
6, It takes totally 10 days’ time including equipment disassembling, reinstalling and running test
7, Being highly integrated in design, saving area occupation and energy consumption.
8, Specially designed for small projects which always change frequently change sites.
9, Ready silo for finished asphalt mixture is optional.
10, Since R&D of full mobile type is fully based on large type stationary asphalt mixing equipment, it is both flexible in movements between sites and stable in production output. And these advantages have been widely accepted by users from dozens of countries.
Specification
QLB-Y series mobile type asphalt mixing plant data form
| Model No | QLB-Y1000 |
| Production output | 80ton per hour |
| Ground hopper No. | 4 |
| Ground hopper volume | 8M3 |
| Hot elevator capacity | 80t/h |
| Screening capacity | 80t/h |
| No. of screen layers | 4 |
| Hot aggregate bin capacity | 20 T |
| Mixer capacity | 1000kg |
| Aggregate weighing capacity | 1000 kg |
| Aggregate weighing accuracy | ﹤±1.5% |
| Filler weighing capacity | 300 kg |
| Filler weighing accuracy | ﹤±1.5% |
| Asphalt weighing capacity | 300 kg |
| Asphalt weighing accuracy | ﹤±0.5% |
| Asphalt tank Volume | 20 M3 |
| Overall weight | 120T |
| Tower Power | 215 KW |
