| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB-Y |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Nude Packing |
| Delivery Time: | negotiation /3 month after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Moving Type: | Chassis On Wheel | Set Up Time: | 5 Days |
|---|---|---|---|
| Output: | 120t/h | Cold Feeder Volume: | 8 Cubic Meter |
| Hot Elevator Capacity: | 130ton Per Hour | Moving Units: | Seven |
| Temp. Control: | PID Method | Automation: | Auto/semi-auto/manual |
| High Light: | portable asphalt plant,asphalt mixing plant mobile |
||
30T filler tank full auto mobile asphalt plant with Ingersoll Rand air compressor

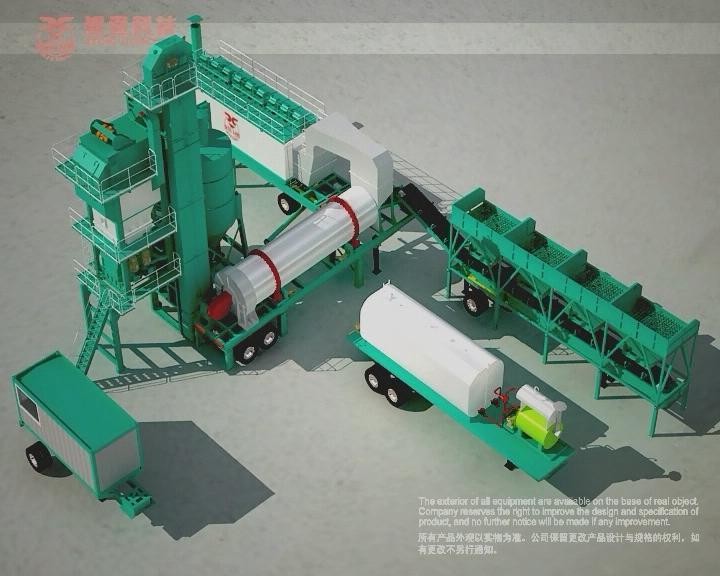

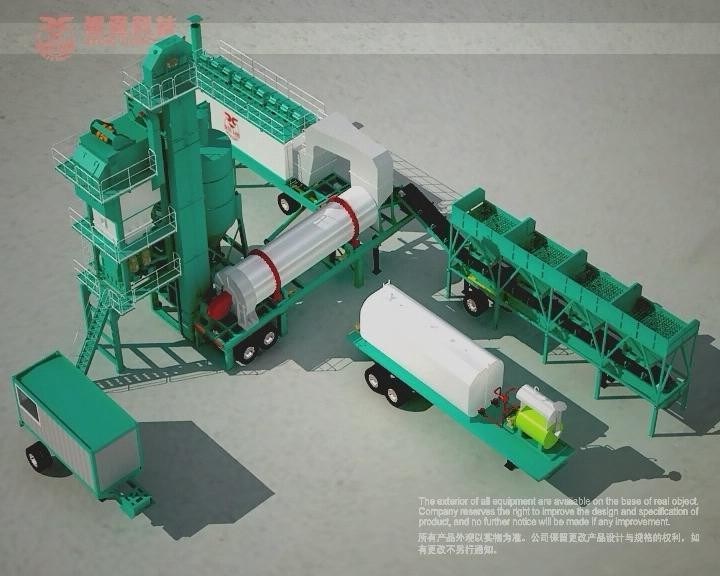

Brief introductions of mobile asphalt plant characteristics:
Xitogn Brand mobile type asphalt mixng plants consist of (7)seven individual mobile units, with 98% of mechanical parts mounted on chassis specially made by Vehicle manufacturers with characteristics of good security and brake performance.
Short erection time enables asphalt production to take place close to job site. Due to mobile quality or property, reduction on trasportation cost would be a further advantage.
Mixer up to 1500KG is used for the effective and valid capacity with mixing output up to 120ton per hour.
Each section has been competely pre-wired,pre-piped and pre-installed before leaving factory,contributing a lot to site installation. The output covers from 60tph to 160tph.
Thanks to mobile and easy-moving concept, construction sites could be set or selected flexibly and with efficiency. The asphalt mobile plant could be assembled or disassembled within very short time and is therefore quickly available for exchanging sites.

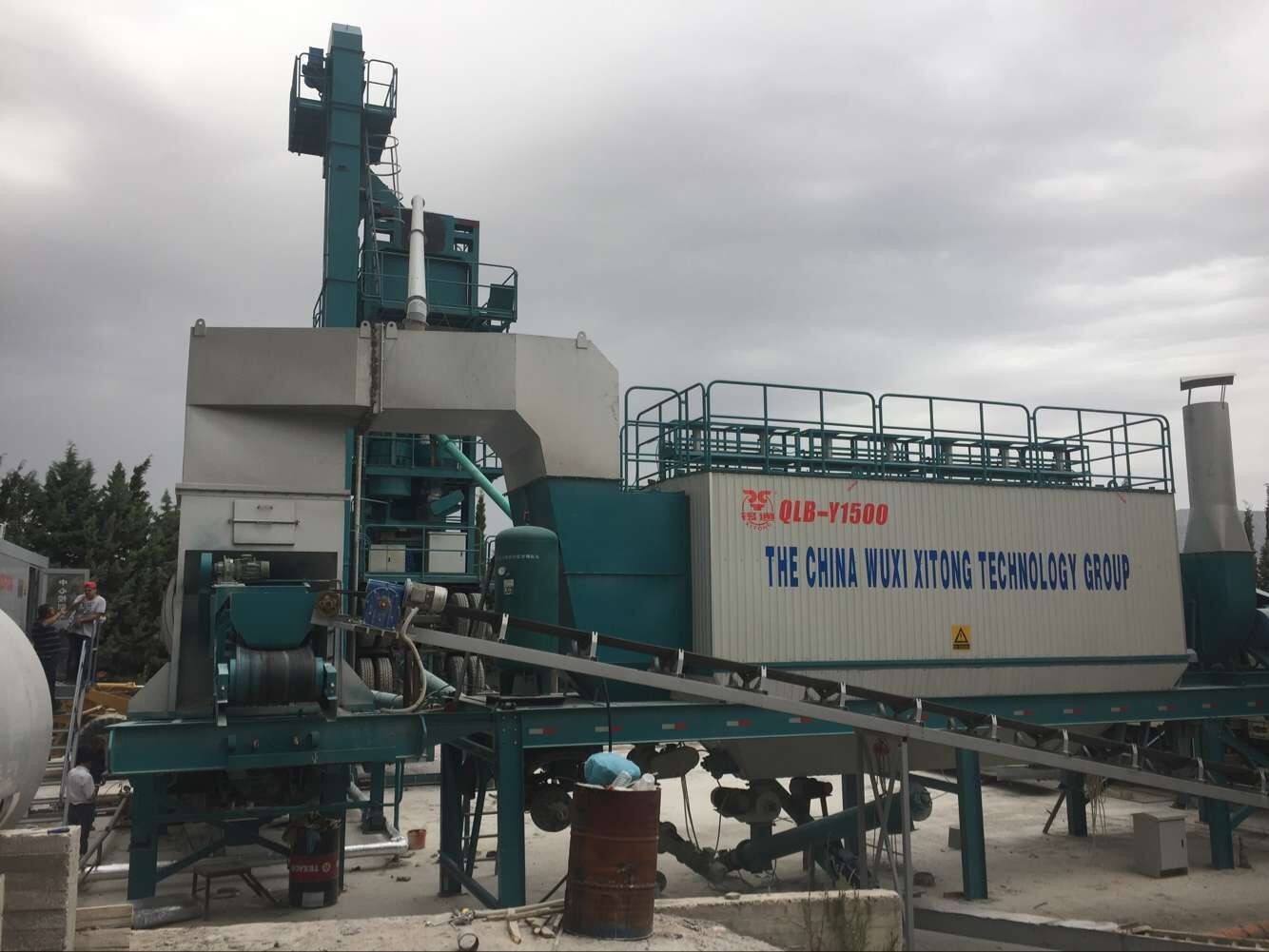

Item:QLB-Y1500 mobile asphalt mixing plant
productivity:max 120t/h(rated condition).
Usage:It suits to produce each grade asphalt materials in the regions and meets the requirement that the working place should move one place to another often.
Power source:380V/50Hz
Type: full mobile type and batch type with 7 units all based on chassis
Delivery attached documentation: Foundation drawing/ circuit diagram,spare parts and tools
Delivery time: 90 days after contract signed normally
| A | Dust collector mobile system(including blower and bag filter) | |||||
| 1 |
Primary volute casing collector (at the tail of the chassis in the following diagram) |
1set |
Gravity dust collecting, separate dust that ＞0.075mm Dust that ≤0.075mm be sent to bag collector. Performance separated dust grain dia.＜0.075mm Dust separation efficiency: ≥85% Screw conveyor 1# capacity: 25t/h(collected big particle to hot aggregate hoister for reuse) |
|||
| 2 |
Bag filter
|
Air back-flushing, USA Nomex material bag Size of filter bag: 512m2 Performance:≤20mg/Nm3 Normal operation temperature: 80~150℃ Max instant temp. of bag: 220℃
|
||||
| 3 | Screw conveyor 2# | 1 set |
Discharging waste filler that can not be reused Capacity: 25t/h |
|||
| 4 | Draught Fan, Smoke Path and Chimney | 1set |
Motorized operated damper
|
|||
| 5 | Single bridge chassis | 1 set | ||||
| B | Filler storage supply mobile system | |||||
| 1 | Filler storage bin(30m3) | 1set | With WAM bursting device | |||
| 2 | Screw conveyor 4#&5# | 2 set | From filler bin to filler weighing tank | |||
| 3 | Bin top dust collector | 1 set | WAM | |||
| 4 | Single –bridge chassis | 1set | ||||
