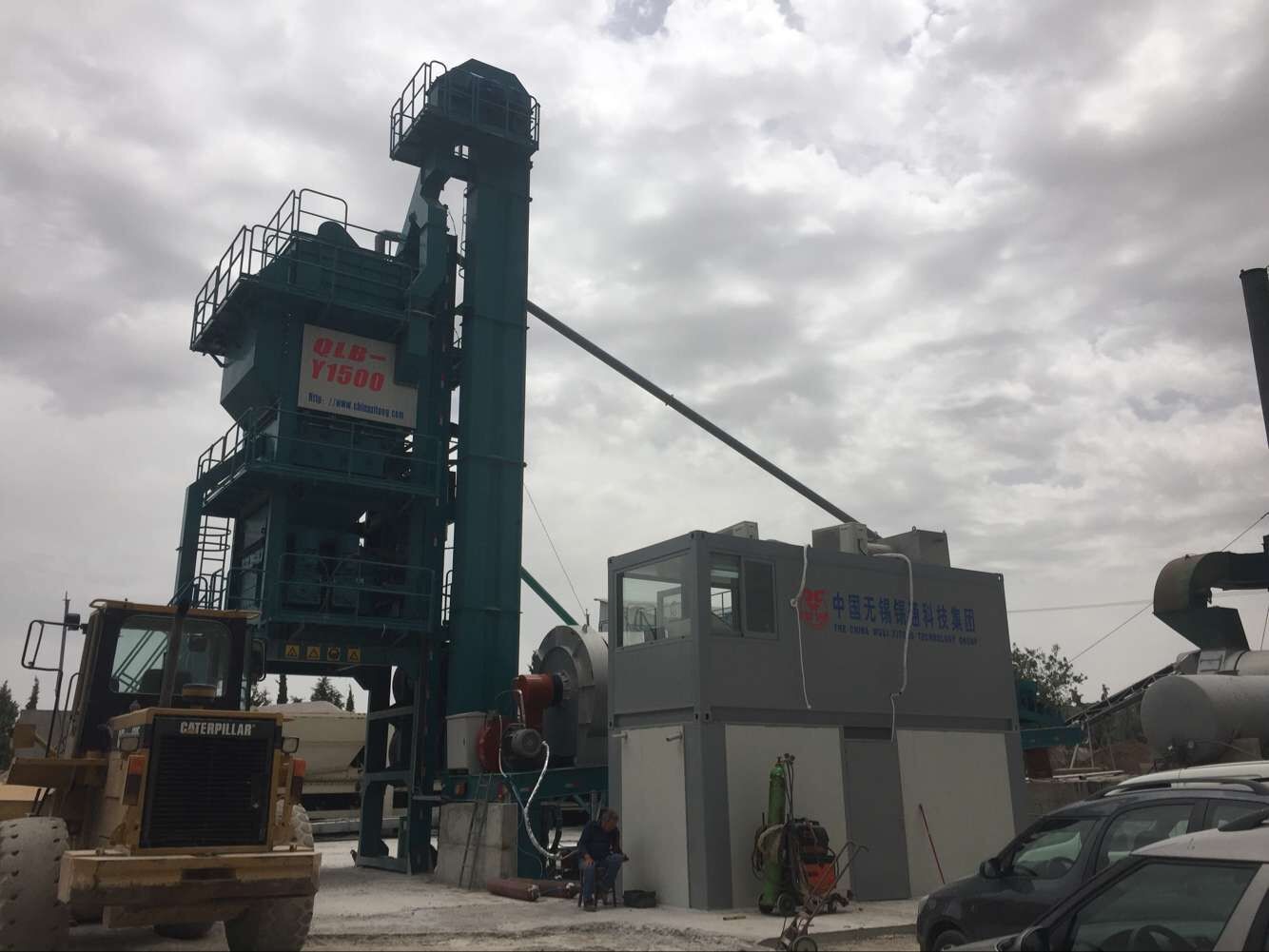

1.5t Mixing Tank Mobile Asphalt Plant 130ton Per Hour With Seven Standard Trucks

Basic Information
Certification: CE/CNAS/SGS/ISO
Model Number: QLB-Y
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Nude Packing
Delivery Time: negotiation /3 month after received your payment
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detail Information
Moving Type: Chassis On Wheel Set Up Time: 5 Days
Output: 120t/h Raw Material: Filler, Bitumen, Aggregate
Hot Elevator Capacity: 130ton Per Hour Moving Units: Seven
Temp. Control: PID Method Air Exhaust: 2 Cubic Meter/minute
Highlight:

portable asphalt plant

,

asphalt mixing plant mobile


Product Description

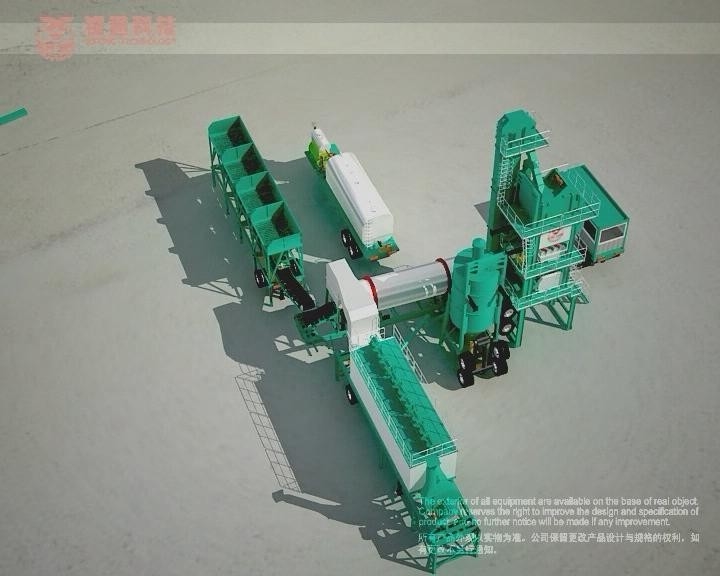

Low logistics cost 1.5t mixing tank mobile asphalt plant with seven standard trucks





What we can do for you:

  1. Our rich experiences of export make us acquainted with foreigner sites conditions and minimizes equipment failure rate, which brings great usage experience to customer. Our equipments exported to Indonesia, Malaysia, the Philippines, Pakistan, Russia, Kazakhstan, Tajikistan, Turkmenistan, Qatar, Saudi Arabia, Eritrea, Ethiopia, Sudan, Libya, Algeria, Senegal, Guinea, Sierra Leone, Liberia, Cameroon, Tanzania, Zambia, Mozambique, Botswana and Colombia, etc. second, all our projects provides are “turnkey solutions”
  2. The group established in 1993, 23 years’ majoring in asphalt mixing plants makes us skilled in manufacturing a mature enough product.
  3. Offer professional guidance about equipment installation and free debugging, equipment operators from customer side will have free training about plant operation and maintenance
  4. Quickly and accurately provide the user necessary equipment consumable parts and accessories, within warranty period, important parts would be delivered through airway and free of charge.
  5. Provide life-long technical support and help user solve the problems in the equipment operation process via remote control and diagnose system, which is also called Internet of Things



1.5t Mixing Tank Mobile Asphalt Plant 130ton Per Hour With Seven Standard Trucks





Main frame mobile system(mixing tower mobile system)
1.

Vibration Screen

(WAM double motors)

1set

Single shaft 4 layers

With inspection door for maintenance and changing screen meshwork

Sieving Capacity: 120t/h(0-3mm≤35%)

Bore Dia. :6×6,11×11,19×19,30×30

2. Hot aggregate bin 4sets

Four units with total capacity 20T, 50mm rock-wool

Color steel insulation, damped rotation type level indicator;

Each bin with inspection hole;

Aggregate overflow pipeline

3 Aggregate weighing 1set USA Toledo sensor,1500kg/batch
4 Filler weighing 1set USA Toledo sensor,300kg/batch
5 Asphalt weighing 1set USA Toledo sensor,300kg/batch
6 Pneumatic butterfly valve 2sets Italia WAM
7

Screw conveyor 3#



1set

Filler from weighing tank to mixing tank(WAM))



8 Asphalt spraying pump 1 set
9 Mixing tank 1set

Mixing system:capacity 1500kg/batch,rated cycle 45~50 second



Boneng Brand helical speed reduction gear(2 sets)

10 Electronic scale 3 sets

For weighing of aggregate, filler& asphalt ,

Japan Chimei(pt650 see attach diagram)

11 Main Frame Equipped With Platform, Ladder and Guard Railing 1 set
12 Double-bridge chassis 1set
