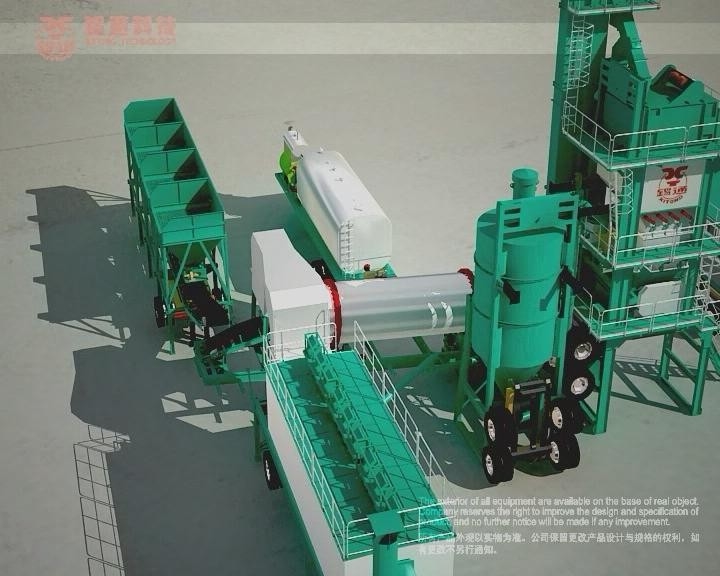

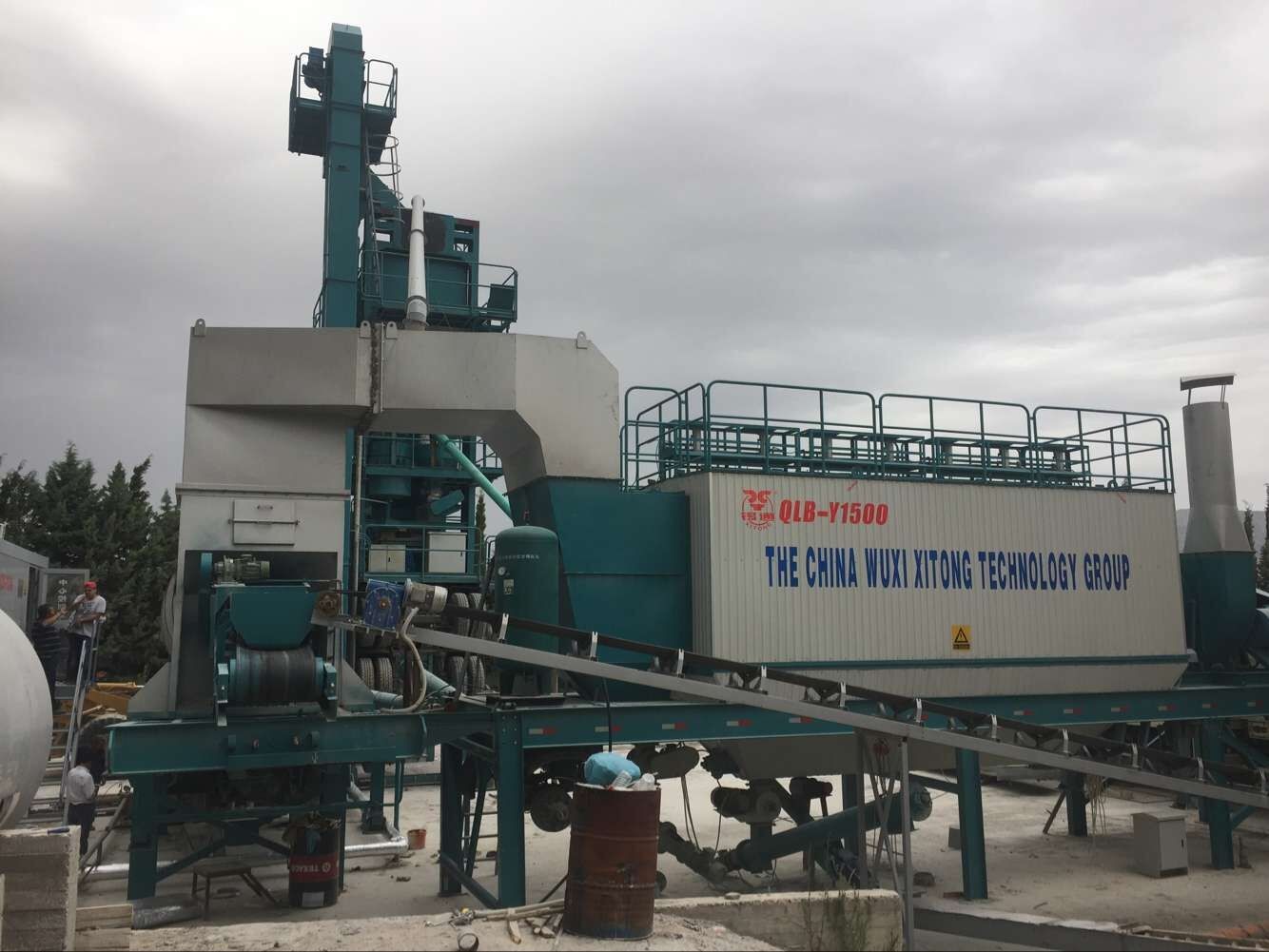

100% Mobile Type 70DB Noise Control Asphalt Plant With 4m Aggregate Feeding Height

Mobile Aggregate Supply System

1.1

Cold Aggregate Hoppers

Composition: cold aggregate hopper + belt feeder + collecting belt conveyor 1 set

Mode: semi-trailer integrated assembly + frequency control feeder

1.1.1 Hopper: 4 units, charging height 4.4m, the compartment net installed at feed inlet can prevent large-size aggregate from entering the hopper

Single feed inlet: length × width = 3.5×2.35m

Single hopper capability: 8.5m³ (flat hopper) 11.5m³ (full hopper)

1.1.2 Belt feeder: 4 units

Mode: AC frequency control

Belt width: 600mm

Productivity: sand: 130t/h

Aggregate:129t/h (20mm﹤aggregate diameter﹤40mm)

Power: 2.2kW

Accuracy: ±1.5%

1.1.3 Hopper wall vibrator: 2 units

Power: 0.25kW

1.2

Collecting Belt Conveyor

Belt width: 650mm

Productivity: 120t/h

Motor power: 5.5kW

Mobile Drying System

2.1

Feeding Belt Conveyor

Belt width: 650mm

Productivity: 200t/h

Motor power: 4kW

2.2

Drying Drum

Size: 1.840m (diameter) ×8.1m (length)

Installation inclined angle:4º

Drum revolving speed: 8r/min

Drive mode: four drive wheel attrition drive

Drive motor: 7.5kW×4 units

Drum material: steel plate 20g

Drum heat preservation: 50mm mineral wool covered with stainless steel

2.3

Oil-Burner

Oil-burning: High pressure Atomizing

Brand: Freda

(air consumption: 2m³/min;

air pressure 0.6-0.7MPa)

Composition: air blower, fuel pump, console,

screw compressor: 15kW*1 set

Automatic oil-burning: available for diesel, heavy oil and residual oil

2.4

Fuel Tank

Diesel tank: 10tons 1 unit
