Dupong Bag Two - Step Dust Collection Mobile Asphalt Plant With Sturdy Automotive Chassis

Basic Information
Certification: CE/CNAS/SGS/ISO
Model Number: QLB-Y
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Nude Packing
Delivery Time: negotiation /3 month after received your payment
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detail Information
Moving Type: Chassis On Wheel Mixing Cycle: 45 Seconds
Dust Collecting: Two-stage Cold Feeder Volume: 8 Cubic Meter
Hot Elevator Capacity: 130ton Per Hour Moving Units: Seven
Failure Diagnose: Remote Control/long Range Diagnose Function Atomization Mode: High Pressure Electric Spark
Highlight:

portable asphalt plant

,

portable batch plant


Product Description

Dupong bag two-step dust collection mobile asphalt plant with sturdy automotive chassis



Pre-sale Service

After the contract comes into effect, the company will offer customers the layout, a foundation drawing and a technical data about the product like the base requirement about static force.

If needed, we can offer training prior to the equipment installation for your operators and maintenance men until they can operate the equipment independently. During the period, we will take care of trainees' room and board.



After-sale Service

The company will dispatch the engineering technicians for free installation and debugging of the whole equipment. If needed, we can also offer professional interpretation and on-site training for relevant operators and servicemen from customers. All of the help will not leave until one month after the equipment can function well. The prolonged service fees will be at customers' cost.

The product quality is usually guaranteed for 1 year; during this period, we will provide repair service for any problem resulted from the product quality. And we can exchange the equipment part that is out of service for customers free of charge and also promise the one-year quality guarantee against the changed part.

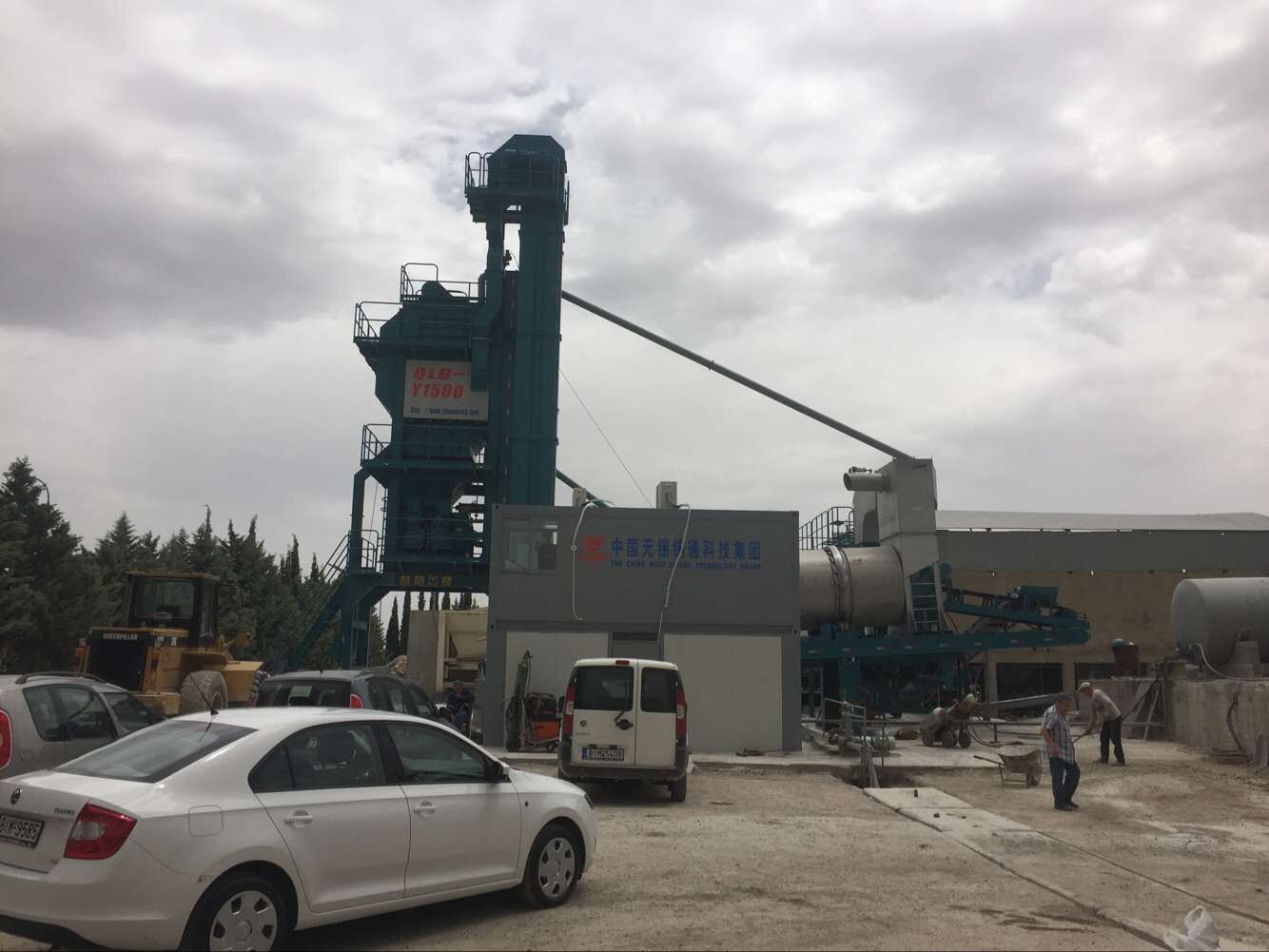

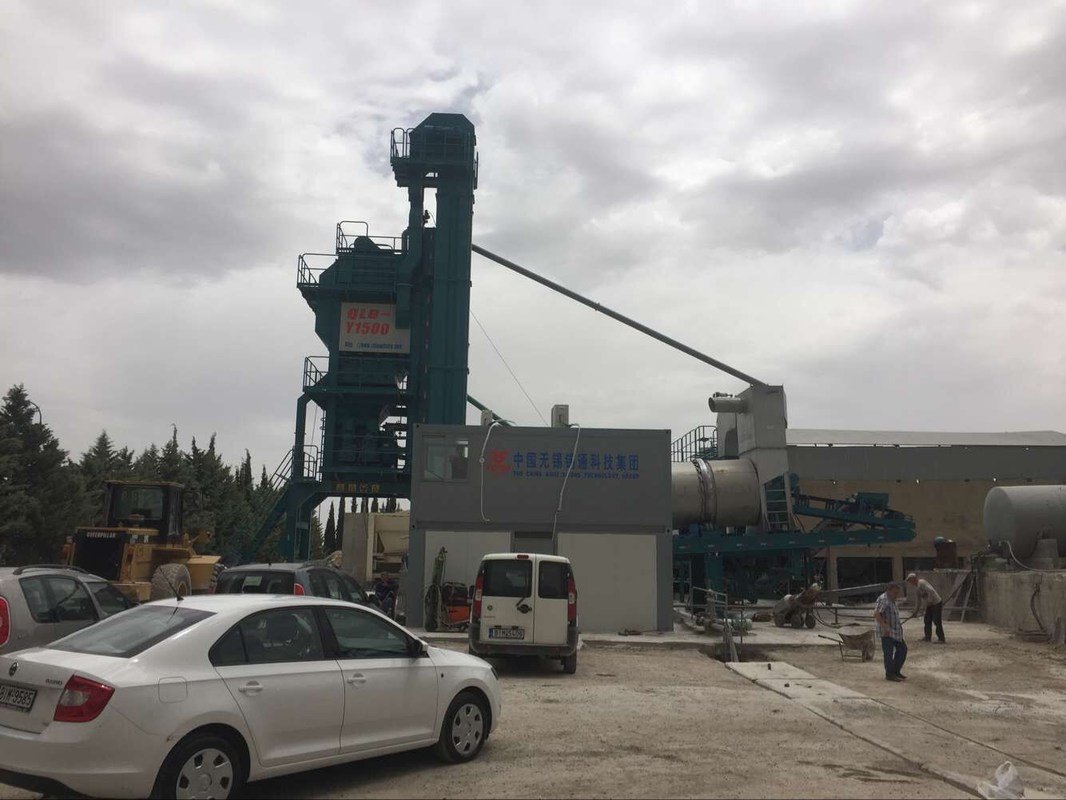

Dupong Bag Two - Step Dust Collection Mobile Asphalt Plant With Sturdy Automotive Chassis

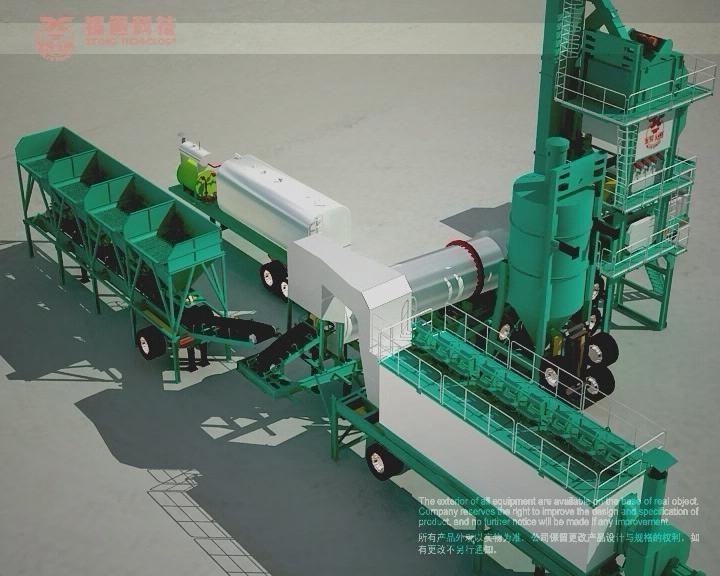

Dupong Bag Two - Step Dust Collection Mobile Asphalt Plant With Sturdy Automotive Chassis

No. Name Quantity Remark
A Supply system Of cold aggregate mobile system
1 Cold Aggregate Powder Hopper (2 with wall vibrator) 4pcs Each hopper with inlet separated screen for rough & waste materials, shortage monitoring&alarm device.
Hoper capacity: 8m3
Feeding width/height:3.3m/4m

2



Belt feeder



4 sets



Inverter control

Belt width: 600 mm

Max feeding capacity;100t/h

Belt length: 3200mm

(2 hoppers with wall vibrators)

4 Geared reducer for ground hopper(SEW) 4 sets
5 Collective Belt Conveyor 1 set

Seamless high tenacity rubber belt and antiskid and rubber coating driven roller.

Belt width: 600 mm

Max feeding capacity;120t/h

Drive: cycloidal pin gear speed reducer(Xijian Brand)

6

Rough & waste materials net



4 pcs

Bore dia.:100×100mm



7 Single bridge chassis 1set





B Drying drum and burner mobile system(with transition conveyor, hot aggregate hoister and drying drum)
1 Transition conveyor 1 set

Belt width: 600mm

Conveying capacity: 120t/h

Drive: 1 set of cycloidal pin gear speed reducer(Xijian Brand)

2 Drying drum 1set

heat-proof layer outside with stainless steel plate

Dia.×L=Φ1840mm×8100mm

4 sets of Hardened reducer(Boneng Brand)

3 Burner(diesel) 1 set

Brand: Freda

Fuel type: diesel

Max fuel spraying: ≤750kg/h

Oil consumption: 6kg/t



4 Temperature sensor 1 set To control automatically the fire in drum
5

Hot aggregate hoister



1 set

Gravitational discharge, anchor chain(bucket type)

Hoisting capacity: 120t/h

Drive: 1 set of shaft mounted speed reducer.(Boneng Brand)
