| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Container |
| Delivery Time: | negotiation /2 month after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 8 set per month |
| Product Model: | QLB-2000 | Mixing Cycle: | 45 Seconds |
|---|---|---|---|
| Mixing Method: | Intermittent Compulsory | Quality Control: | CE Standard |
| Specification: | CE/PCT/ISO | Technical Support: | Remote Control |
| Weighing Accuracy: | 0.1% | Heating Method: | Thermal Transmission |
| High Light: | all mix asphalt plant,bitumen mixing plant |
||

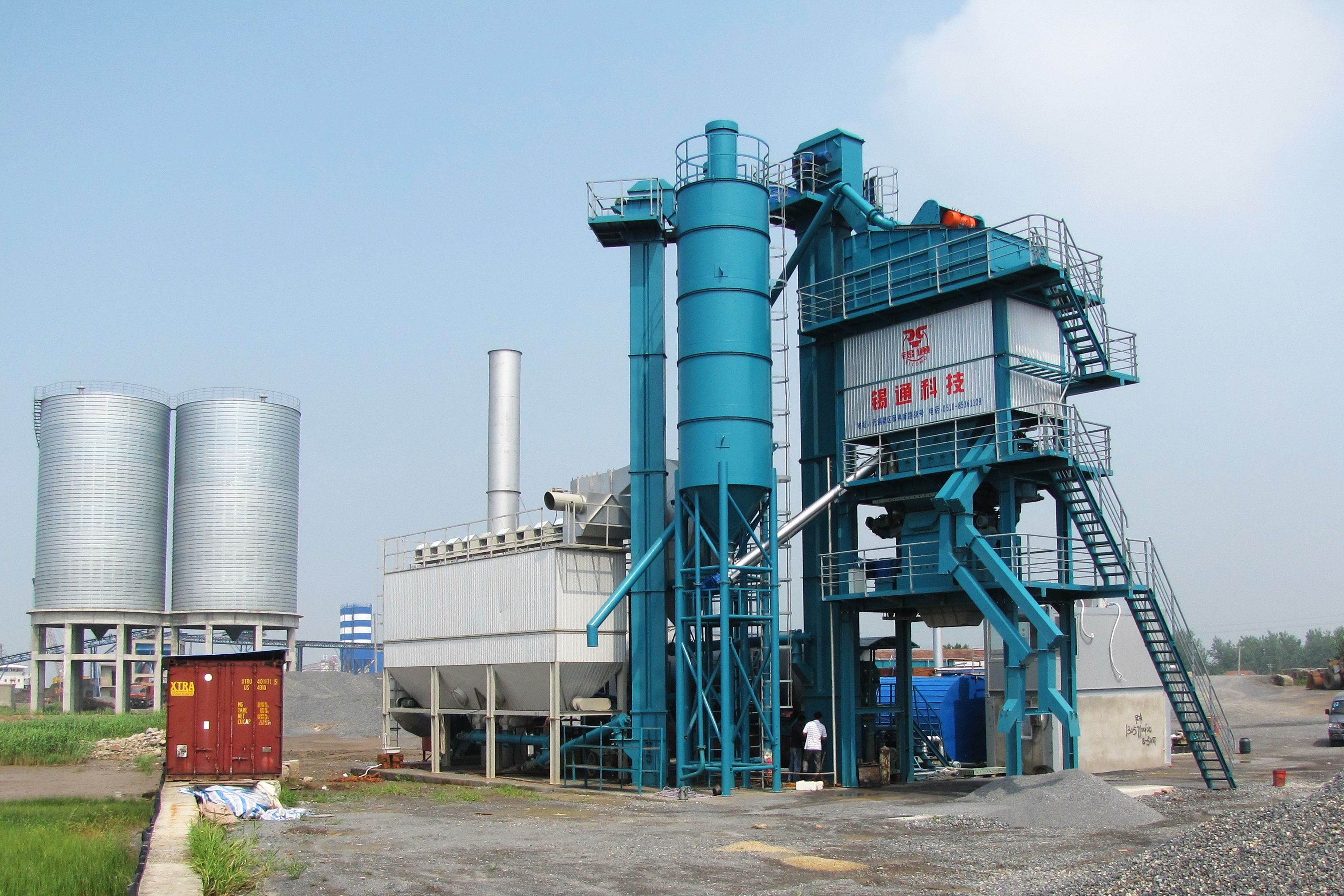

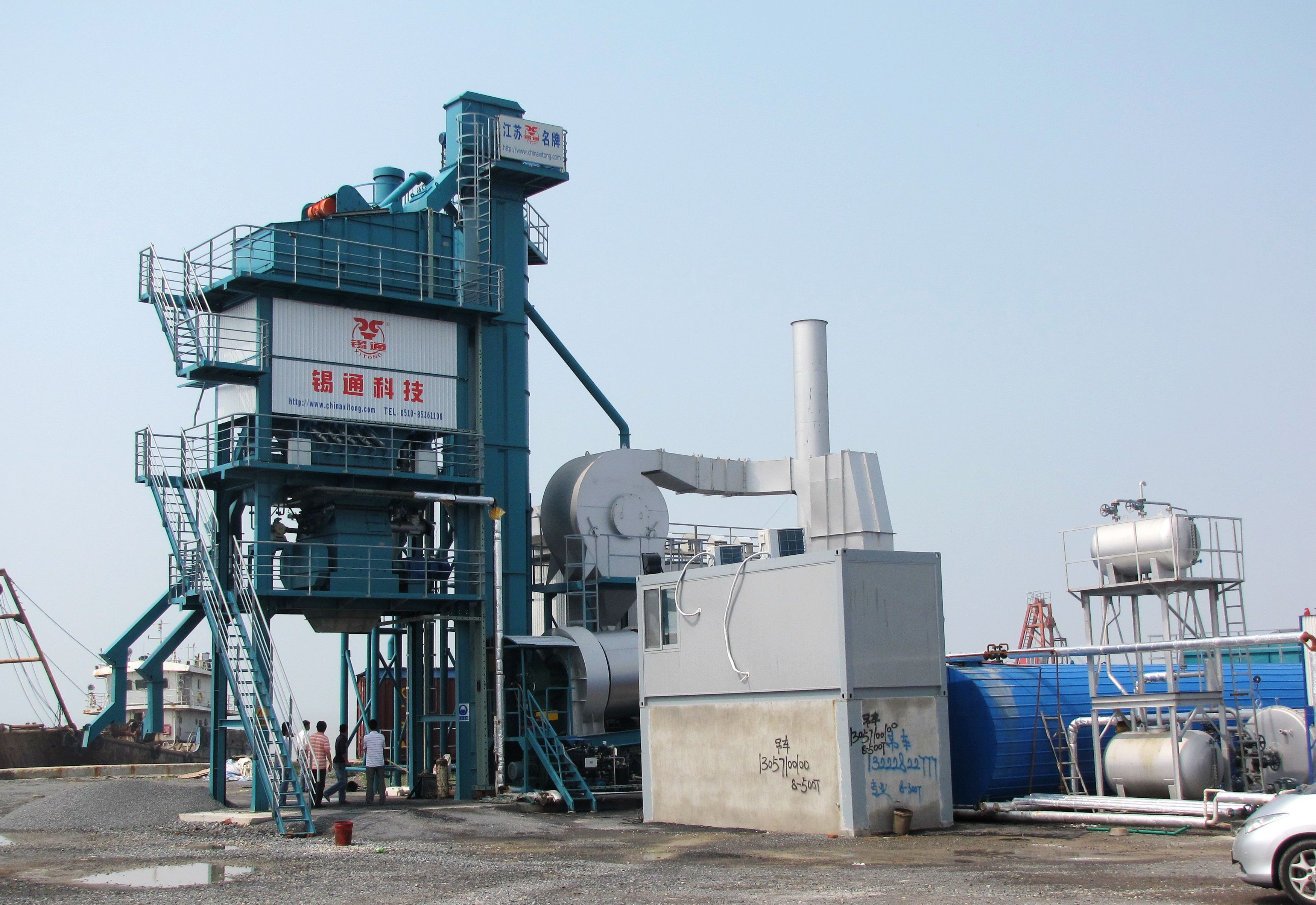

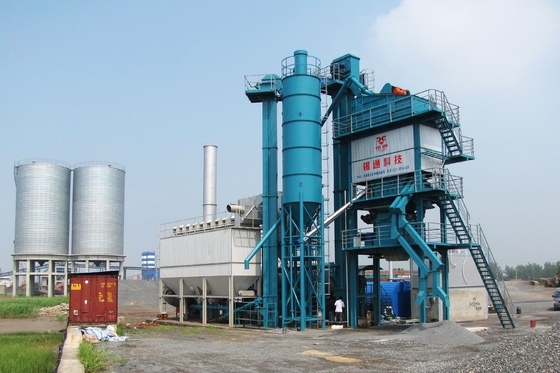

45 seconds mixing cycle 160t/h asphalt batching plant for asphalt aggregate filler mixing
Description for mixing tank
1. Mixing tank
The double vortex mixing tank will reach to a optimum mixing effect, mixing arm, blade and lining are made of special anti-frication cast steel, all linings are bolted outside of the tank, easy for maintenance and change. Mixing tank is driven by double-reducer, with oil-bath gearing working synchronously. Full open arc type discharging door can exhaust finished mixture rapidly which effectively reduces mixing cycle.
The mixing tank had thermal oil preservation, to prevent heating loss, the unloading door is driven by two cylinders, a collective hopper is mounted at the below, to ensure no asphalt mixture falling when unloading.
*Type: Double-shaft vane forced mixer
*Mixing capacity: 2000kg
*Mixing time(s): 45s
*Drive: Tilting gear speed reducer
*Power: 37kw×2 sets
*Lining: High chrome alloy cast steel with high strength: life time≥200,000tons mixture
* Blade: High chrome alloy cast steel with high strength: life time≥200,000tons mixture
2.0 Fine material (filler) storage supply system
System has 2 storage bins, one for mineral powder and another for waste powder, each bin has damped rotation type level indicator and straight ladder with safety ring; Safety rail, dust collector and safety valve are set on bin top; arch breaking air cushion is installed at pyramid part of bin outlet to prevent filler from backlogging. Filler bin and waste powder bin are equipped with screw conveyor (Italia WAM) to send filler directly to weighing hopper.
2.1 Filler(mineral powder) bin
By air force, filler is sent into storage bin through pipeline. Audible and visual alarm will be given when filler is full, reminding operator against ash overflow. Filler bin is equipped with screw conveyor(Italia WAM), which send the filler directly to filler weighing hopper.
* Type: Stand barrel type
* Capacity: 30m3
2.2 Waste powder storage bin
Waste powder from bag type dust collector will be sent into waste storage bin through screw conveyor and filler hoister. Waste powder storage bin is equipped with screw conveyor (Italia WAM) which send waste powder directly to waste powder weighing hopper.
* Type: Stand barrel type
* Capacity: 30m3
2.3 Waste powder hoist
Hoister is hopper type, using belt to hoist, with characteristics of smoothing running without noise, fast hoisting speed and high efficiency. There is chain spring tensioning device at the both sides of hoister bottom; Platform is installed at top for maintenance of hoister.
* Type: Hopper-type, gravity discharging
* Capacity: 25t/h
* Drive: Cycloidal pin gear speed reduce
* Power: 4 kw
2.4 Screw conveyor
* Filler weighing screw conveyor: 5.5kw
* Waste powder weighing screw conveyor: 5.5kw
* Waste powder conveying screw conveyor: 3 kw×2 sets
* Waste powder discharging screw conveyor: 3 kw×1set
Specification
QLB Series Asphalt hot mix plant specification table
| Name | Specification | ||||||
| Model | 600 | 1200 | 1500 | 2000 | 2500 | 3000 | |
| Capacity of production | 48tph | 96tph | 120tph | 160tph | 200tph | 240tph | |
| Cold bin volume | 8m3 | 9m3 | 10m | 10m3 | 12 m3 | 12m3 | |
| Dust removing type | Gravity drop type and bag filter(air back fluch) | ||||||
| Fuel | Diesel/masut/Natural gas | ||||||
| Volume/number of hot bin | 12t/4 | 32t/4 or 5 | 40t/4 or 5 | 50t/5 | 60t/5 | 80t/5 | |
| Precision of aggregate weighing | Less than ±0.1% | Less than ±0.1% | |||||
| Precision of powder weighing | Less than ±0.16% | Less than ±0.16% | |||||
| Precision of asphalt weighing | Less than ±0.18% | ||||||
| Mixer ability KG/batch | 600 | 1200 | 1500 | 2000 | 2500 | 3000 | |
| Volume/number of asphalt tank | 10m3/2 | 16m3/2 | 30m3/2 | 30 m3/3 | 50 m3/2 | 50 m3/3 | |
| Volume of finished product bin(T) | - | 60 | 100 | 120 | 160 | ||
| Total power(KW) | 185 | 280 | 345 | 470 | 608 | 680 | |
