Place of Origin: | China |
---|---|
Brand Name: | Xitong |
Certification: | CE/CNAS/SGS/ISO |
Model Number: | QLB |
Minimum Order Quantity: | 1 set |
Price: | negotiation |
Packaging Details: | Container |
Delivery Time: | negotiation /2 month after received your payment |
Payment Terms: | T/T or L/C |
Supply Ability: | 8 set per month |
Product Name: | Asphalt Mixing Plant | Mixing Cycle: | 45 Seconds |
---|---|---|---|
Reducer: | SEW | Burner: | Italia Ebico |
Aggregate Hopper: | 2+3 Combination(5 Hoppers) | Quality Guarantee: | 1 Year |
Vibration Motor: | 0.2KW | Feeding Height: | 3.6m |
Mixer: | 2000kg/batch | ||
High Light: | all mix asphalt plant,asphalt mixer plant |

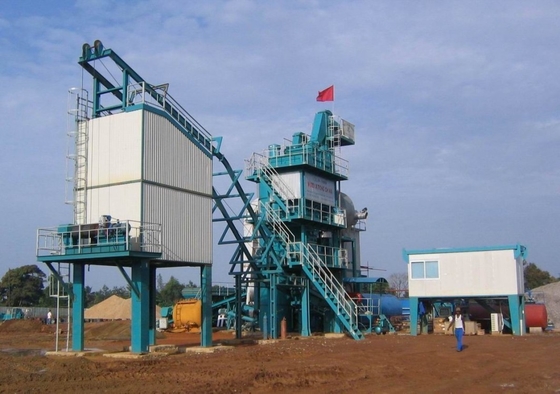

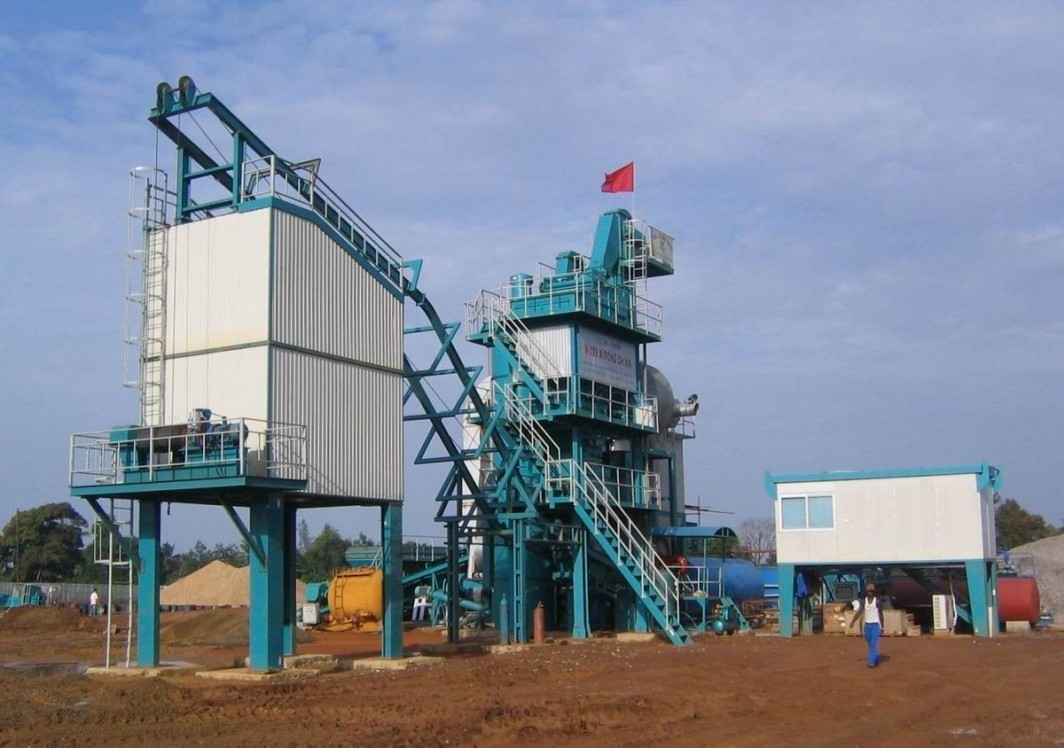

0.8% bitumen metering accuracy asphalt plant with aggregate 180tph drying capacity 70dB noise

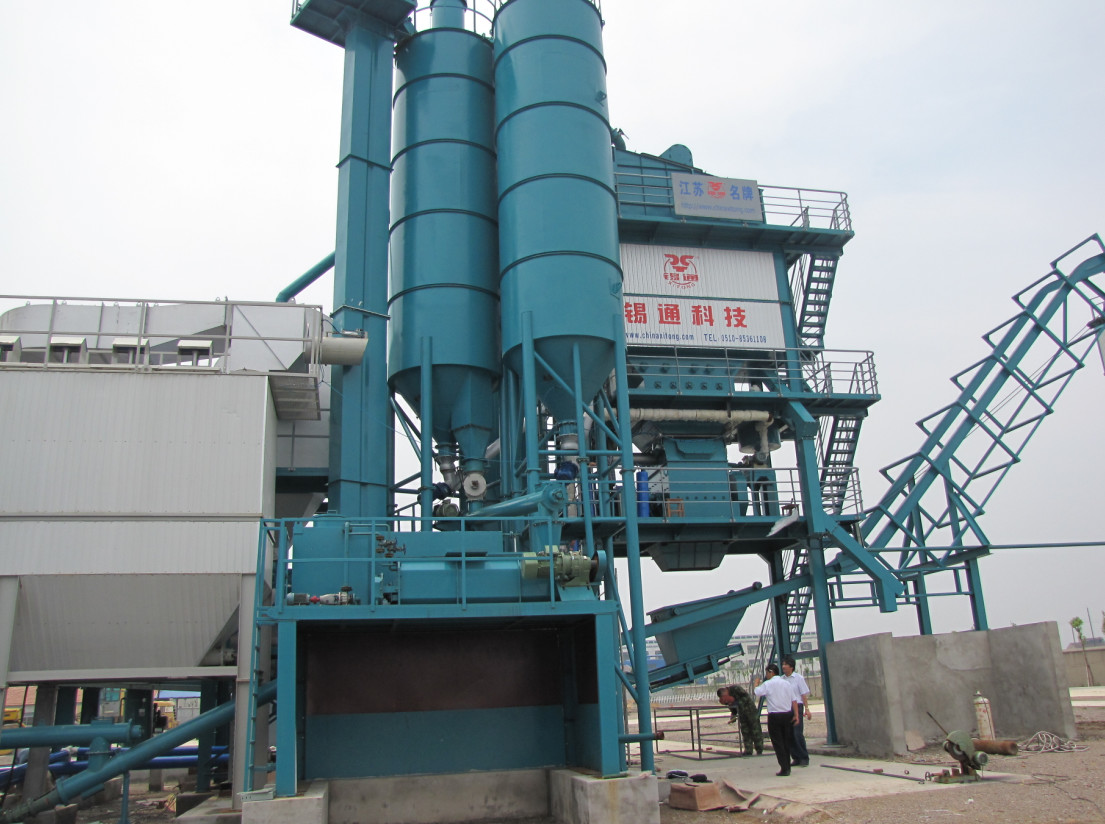

1. Hot silo for aggregate storage
After being sieved, hot aggregate of different diameter would be stored in relative hot silo, total volume of those silos is about 50T, 50mm thickness rock-wool that covered outside keeps and reserves the temperature of aggregate in that 5 hot silo.Outside the rock-wool, the wall is covered with stripe color steel plate, with exllent performance for heat insulation., which makes temperature reduce less than 20℃ in 12 hours. Level indicator is set for realtime monitoring the inside level of aggregate. Ladder-shaped segregation boards inside silo preventing inside tructure of silo from wear.Inspection hole and overflow pipeline are equipped for each silo.
2. Mixer-agitator tank
mixer-agitator tank is double horizontal shaft vortex type, which could reach best mixing performance, mixing arm, blade and linier are made of special anti-frication cast steel, all liners are bolted outside of the tank, which is easy for replacement. Mixer-agitator tank is driven by double-reducer, by oil bath type gear working synchronously. Full open arc type emptying door could discharge finished asphalt product quickly which effectively reduces mixing interval.
The mixer-agitator tank is heat preserved by heat tranfer oil, to keep heat to the maximum, the hydraulic gate for unloading is driven by two cylinders,under which there is a collecting hopper, to make sure that no asphalt remains scattering during discharging.
Type: Double-shaft vane forced mixer
* Mixer capacity: 2000kg
* Mixer time(s): 45s
* Drive: Tilting gear speed reducer
* Power: 37kw×2 sets
* Lining plate: High chrome alloy cast steel with high strength: life time≥400,000 batches of asphalt product mixture
* Mixing blade: High chrome alloy cast steel with high strength: life time≥400,000 batches of asphalt product mixture
Specification
QLB Series Asphalt hot mix plant specification table
Name | Specification | ||||||
Model | 600 | 1200 | 1500 | 2000 | 2500 | 3000 | |
Rated output | 48tph | 96tph | 120tph | 160tph | 200tph | 240tph | |
Cold aggregate bin cubage | 8m3 | 9m3 | 10m | 10m3 | 12 m3 | 12m3 | |
Dedusting method | Gravity drop type and bag filter(air back fluch) | ||||||
Fuel type available | Diesel/masut/Natural gas | ||||||
Volume/number of hot aggregate silo | 12t/4 | 32t/4 or 5 | 40t/4 or 5 | 50t/5 | 60t/5 | 80t/5 | |
Accuracy of aggregate metage | Less than ±0.1% | Less than ±0.1% | |||||
Accuracyof powder metage | Less than ±0.16% | Less than ±0.16% | |||||
Accuracy of asphalt metage | Less than ±0.18% | ||||||
Agitator ability KG/batch | 600 | 1200 | 1500 | 2000 | 2500 | 3000 | |
Volume/number of bitumen bin | 10m3/2 | 16m3/2 | 30m3/2 | 30 m3/3 | 50 m3/2 | 50 m3/3 | |
Volume of finished ready asphalt product bin(T) | - | 60 | 100 | 120 | 160 | ||
Total power(KW) | 185 | 280 | 345 | 470 | 608 | 680 |
