| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Nude packing for bulk ship |
| Delivery Time: | negotiation /2 month after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 8 set per month |
| Series: | QLB-2000 | Filtering Area: | 710 Square Meter |
|---|---|---|---|
| Draught Fan: | 90kw | Total Weight: | 300T |
| Total Power: | 450KW | Mixer: | Double Shaft Forced Mixing |
| Color: | Customization | Fuel: | Diesel/mazut/natural Gas |
| Filler Tank: | 30CBM | ||
| High Light: | all mix asphalt plant,asphalt mixer plant |
||

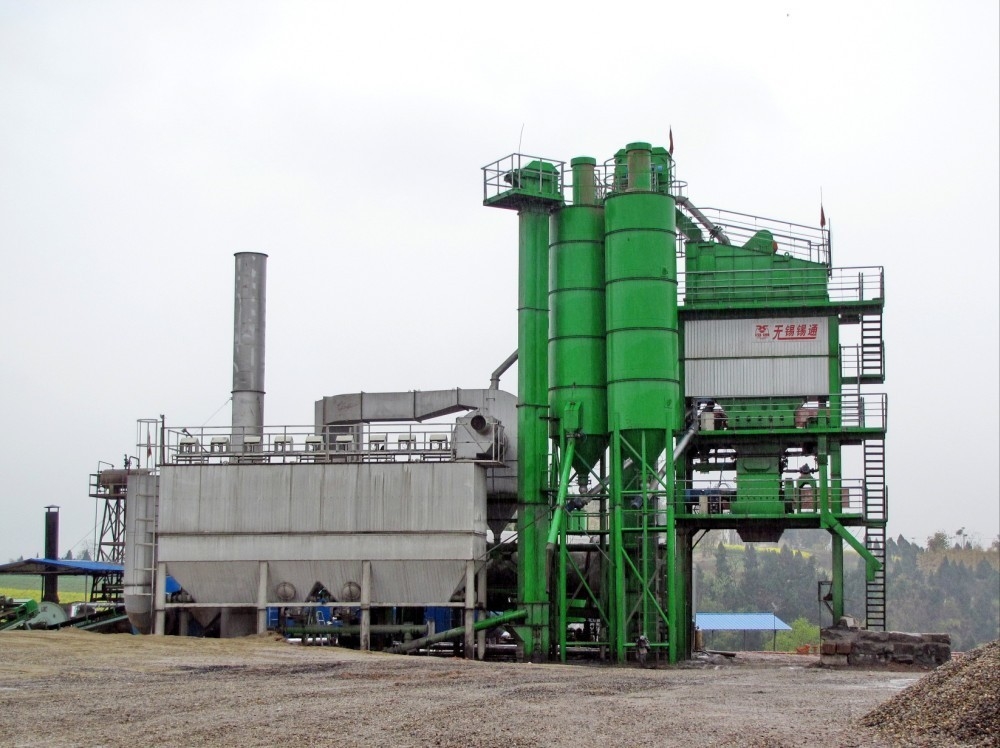

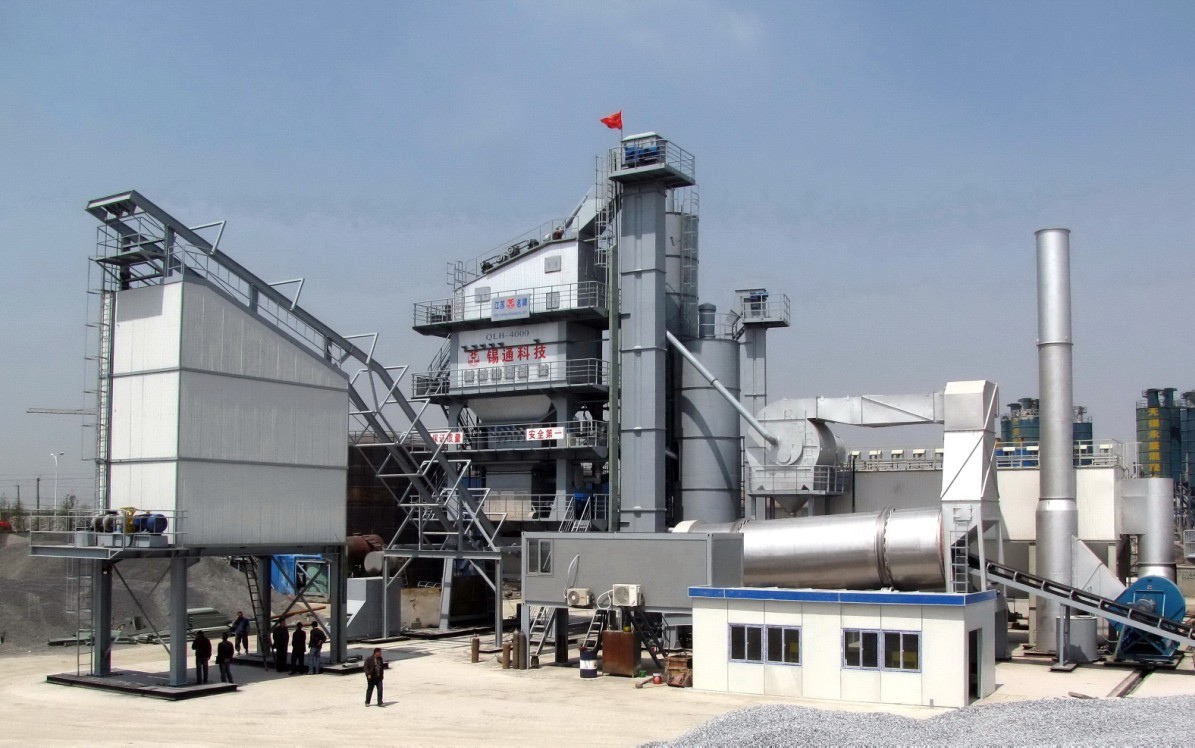

120T ready silo wearable liner asphalt hot mix plant with nomex bag collector 120Mu painting
Chief advantages of QLB Series of batching type asphalt mixing equipment:
1. Thanks of modular design of plant structure, transport,installation and maintenance would be fast and time-saving.
2. Reasonable design of rasing plate in drying drum makes aggregate inside form material curtain for better heat effort, advanced combustion heating technology improves efficiency and reduce energy consumption.
3, realize stepless adjustment of feeding quantity for each belt feeder by frequency converter.
4, Rubber belt is jointless, high-strength and high-tearproof double-layered for raw aggregate conveyor.
5,The easy-maintenance vibrator gives an extreme stable performance to the vibrating screen. The screen is made of wear-resistant materials for better performance.Aggregate passing rate is over 90%, meanwhile the blocking ratge is below 10%.
6, With double 37KW reducers, the mixer works in the form of double horizontal shaft type.Mixing blade and mixing arm is made of high strength and high chromium alloy cast steel, ensuring their mixing life more than 200,000 batches.
7, Bag-type dust collector is made of NOMEX materials. With max temperature-resistance degree up tp 220℃. The first step dust collecting collects small particle of aggregate to hot elevator, the second step dust collecting collects recycled filler for reuse or wasted.
Specification
LB Series Asphalt Mixing Plant Data Form
| Name | Specification | ||||||||
| Series | QLB-600 | QLB-1000 | QLB-1500 | QLB-2000 | QLB-2500 | QLB-3000 | QLB-4000 | QLB-5000 | |
| Rated capacity | 48t/h | 80t/h | 120t/h | 160t/h | 200t/h | 240t/h | 320t/h | 400t/h | |
| Volume of aggregate bin | 8m3 | 9m3 | 10m3 | 10m3 | 12 m3 | 12m3 | 16m3 | 16m3 | |
| Quantity of cold aggregate hopper | 3 | 4 | 4 | 5 | 5 | 5 | 6 | 6 | |
| Dust removing method |
Two step dust collecting(Gravity type and bag filtering type dust collecting) |
||||||||
| Fuel | Diesel/mazutl/natural gas/coal powder | Diesel/heavy oil | |||||||
| Capacity of hot aggregate bin | 12t | 32t | 40t | 50t | 60t | 80t | 95t | ||
| Numberof hot aggregate bin | 4 | 4 or 5 | 4 or 5 | 5 | 5 | 5 | 6 | ||
| Aggregate metering accuracy | Less than ±0.5% | Less than ±0.5% | Less than 0.5% | ||||||
| Filler metering accuracy | Less than ±0.5% | Less than ±0.5% | |||||||
| Bitumen metering accuracy | Less than ±0.35% | ||||||||
| Mixing tank capacity KG/batch | 600 | 1000 | 1500 | 2000 | 2000 | 2000 | 2000 | 5000 | |
| Volume/number of bitumen tank | 10m3/2 | 16m3/2 | 30m3/2 | 50 m3/2 | 50 m3/2 | 50 m3/3 | 50 m3/4 | 50 m3/5 | |
| Volume of ready product storage silo(T) | - | 60 | 100 | 120 | 160 | 220 | |||
| Installed power(KW) | 185 | 248 | 345 | 470 | 608 | 680 | 900 | 980 | |
