| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB-Y |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Nude Packing |
| Delivery Time: | negotiation /3 month after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Moving Type: | Chassis On Wheel | Air Exhaust: | 2 Cubic Meter/minute |
|---|---|---|---|
| Output: | 80t/h | Driven: | Semi-trailer |
| Noise: | ≤70DB | Attitude: | ≤1000M |
| Heating Method: | Heat Transfer Oil | ||
| High Light: | Mobile mixing plant,asphalt production plant |
||

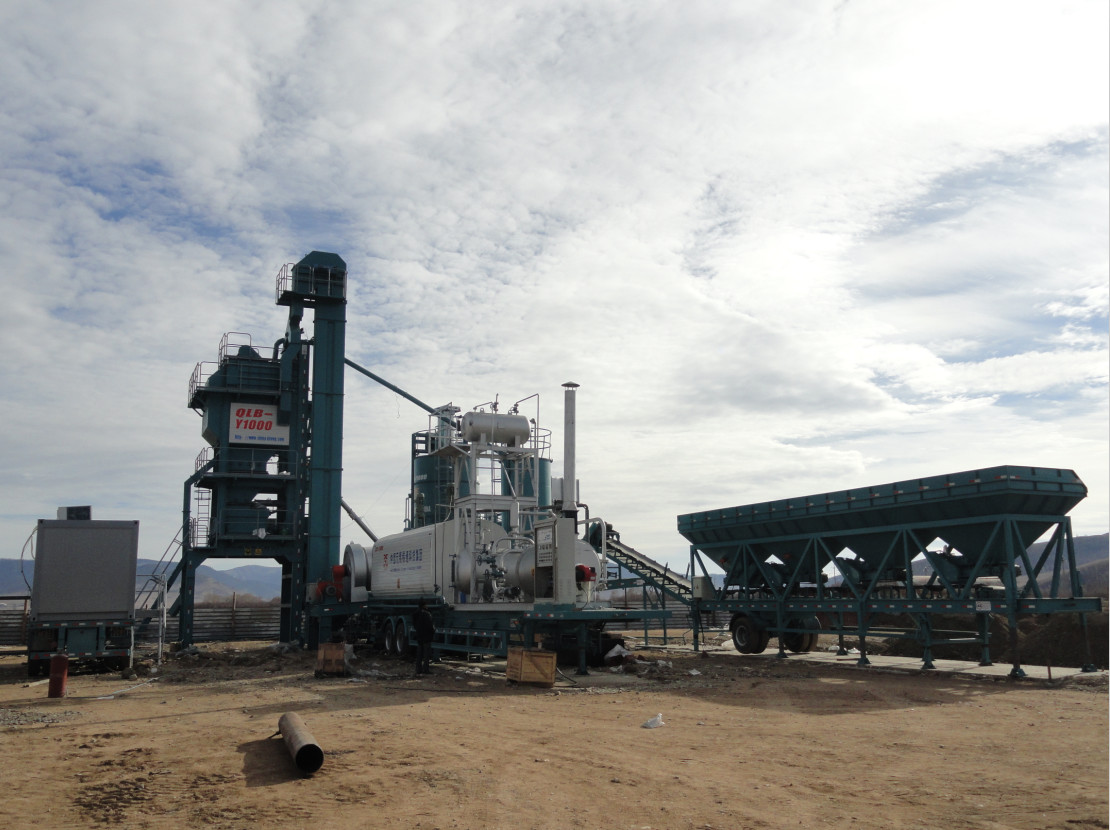

200KW Installed power Mobile asphalt batch mixing plant with 6.5KG diesel comsumption
Characteristic of Control systems:
The Xitong Control system features simple and intuitive operation, a very clear sturcture and perfectly realistic visualisation. All functions and operating elements of the proess control system are displayed clearly in the computer animation and controlled with a mouse or keyboard.
Other than fully automatic mode, the control system also offers an option of a manual operating level and semi-auto operating level.This allows the operator to control all drives,switches,doors, and valves separately. The real-time presentation of the mixing process with graphical monitoring of set values and actual values is displayed on the 17” monitor.
All the plant's mixing processes or certain steps or stages could be freely selected,for adjustment or calibration or diagnose,so the scales can be filled and the aggregate, filler, bitumen and RAP material added to the mixer in any order.Function of continuous tare compensation is also integrated, and corrections can be made subsequently on the basis of previous mixtures. The uninterruptible power supply ensures operational safety.
Main control functions of asphalt mixing plant control system
1, Set all kinds of technical formula, keep a variety of recipes, and check the formula data automatically.
2, Control the proportion according to the setting formula.
3, Failure warning and causes showing.
4, Stop batching automatically when aggregate measuring bin overweighing
5, Stop batching automatically and bitumen pump when bitumen measuring bin overweighing
6, Bag filter blowing mechanism automatic control
7, Sequence starting and stopping the equipment
8, When ultra-high temperature of smoke/exhaust gas, automatically open the cool air door
| Model | QLB-Y1000 | QLB-Y1500 | |
| Capacity | 80t/h (standard working condition) | 120t/h (standard working condition) | |
| Mixing tank Capacity | More than 1000kg/batch | More than 1500kg/batch | |
| Drying drum | Φ1540*6800mm | Φ1840*8100mm | |
| Fuel Consumption | Diesel: 5.5-6.5kg/t; | Diesel 5.5-6.5kg/t; | |
| Weighing Presion | Aggregate | ±0.1% | ±0.1% |
| Filler | ±0.16% | ±0.16% | |
| Bitumen | ±0.18% | ±0.18% | |
| Mixed asphalt Temperature | 130℃-165℃ | 130℃-165℃ | |
| Dust Collection method | gravitational dust collector & Second baghouse dust collector | gravitational dust collector & Second baghouse dust collector | |
| Emissions | ≤20mg/Nm³ | ≤20mg/Nm³ | |
| Dark exhaust standard | Ringelmann I | Ringelmann I | |
| Operation room noise | ≤70db(A) | ≤70db(A) | |
| Environment noise | ≤80db(A) | ≤80db(A) | |
| Operation | Full Auto/Manual Operation/semi-auto | Full Auto/Manual Operation/semi-auto | |
| Total Installation Power | ≈200kW | ≈310kW | |
| Voltage | 220V/380V-50Hz/60Hz (adjustable) | 220V/380V-50Hz/60Hz (adjustable) | |
