| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Container |
| Delivery Time: | negotiation /2 month after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 8 set per month |
| Product Name: | Asphalt Mixing Plant | Type: | Stationary |
|---|---|---|---|
| Production: | 160t/h | Moving Type: | Fixed |
| Total Power: | 450 | System Language: | English/Russian |
| Automatic Grade: | Full Auto | Turnkey Solution: | Available |
| High Light: | all mix asphalt plant,bitumen mixing plant |
||

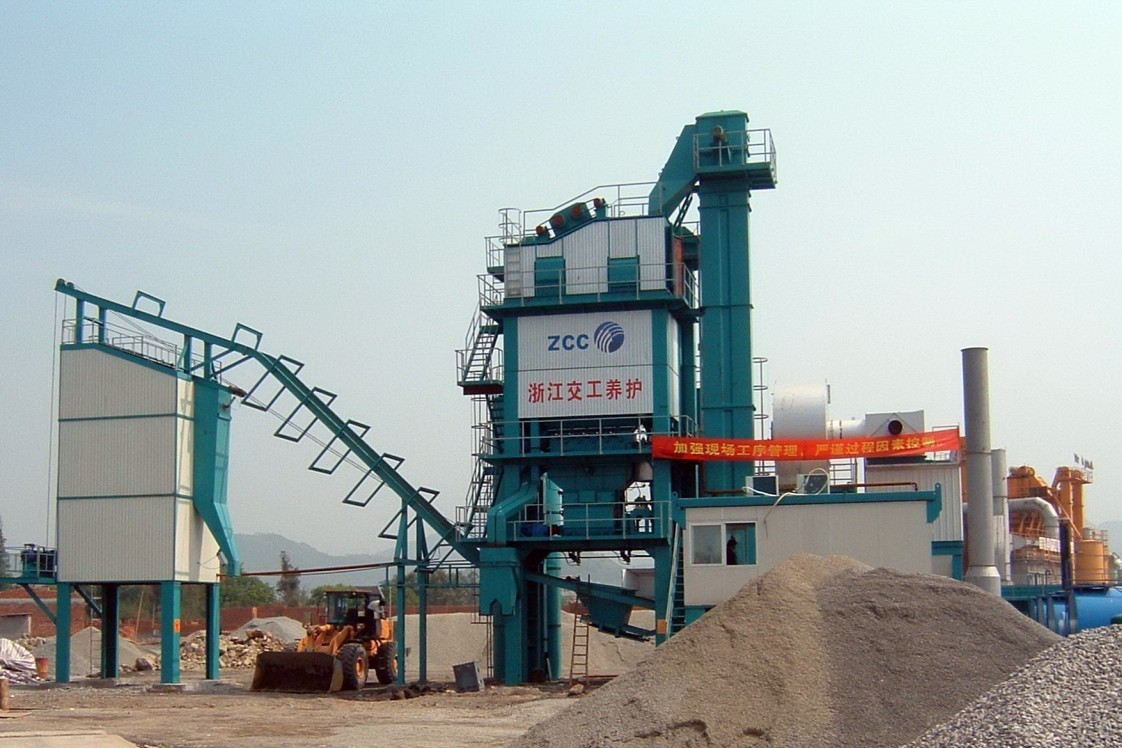

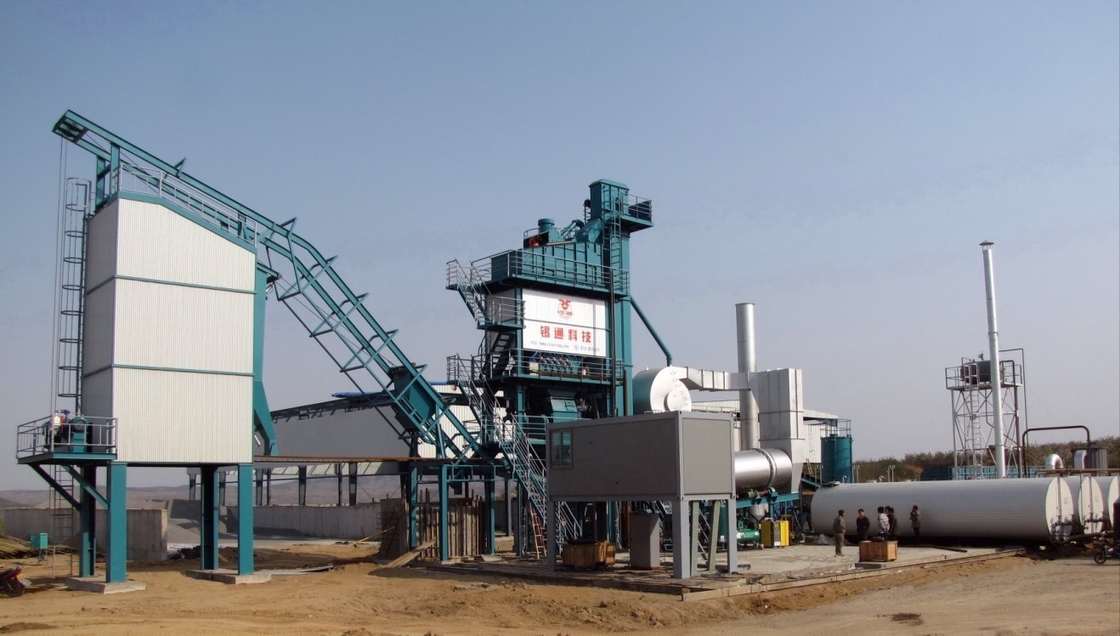

5 cold hoppers 650mm width conveying belt asphalt mixing plant with 30ton diesel tank
QLB-2000 Model Batch Asphalt Plant includes:
1, Supply system of cold aggregate powder
Cold aggregate bin adopts three-hopper-integral type, each bin has inlet separated screen for rough & waste materials, operation platform and material shortage alarm device, with two wall vibrators.
1.1 Material shortage alarm device:
When the conveying volume of cold hopper is lower than limit value or suddenly the signal will be sent to the control room rapidly and appeared on computer interface in order to solve the problem in time.
1.2 Wall vibrator: 2 pcs
When sand material and aggregate can not flow fluently because of damp condition, operator should choose manual vibration type or automatic delayed vibration type.
type: MVE200/3/0.15Kw
1.3 Feeding belt
Feeder uses wearable and long life skirt-hem belt, stepless speed adjusted by frequency converter, during operation, it will feed automatically according to setting scale of cold aggregate proportion; at the same time, feeding volume can be adjusted in one hopper or multi-hoppers synchronously, to ensure the ratio balance of aggregate supplying.
Belt width: 600 mm
Conveying(feeding) capacity； 100t/h
Driving power: 2.2kw
Belt length: 3200mm
1.4 Collective conveyer
Adopt seamless high tenacity rubber belt and antiskid and rubber coating driven roller. Sweepers are mounted on both ends of belt, and lower roller adopts anti seize structure to ensure good working condition.
Belt width: 650 mm
Conveying capacity: 180t/h
Drive: cycloid speed reducer BWD13-17-7.5
Power: 7.5kw
1.5 Feeding belt
Adopt seamless high tenacity rubber belt and antiskid and rubber coating driven roller. Sweepers are mounted on both ends of belt, and lower roller adopts anti seize structure to ensure good working condition.
Belt width: 650 mm
Conveying capacity: 180t/h
Drive: cycloid speed reducer BWD13-17-7.5
Power 5.5kw
Safe guard device are mounted on both sides of belt conveyor to keep safe.
QLB-2000 Model Batch Asphalt Plant includes:
Specification
QLB Series Asphalt hot mix plant specification table
| Name | Specification | ||||||
| Model | 600 | 1000 | 1500 | 2000 | 2500 | 3000 | |
| Capacity of production | 48tph | 80tph | 120tph | 160tph | 200tph | 240tph | |
| Cold bin volume | 8m3 | 9m3 | 10m | 10m3 | 12 m3 | 12m3 | |
| Dust removing type | Gravity drop type and bag filter(air back fluch) | ||||||
| Fuel | Diesel/masut/Natural gas | ||||||
| Volume/number of hot bin | 12t/4 | 32t/4 or 5 | 40t/4 or 5 | 50t/5 | 60t/5 | 80t/5 | |
| Precision of aggregate weighing | Less than ±0.1% | Less than ±0.1% | |||||
| Precision of powder weighing | Less than ±0.16% | Less than ±0.16% | |||||
| Precision of asphalt weighing | Less than ±0.18% | ||||||
| Mixer ability KG/batch | 600 | 1000 | 1500 | 2000 | 2500 | 3000 | |
| Volume/number of asphalt tank | 10m3/2 | 16m3/2 | 30m3/2 | 30 m3/3 | 50 m3/2 | 50 m3/3 | |
| Volume of finished product bin(T) | - | 60 | 100 | 120 | 160 | ||
| Total power(KW) | 185 | 248 | 345 | 470 | 608 | 680 | |
