| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Container |
| Delivery Time: | negotiation /2 month after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 8 set per month |
| Product Model: | QLB-2000 | Mixing Cycle: | 45 Seconds |
|---|---|---|---|
| Production: | 160t/h | Quality Control: | CE Standard |
| Hot Elevator: | Plate Link Chain | Technical Support: | Remote Control |
| Weighing Accuracy: | 0.1% | Heating Method: | Thermal Transmission |
| High Light: | all mix asphalt plant,asphalt mixer plant |
||

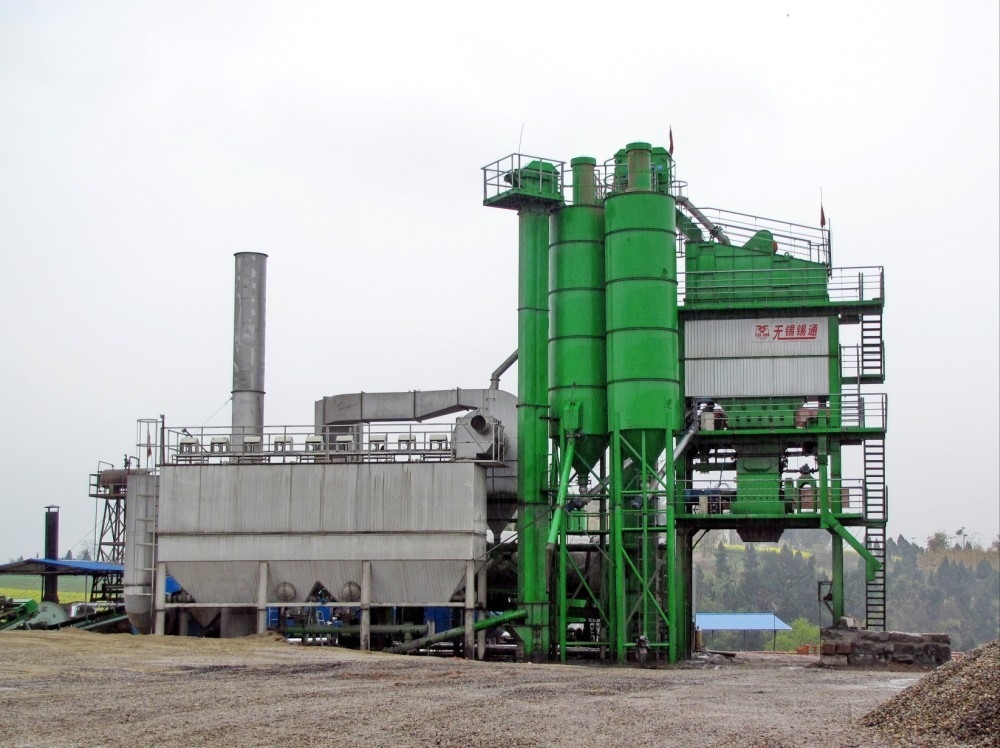

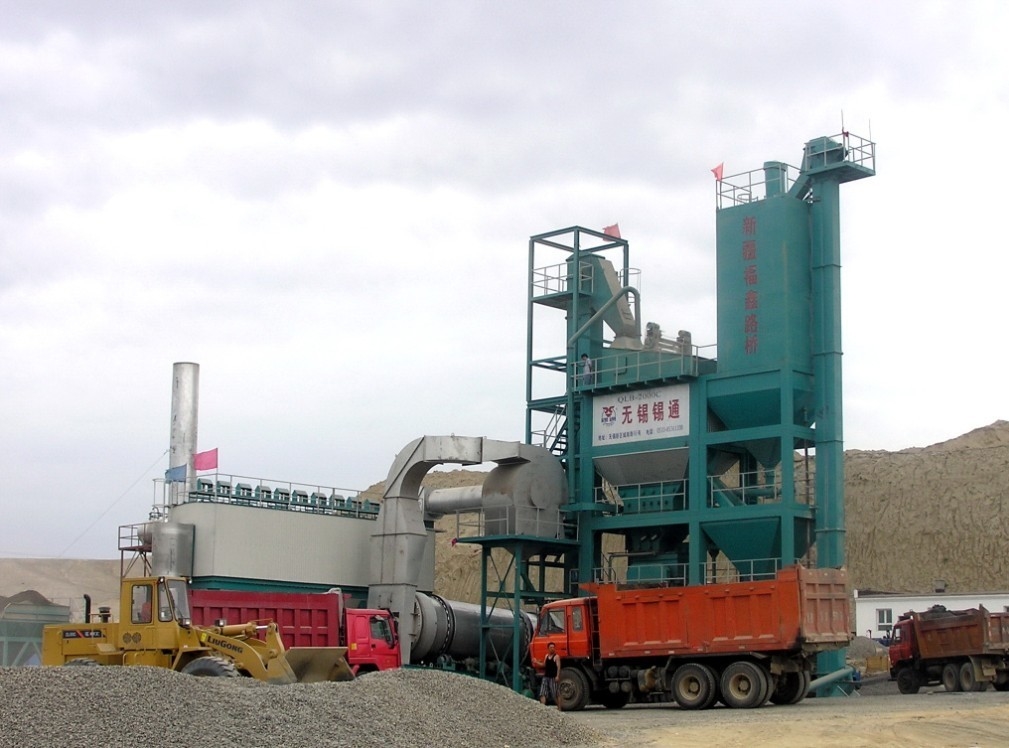

180tph hoisting capacity 5 layer vabration screen asphalt mixing plant with SKF bearing
1.1 Hot material hoister
Hopper type hoister uses double rows of heavy chain to lift and shaft mounted reducer to drive. The reducer is equipped with brake motor to prevent hoister from rotating reversely, solving the problem of jam from sudden power off or other causes. Chain spring tensioning devices are installed at both sides of hoister bottom; edge of elevating hopper adopts wear
resisting design, wearable liners are fixed in both feeding & discharging channel; working platform is installed on top of hoister for maintenance.
* Type: Gravity discharging
* Lifting capacity: 180 t/h
* Power: 15kw
* Drive: Shaft-mounted reducer
1.2 Vibration screen
Vibration screen is self-synchronous linear type and driven by two vibration motors, the body of which adopts international advanced cold riveting technology without crack and deformation. Beam is made by using professional mold to ensure the geometric accuracy of screen core; unique inclined spring effectively reduces the vibration to make a smooth running for screen and bring a excellent vibration isolation effect.
Container type wide inspection door is equipped at both sides of the vibration screen, which is easy for maintenance and changing screen meshwork, exhaust pipeline is installed at the top of vibration screen to send the produced dust to the dust collector.
* Sieving capacity: 180t/h( 0-3mm≤35%)
* Drive power: 4.5kw×2
* Screen layer: 5 layers
* Screening area: 23m2
* Hole dia. of screen: 3×3,6×6,11×11,19×19,30×30
Please note in the order if special requirement is needed.
Specification
QLB Series Asphalt hot mix plant specification table
| Name | Specification | ||||||
| Model | 600 | 1200 | 1500 | 2000 | 2500 | 3000 | |
| Capacity of production | 48tph | 96tph | 120tph | 160tph | 200tph | 240tph | |
| Cold bin volume | 8m3 | 9m3 | 10m | 10m3 | 12 m3 | 12m3 | |
| Dust removing type | Gravity drop type and bag filter(air back fluch) | ||||||
| Fuel | Diesel/masut/Natural gas | ||||||
| Volume/number of hot bin | 12t/4 | 32t/4 or 5 | 40t/4 or 5 | 50t/5 | 60t/5 | 80t/5 | |
| Precision of aggregate weighing | Less than ±0.1% | Less than ±0.1% | |||||
| Precision of powder weighing | Less than ±0.16% | Less than ±0.16% | |||||
| Precision of asphalt weighing | Less than ±0.18% | ||||||
| Mixer ability KG/batch | 600 | 1200 | 1500 | 2000 | 2500 | 3000 | |
| Volume/number of asphalt tank | 10m3/2 | 16m3/2 | 30m3/2 | 30 m3/3 | 50 m3/2 | 50 m3/3 | |
| Volume of finished product bin(T) | - | 60 | 100 | 120 | 160 | ||
| Total power(KW) | 185 | 280 | 345 | 470 | 608 | 680 | |
