| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB-Y |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Nude Packing |
| Delivery Time: | negotiation /3 month after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Erection Time: | 7 Days | Transfering Time: | 2-3 Days |
|---|---|---|---|
| Rated Production: | 160t/h | Driven: | Towing Truck Semi-trailer Tractor |
| Max Aggregate Dia.: | 40mm | Metering Accuracy: | 0.1% |
| Heating Method: | Heat Conduction Oil | Electrical Parts: | Schneider Or Siemens |

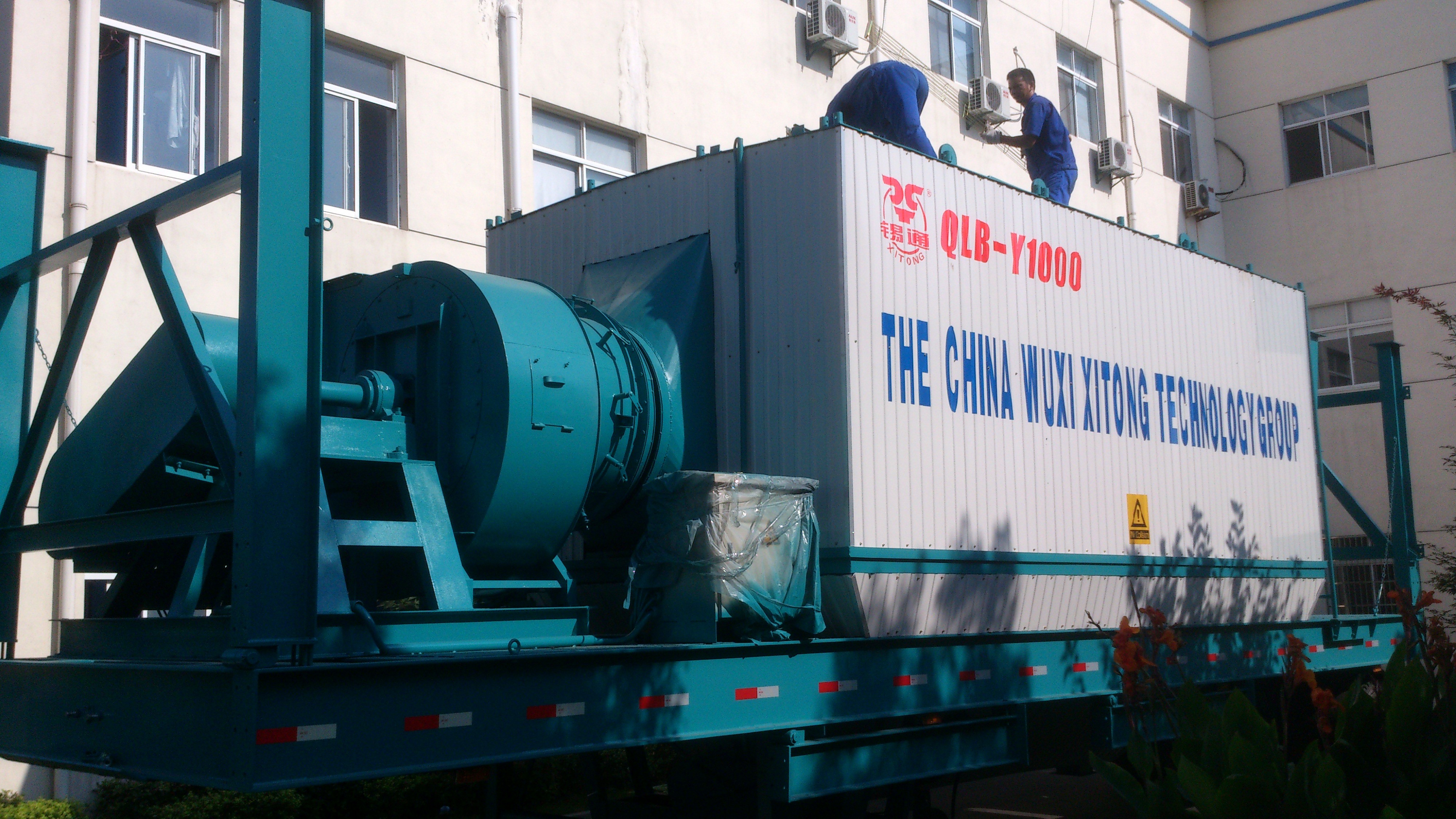

1000C type Freda burner mobile asphalt plant 90kw induced draft fan 50mm mineral wool

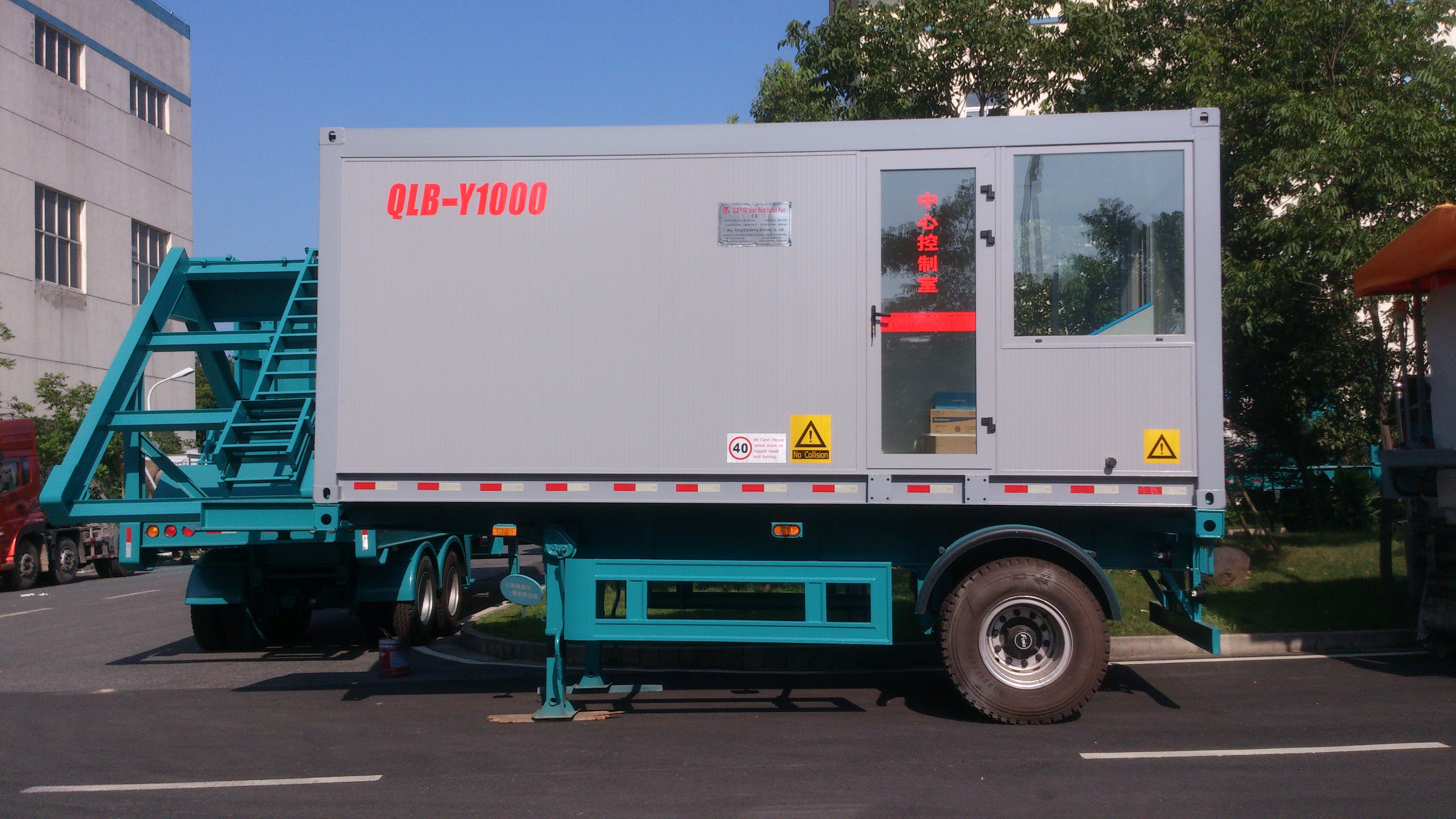

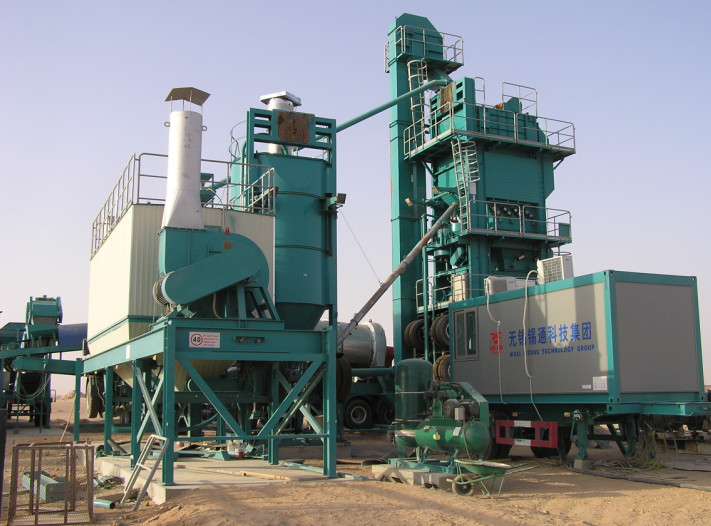

QLB-Y2000 Model forced intermittent Batch type Mobile Asphalt mixing Plant
The Cold Feed Unit is designed for loader type feeding and consists of Individual sand and stone hoppers each complete with its supporting structure and feeder bolted together to form one unit.Sand hoppers are fitted with belt feeders and the stone hoppers can be fitted with either belt feeders or vibrating tray feeders. The belt feeders can also incorporate variable speed drives. These units deliver material onto a horizontal trough collecting conveyor transporting material to a link conveyor which jofns the cold feed unit to the
dryer. Drive to the belt feeder and conveyor Is through shaft mounted gear units, W8dgebetts and pulleys. The conveyor belts are heavy duty type with adjustment by tension screws acting through the tail drums. Wing plates are fitted over the full length of the belt
feeders and the conveyor at all feed points. Adjustabfe doors are fitted to the outlet of each hopper to regulate the feed rate and to facilitate the removal of any. obstruction.Feeders and conveyors are each fitted with Individual electric motors, the total feed unit is pre-wired to one contactor/connectlon box to receive the plant mains
and control cable. Bin extension and division plates are fitted as standard to prevent intermixing of materials. Two optional sizes of extension plates are available to give additional bin capacity.
Each unit incorporates adjustable swing down trailer landing legs and towing of the unit is through #50(or #90) wheel kingpin with 3 line air/brake system and the
axle incorporates leaf spring compensation.Up to 4 bin units can be incorporated in mobile form.
| Model | Full mobile QLB-1000 | Full mobile QLB-1500 | Full mobile QLB-2000 |
| Batch capacity | 1000KG | 1500KG | 2000KG |
| Cold bin for feeding Volume/No. | 8M3/4 | 10M3/4 | 10M3/4 |
| Mixing bowl | 1000kg/batch 45 seconds | 1500kg/batch 45 seconds | 2000kg/batch 45 seconds |
| Drum Dim. | Φ1540*6800mm | Φ1840*8100mm | Φ2000*8860mm |
| Fuel type | Diesel/masut/LPG/Coal powder | Diesel/masut/LPG/Coal powder | Diesel/masut/LPG/Coal powder |
| Hot aggregate storage compartment | 20CBM/4 unites | 25CBM/4 unites | 25CBM/4 unites |
| Ready product Temperature | 150℃-165℃ | 150℃-165℃ | 150℃-165℃ |
| Dust extraction solution | Gravity type and air backblow for bag filtering | Gravity type and air backblow for bag filtering | Gravity type and air backblow for bag filtering |
| Bitumen tank Volume | 20M3 | 30M3 | 30M3 |
| Blackness of discharged gas | Ringelmann I | Ringelmann I | Ringelmann I |
| Cabin noise | ≤70db(A) | ≤70db(A) | ≤70db(A) |
| Ambient noise | ≤80db(A) | ≤80db(A) | ≤80db(A) |
| Heat transfer oil boiler | 300,000kcal/h | 300,000kcal/h | 500,000kcal/h |
| Total installating power | ≈210kW | ≈315kW | 350KW |
