| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | NAS/SGS/ISO/CE |
| Model Number: | QLB-Y |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Nude Packing |
| Delivery Time: | 10 sets per month |
| Product Name: | Full Mobile Type Bitumen Mixing Equipment | Type: | Forced Intermittent Batching Type |
|---|---|---|---|
| Mixer Capacity: | 1500KG | Finished Product: | 60T |
| Install Duration: | 3-5 Days | Equipment Color: | Light Sky Blue |
| Burner: | Ebico/Weishuapt | Fuel: | Multi-fuel, Trifuel |

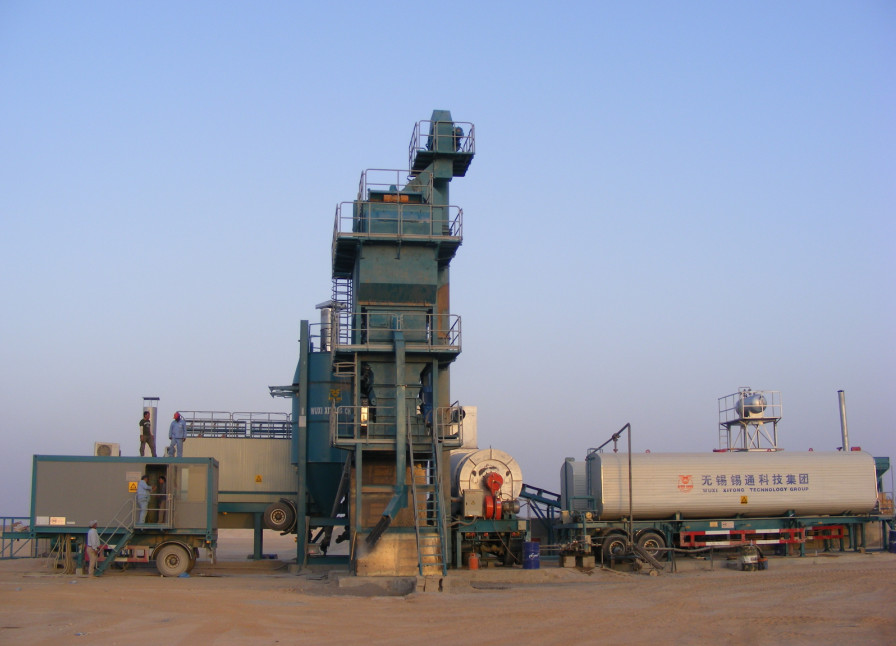

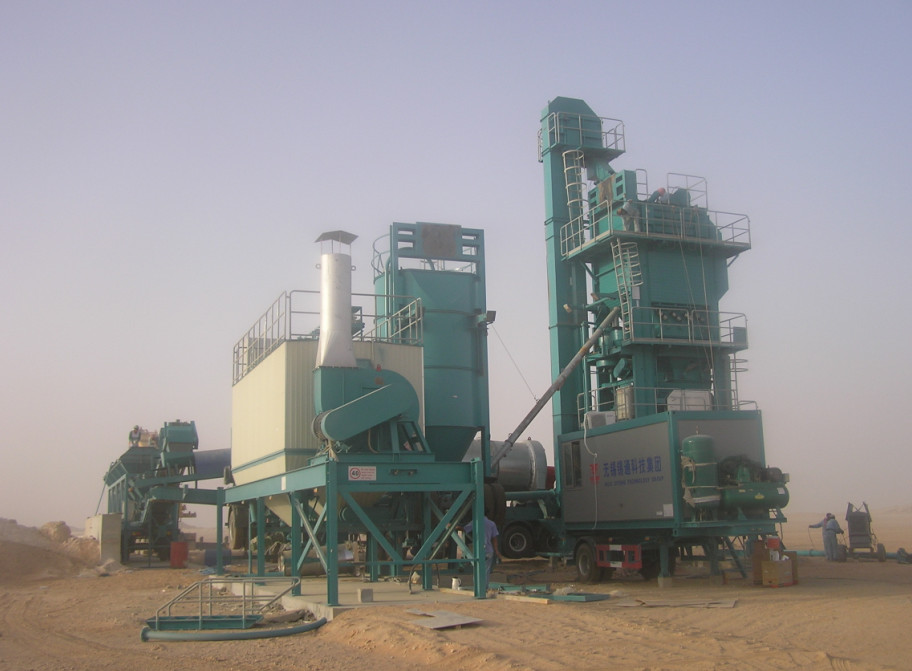

4 hot stone compartment Mobile Asphalt Plant 0.15KW wall vibrator Festo cylinder
Description of drying drum mobile unit on full mobile asphalt plant:
The drying drum mobile unit incorporates an inclined link conveyor for delivering material from the Cold Feed Unit to the Dryer Drum by means of a wide trough belt. For travelling purposes the link conveyor is designed to fold away within the configuration of the chassis.
The Dust Plant incorporates a double stage dust plant(1st gravity type and 2nd bag filtering type dedusting ) and utilises a paddle blade type fan driven by an electric
motor. The collected dust is delivered to adischarge chute by means of two screw c0nveyors
built into the unit or alternatively it can be blown to a silo for a controlled addition to the
Mixer. A damper and exhausting chimney are incorporated on dust plant, damper could be remotely controlled from the cabin,
The Dryer cytinder is constructed of heavy rolled steel plate and fitted with flights of lifters staggered along the length of the cytinder. The cylinder is fitted with two machined steel support bands mounted on brackets, with a preset allowance for expansion. A feed drum receives the cotd aggregate from the link conveyor and elevates it into the cylinder into a
series of lifters, which cascade the material through the hot air produced by the 0il burner.
As the material reaches the end of the cylinder, pusher plates allow side discharge of material into a discharge boot which feeds into the boot of a hot stone elevator.
The Drum is supported on 4 heavy duty type support rollers.Incorporating roller bearings located In heavy duty housings. Two adjustable thrust rollers are fittedto prevent longitudinal movement of the cyiinder.
| No. | Name | Quantity | Remark |
| A | Supply System Of Cold Aggregate Powder | ||
| 1 | Cold stone feeder (two with wall vibrator) | 4pcs | Combined together, with empty hopper alarm device |
| 2 | Belt Feeder | 4 sets | frequency converter |
| 3 | Collecting Belt Conveyer | 1 set | |
| 4 | Single bridge chassis | 1set | |
| B | Dryer and burner | ||
| 1 | Dryer | 1set | heat-proof layer outside with stainless steel plate |
| 2 | Burner(oil and gas fuel and mazut) | 1 set | |
| 3 | Transition conveyor | 1set | |
| 4 | Hot aggregate hoistor | 1set | |
| 5 | Double Bridge chassis | 1set | |
| C | Dust collector | ||
| 1 | Primary Gravity Dust Collector | 1set | |
| 2 | Fine powder conveyor | 2sets | Convey to stone material hoister |
| 3 | Secondary Bag Collector | 1set | Dupont bag(Nomex) |
| 4 | Draught Fan, Smoke Path and Chimney | 1set | Motorized operated damper |
| 5 | Fine powder conveyor | 1set | Waste powder exhaust |
| 6 | Single bridge chassis | 1set | |
| D | Main Frame Part System | ||
| 1 | Vibration screen | 1pce | |
| 2 | Hot aggregate bin | 1 set | Level indicator |
| 3 | Hot aggregate weighing | 1 set | American sensor, Japanese metering machine |
| 4 | Fine powder weighing | 1 set | |
| 5 | Asphalt weighing | 1 set | |
| 6 | Fine material conveyor | 1set | |
| 7 | Butterfly pneumatic valve | 1 set | |
| 8 | Asphalt spraying pump | 1set | |
| 9 | Mixing tank | 1set | |
| 10 | Main Frame Equipped With Platform, Handrail And Guard Railing | 1set | |
| 11 | Double-bridge chassis | 1set | |
| E | Fine material storage supply | ||
| 1 | Mineral powder storage (30m3) | 1set | With bursting device |
| 2 | Screw conveyor | 1 set | Italia WAM |
| 3 | Single –bridge chassis | 1set | |
| F | Asphalt heating | ||
| 1 | 30m3 Asphalt tank | 1pce | |
| 2 | YYW-350Y thermal oil furnace | 1pce | |
| 3 | 2T bitumen dump tank | 1pcs | |
| 4 | Bitumen feeding pump | 1pce | |
| 5 | Bitumen dump pump | 1pce | |
| 6 | Pipes ,valves and pumps for plant | 1set | |
| 7 | Double-bridge chassis | 1set | |
| G | Pneumatic control system | ||
| 1 | Pneumatic part | 1 set | |
| 2 | Compressor | 1 set | |
| 3 | 0.6 m3 air accumulator | 1set | |
| H | Electric control system | ||
| 1 | Operation room | 1set | |
| 2 | Computer control system | 1set | |
| 3 | Single-bridge chassis | 1set | |
