| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB-Y |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Nude Packing |
| Delivery Time: | negotiation /3 month after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Moving Type: | Chassis On Wheel | Tech. Service: | Internet Of Things |
|---|---|---|---|
| Auto Class: | Full Auto, Semi-auto, Manual | Language: | English, Chinese, Russian |
| Material Weighing: | Secondary Weighing, Auto Compensation | Mineral Wool: | 50mm |
| Heating Bitumen: | Heat Exchange By Conduction Oil |

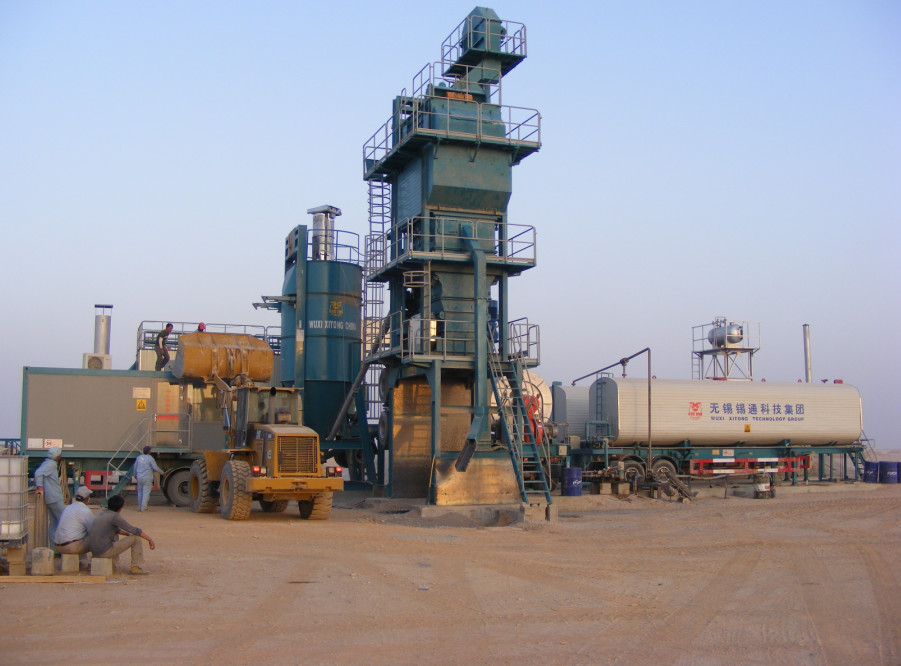

Siemens PLC 310KW power QLB-Y1500 Mobile Asphalt Plant with RS232 serial port 40kw hot oil pump
Durner system on dryer mobile sytem
Heat is generated by a self-proportioning oil burner, situated at the delivery end of the cytlnder. The burner is a setf-proportioning air/oil ratio and is completely with combustion
chamber, blowing fan, 0i1 pump, piping, filters. valves and gauges in a package unit designed to the very latest specification and Incorporating a retractable carriage to enable the whole unit to be withdrawn from the drum for ease of maintenanoe. Remote automatic ignition and manual flame modulation with temperature indication, together with fan and flame failure indicators are supplied as standard equipment. The Dryer discharge chute incorporates an
infra-red type pyrometer with remote temperature indication mounted in the control cabin.
The Dryer/Dust plant unit incorporates a double axle with leaf springs and twin wheels with 3-line braking system and towing is through a 50(90) wheel kingpin arrangement.
The unit is supported on adjustable fold down type trailer landing legs.
Alternative Burners are available and can be fitted to suit all customers requirements.
Automatic damper controt is also a feature that can be offered.
Hot elevator on dryer mobile sytem
The Drying drum mobile unit also incorporates a hot stone elevator which receives material from the dryer through the Dryer discharge chute into the elevator feed boot. Buckets collect the material at the feed boot and elevate it to the top of the screening and mixing unit,
where the material is delivered from the elevator through a discharge chute feeding onto a the screen.
The elevator casing is constructed from heavy steel plate and is fitted with reinforced steel buckets on steel bushed chain with a spring loaded take-up mechanism at the tall shaft. Drive is at the head shaft by electric motor and shaft mounted gear unit incorporating a hold back device.
A number of large quick release doors are included in the casing design for maintenance purposes.
| Model | QLB-Y1000 | QLB-Y1500 | |
| Asphalt mixiture product | 80t/h (normal rating) | 120t/h (normal rating) | |
| Mixer Capacity | More than 1000kg/batch | More than 1500kg/batch | |
| Drying cylinder | Φ1540*6800mm | Φ1840*8100mm | |
| Fuel Consumption | Diesel: 5.5-6.5kg/t; | Diesel 5.5-6.5kg/t; | |
| Metering Accuracy | Aggregate | ±0.1% | ±0.1% |
| Filler | ±0.16% | ±0.16% | |
| Bitumen | ±0.18% | ±0.18% | |
| Ready product Temperature | 130℃-165℃ | 130℃-165℃ | |
| Dedusting solution | gravity time& air back blow bag filtering | gravity time& air back blow bag filtering | |
| Emissions | ≤20mg/Nm³ | ≤20mg/Nm³ | |
| Dark exhaust standard | Ringelmann I | Ringelmann I | |
| Operation cabin noise | ≤70db(A) | ≤70db(A) | |
| Environment noise | ≤80db(A) | ≤80db(A) | |
| Auto mode | Full Auto/Manual Operation/semi-auto | Full Auto/Manual Operation/semi-auto | |
| Total Installation Power | ≈200kW | ≈310kW | |
| Voltage | 220V/380V-50Hz/60Hz (adjustable) | 220V/380V-50Hz/60Hz (adjustable) | |
