| Place of Origin: | Wuxi, China |
|---|---|
| Brand Name: | Xitong |
| Certification: | ISO/TUV/SGS/CE |
| Model Number: | QLB-3000 |
| Minimum Order Quantity: | 1 set |
| Price: | USD+negotiation+Set |
| Packaging Details: | Nude packing |
| Delivery Time: | 30~60 days |
| Supply Ability: | 10 set per month |
| Heating Type: | Thermol Oil | Bitumen Tank: | 50CBM*3 |
|---|---|---|---|
| Fuel: | Diesel/mazut/LPG | Automation: | Full Auto/half Auto/manual |
| Capacity: | 240 Ton Per Hour | Recycled Filler Hoist: | 30t/h |
| Mixng Tank: | 3000KG |

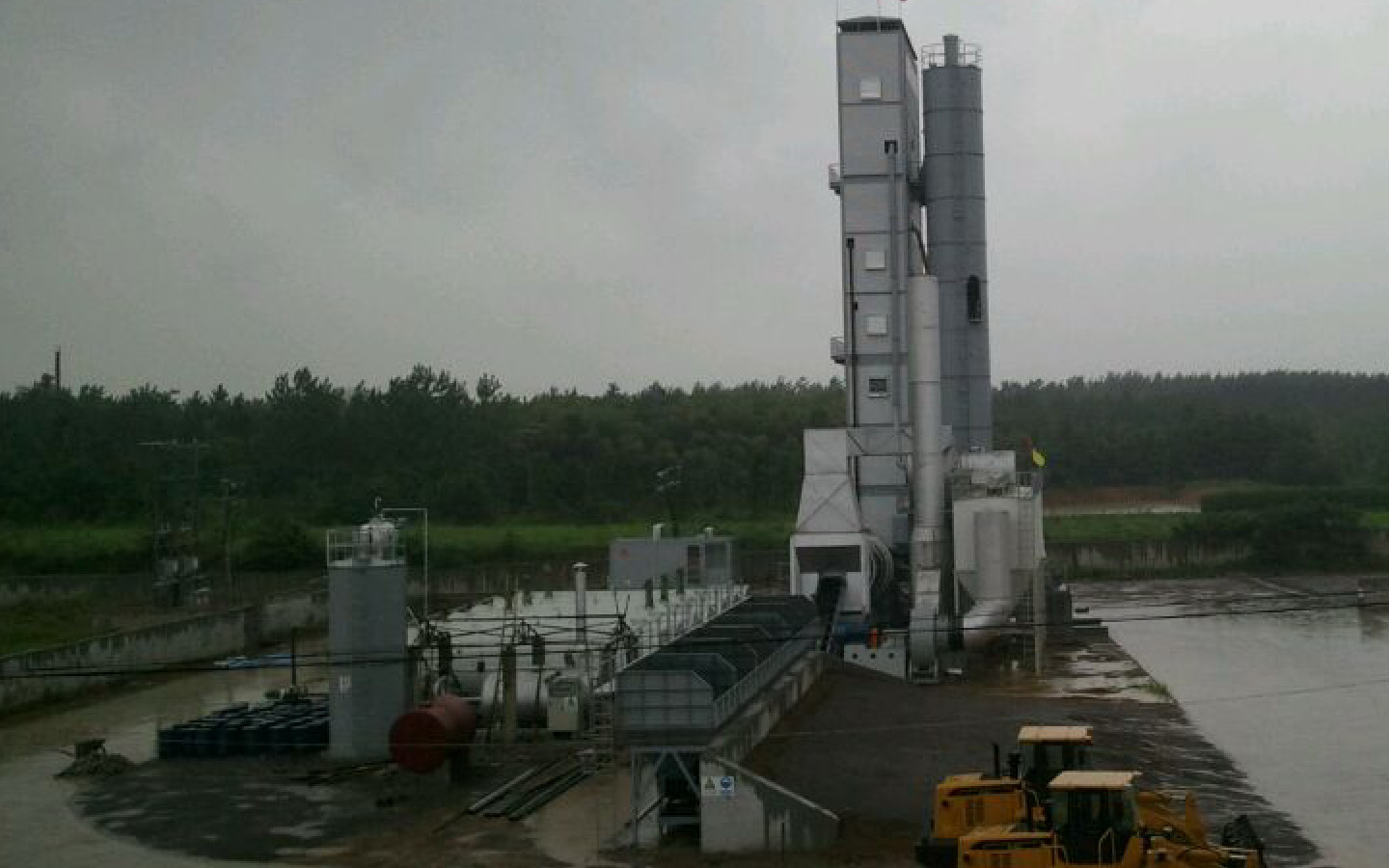

Advantages for Xitong batching type asphalt hot mix plant
1,Raw Aggregate Feeding hopper
- to make feeding stable,smooth and continuous, feeding process is controlled by frequency converter, under automatic control mode,to realize stepless speed change.
- fixed with warning device device against material empty
- Belt material adopts high wear resistance seamless belt, which has longer service life
2, Dryer & Burning System
- Butterfly shaped elastic connection plate avoids elastic cracking.
- optimized&exclusive design of material blade inside drum body could improve heating efficiency by 30% or more, comparing to conventional design,
- Italy EBICO oil/gas/coal powder burner has high combustion efficiency, which is saving
energy and with low emission.
- Body and blade material adopt 20G type boiler steel for longer service life.
- 50mm thickness heat preservation rockwool brings excellent heat insulation effect

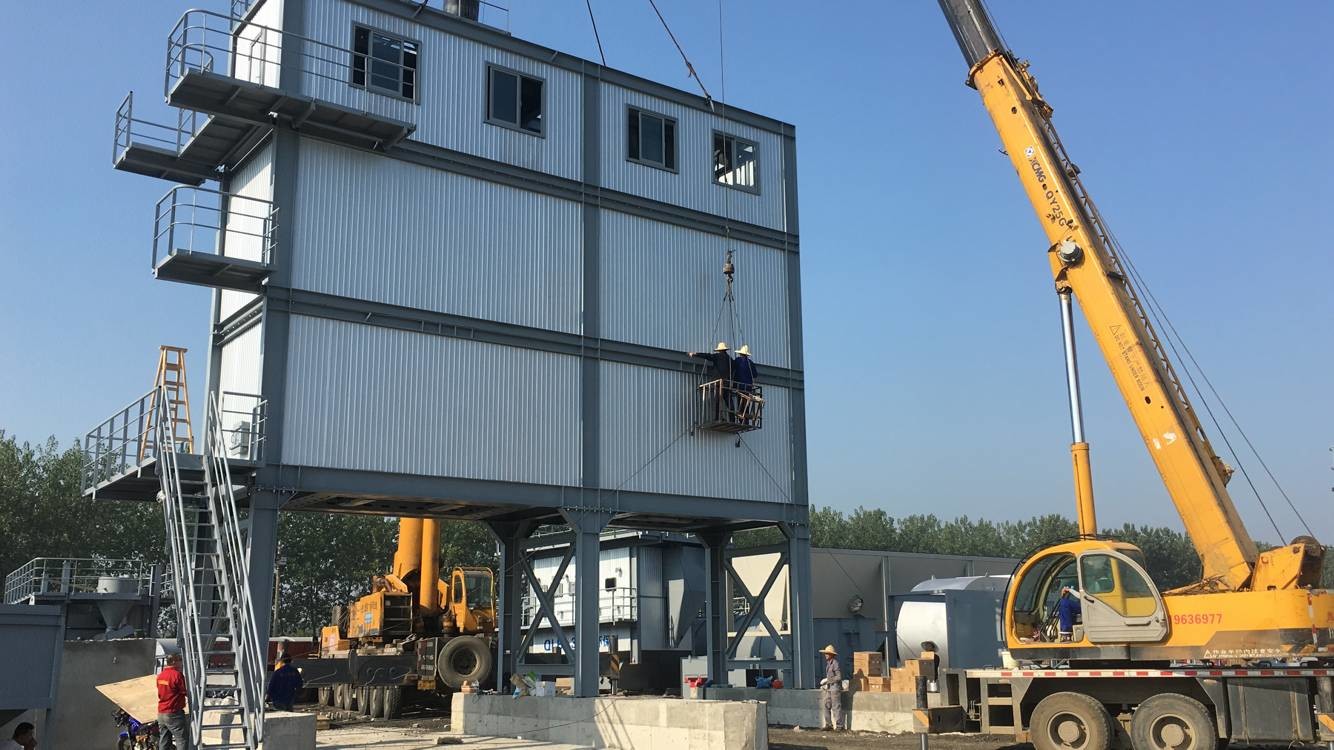

3, Main Mixing Building
- 36 square meter screening area takes the lead in this class
- Mixing blade and scale board adopt wear-resistant alloy iron, long service life
- Adopt long arms and short shaft, its superficial structure, more compact
- Improved vibration and optimized amplitude largely reduce the impact on the screen and plugging rate
- Large sliding gate structure, discharge asphalt mixture speedy
- Bidirectional mixing blades, mix in 3D spaces, high mixing efficiency
4, Dust Removing System
- USA Dopont NOMEX material filter bags, high temperature resistance and long service life
- Smart control of pulse dust removal system, removing dust clearly
- Dust humidification mixing machine to avoid dust flying
- Bag house secondary dust collector control emission be lower than 20mg/Nm3, eco-friendly
- High temperature alarming and automatic cold air value unit, ensure safety of bags
- Adopt Usa METTLER TELEDO weighing modular accurate weighing
- Adopt Germany FESTO cylinder & magnetic valve, long service life and low failure rate
- Germany Schneider electrical element, working stably
- Japan Mitsubishi PLC and touch screen, with multi-language display and intelligent human-computer interaction interface, easy operation and control
5, Asphalt Storage & Heating System
- Electric/diesel/gas/coal powered heating type as optional for convenience of users
- QINGTIAN bitumen gear pump, long service life and low failure rate
- Integrated modular design, easy to transport
Maintenance of lubrication for asphalt batching mixing plant
Lubrication list for parts
| Item | Position | Cycle | Type | Remark | ||
| 1 | Vibrating screen | Principal axis bearings | Everyday | 1# lithium grease | 2～3- shot | |
| 2 | Hot stone silo | Gate shaft bearings | Every month | 2# calcium base grease | 1- shot | |
| 3 | Mixing tank | Principal axis bearings | 3 days | 1# lithium grease | 2～3- shot | |
| Gate shaft bearings | Every month | 2# calcium base grease | 1- shot | |||
| Large gear | Every month | 2# calcium base grease | ||||
| 4 | Induced draft fan | Principal axis bearings | 3 days | 1# lithium grease | 2～3- shot | |
| 5 | Screw conveyor | End bearings | 3 days | 2# calcium base grease | 1- shot | |
| 6 | Asteroids feeder | End bearings | 3 days | 2# calcium base grease | 1- shot | |
| 7 | Meterign hopper | Gate shaft bearings | Every month | 2# calcium base grease | 1- shot | |
| 8 |
Ready-d product Silos |
Trolley | Trolley surfaces | 7 days | 2# calcium base grease | Protecting inunctions |
| Bearing | 3 days | 2# calcium base grease | 1-shot | |||
| Door roller | 7 days | 2# calcium base grease | 1-shot | |||
| 9 |
Wind lass |
Reel bearing | 3 days | 2# calcium base grease | 1～2- shot | |
| Wire rope | 7 days | 2# calcium base grease | Protecting inunctions | |||
| 10 | Other | Gate shaft | 7 days | 2# calcium base grease | 1-shot | |
| Rope wheel | 7 days | 2# calcium base grease | 1～2- shot | |||
| 11 | All adjusting screw | Every month | 2# calcium base grease | Protecting inunctions |
||
