| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Container |
| Delivery Time: | negotiation /2 month after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 8 set per month |
| Product Name: | Asphalt Mixing Plant | FInished Silo Type: | Side Type |
|---|---|---|---|
| Production: | 80t/h | Quality Control: | CE Standard |
| Total Power: | 260KW | System Language: | English/Russian |
| Emission Control: | Bag Filter House | Total Weight: | 150T |
| High Light: | asphalt mixer plant,bitumen mixing plant |
||

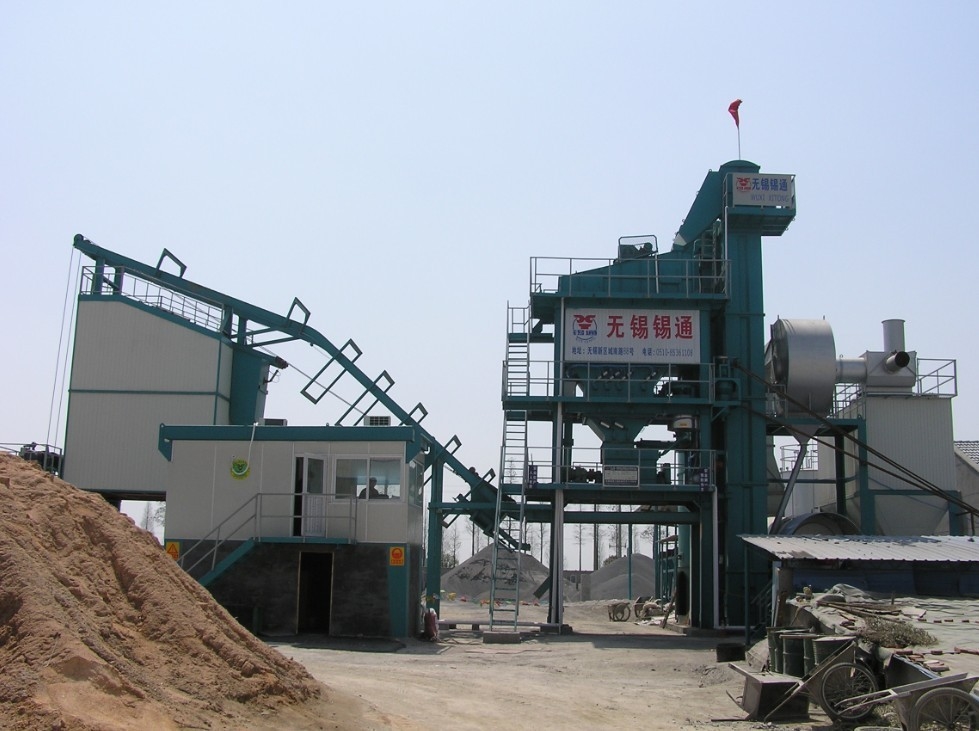

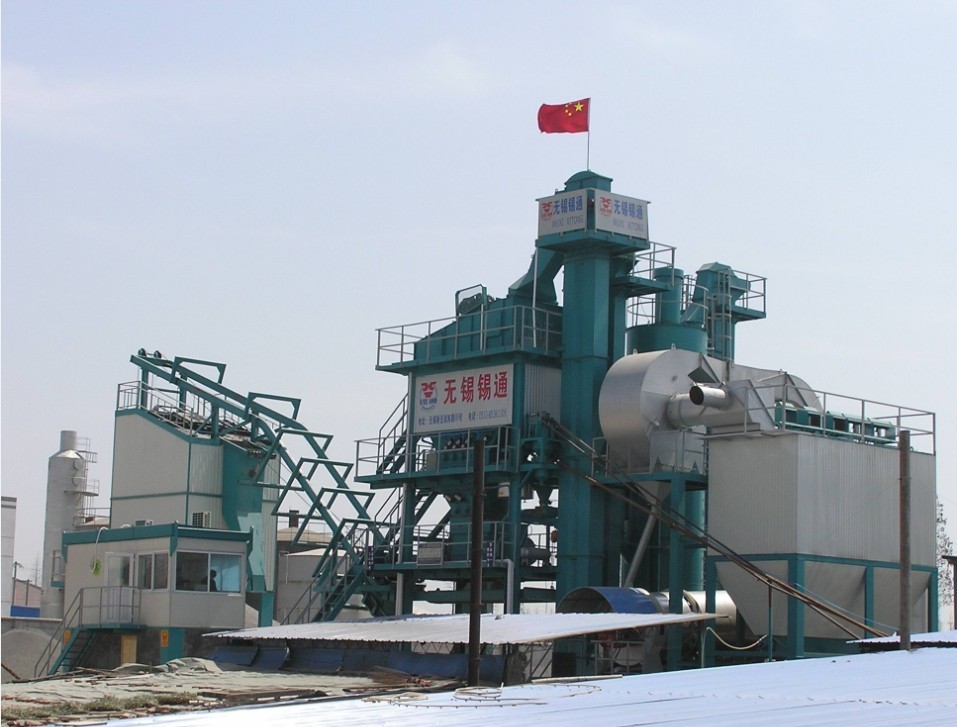

side type 60T finished product bin asphalt mixing plant with 30ton asphalt storage tank
Description for aspahlt heating system and storage system
1.0 Asphalt heating and storage system
It is for storage and heating asphalt. Equipped with heat transfer oil furnace, asphalt high temperature tank, dump tank, asphalt pump and pipeline, valve, flange, metallic gasket and so on.
1.1 Heat transfer oil furnace
Heat transfer oil furnace adopts integrated type, furnace body, burner, hot oil pump, high level expansion tank, low level oil storage tank and operation cabinet are all installed on one steel frame chassis for convenient installation and transportation. Use imported fully auto burner to heat. Control system of boiler adopts auto control which can realize fully auto monitoring and operation for temperature, hot oil circulation, oil level, oil pressure; the burner will stop when alarm is given.
Type of heat transfer oil furnace: YYW-350Y
Heat supply capacity: 300,000k/h
Max working temperature: 280℃
Power of hot oil pump: 11kw×2sets
Conveying capacity of hot oil pump:: 40m3/ h
1.2 Horizontal asphalt high temperature tank
High temperature storage tank is horizontal cylinder type, pipe coil is installed inside it, heated by thermo oil, equipped with ladder, exhaust pipe, man-hole, floating level meter and bimetal thermometer. Covered with colored steel plate, storage tank adopts rock-wool to keep temperature. Asphalt pipeline has control valve.
Storage tank capacity: 16m3×2pcs
1.3 Asphalt reception tank
For asphalt reception from dump trucks, there is pipe coil installing inside it, heated by heat transfer oil.
Capacity: 2 m3
1.4 Asphalt pump
1 asphalt pumps are used on dump tank, sending asphalt to relative storage tank; another conveys the asphalt from storage tank to asphalt weighing tank through pneumatic heat preservation three-way valve.
Asphalt oil dump pump: type3QGB80×2-36 /power7.5 kw /flow rate25m3/h
Asphalt oil feeding: type 3QGB60×2-46 / power 5.5 kw / flow rate 15m3/h
2.0 Finished product storage bin
System includes: conveying trolley, guide rail, heat preservation mixture bin with level indicator, sliding type top cover, electric air cylinder discharging door, electric heating and heat preservation discharging door and winch with brake. Rock-wool heat preservation layer is fixed on outside wall of storage bin, which is covered with strip type color plate. Waste bin is also equipped.
2.1 Heat preservation finished product bin
Type: Single bin type
Total capacity of bin : 60t
Discharging height: 3.5m
Heat preservation type: heat preserved by rock-wool for upper part,heat preserved by heat transfer oil for lower part,discharging door is heated by electricity.
Conveying trolley capacity: 1000kg
Drive power for winch: 22kw
Winch control: Frequency conversion and speed regulation pulling,
proximity switch positioning control
Brake type: Electric and hydraulic block type brake
2.2 Waste bin
Capacity: 4t
Finished product bin is not suitable for storing asphalt mixture for long time, but only for buffering, temperature drops≤5℃ in 12 hours , do not store over 24 hours.
Specification
QLB Series Asphalt hot mix plant specification table
| Name | Specification | ||||||
| Model | 600 | 1000 | 1500 | 2000 | 2500 | 3000 | |
| Capacity of production | 48tph | 80tph | 120tph | 160tph | 200tph | 240tph | |
| Cold bin volume | 8m3 | 9m3 | 10m | 10m3 | 12 m3 | 12m3 | |
| Dust removing type | Gravity drop type and bag filter(air back fluch) | ||||||
| Fuel | Diesel/masut/Natural gas | ||||||
| Volume/number of hot bin | 12t/4 | 32t/4 or 5 | 40t/4 or 5 | 50t/5 | 60t/5 | 80t/5 | |
| Precision of aggregate weighing | Less than ±0.1% | Less than ±0.1% | |||||
| Precision of powder weighing | Less than ±0.16% | Less than ±0.16% | |||||
| Precision of asphalt weighing | Less than ±0.18% | ||||||
| Mixer ability KG/batch | 600 | 1000 | 1500 | 2000 | 2500 | 3000 | |
| Volume/number of asphalt tank | 10m3/2 | 16m3/2 | 30m3/2 | 30 m3/3 | 50 m3/2 | 50 m3/3 | |
| Volume of finished product bin(T) | - | 60 | 100 | 120 | 160 | ||
| Total power(KW) | 185 | 248 | 345 | 470 | 608 | 680 | |
