| Place of Origin: | China |
|---|---|
| Brand Name: | Xitong |
| Certification: | CE/CNAS/SGS/ISO |
| Model Number: | QLB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Container |
| Delivery Time: | negotiation /2 month after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 8 set per month |
| Product Model: | QLB-1000 | Object: | Asphalt Concrete Pavement |
|---|---|---|---|
| Production: | 80t/h | Weighing Tolerance: | 0.1% |
| Total Power: | 260KW | System Language: | English/Russian |
| Emission Control: | Bag Filter House | Total Weight: | 150T |
| High Light: | all mix asphalt plant,bitumen mixing plant |
||

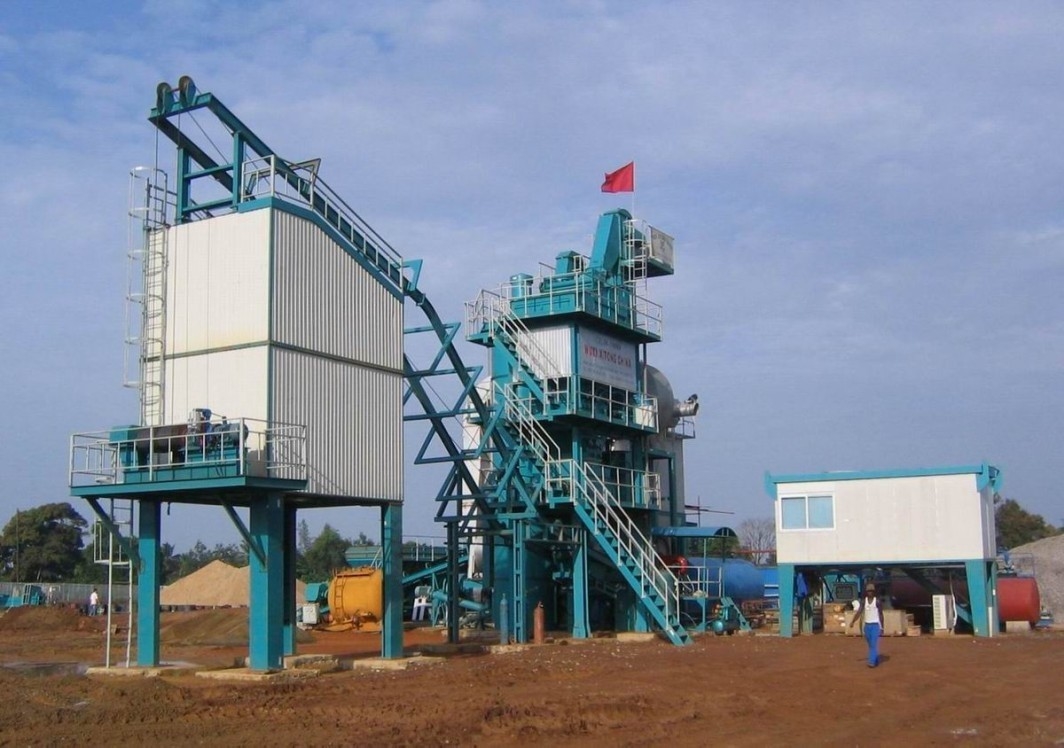

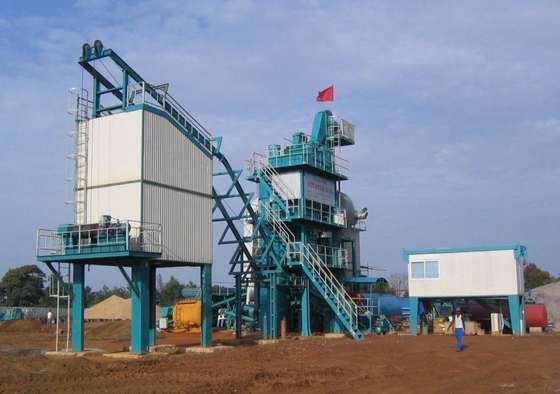

Container type 80T output asphalt mixing plant with 6800mm length drying drum and Itlia Burner
Descprption for drying drum and burner on asphalt mixing plant
1.0 Dryer and burner
1.1 Dryer
The dryer is made of heat-resisting and high-abrasive steel plates. All sorts of lifting plates (raising material boards) in it are suitable for the transportation of different aggregate powder. Good heat exchanging burner flame area & discharging (blanking) area have lifting guidance plate. Dryer body is covered with heat-proof layer outside with stainless steel plate; the foundation is made of heavy steel. Dryer body is driven by 4 groups of separate friction wheels and each group is equipped with separate speed reducer and motor.
Dryer length: 6800mm
Diameter: 1540 mm
Drive: Cycloidal pin gear speed reducer
Power: 4×5.5kw
| Discharging temperature | 180℃ | ||
| Water content of cold sand agrgregate | ≤3% | ≤5% | ≤7% |
| Production capacity (t/h) | 100 | 80 | 60 |
1.2 Burner
Type: Italy ENERGY EB5 (diesel oil)
Structure: Nozzle, Scale of blow & oil adjustor,
centrifugal blower, auto ignition
Ignition type: High-voltage spark, liquefied gas ignition and secondary auto
Ignition.
Fuel atomized type: High pressure oil pump atomizer
Max fuel charge/spraying: 500kg/h
Fuel type Diesel oil
Motor power of centrifugal shaft blower: 22kw
Air-oil ratio adjust system: Full procedure auto adjustment by setting adjusting
Parameter
Adjustment of oil mass: Long-range auto adjustment as setting temperature
parameter
Adjustment of air flow: Multi-blade blower, auto adjustment
Type of oil pump: Three-screw
Pressure of oil pump: 3Mpa
1.3 One temperature transmitter
It is mounted in the discharge chute of the dryer and used for control of burner auto flame.
1.4 Fuel supplying system
With big type of oil filter, which could be cleaned at regular intervals to insure continuous production.
Fuel tank: 16T Diesel tank 1pc
Specification
QLB Series Asphalt hot mix plant specification table
| Name | Specification | ||||||
| Model | 600 | 1000 | 1500 | 2000 | 2500 | 3000 | |
| Capacity of production | 48tph | 80tph | 120tph | 160tph | 200tph | 240tph | |
| Cold bin volume | 8m3 | 9m3 | 10m | 10m3 | 12 m3 | 12m3 | |
| Dust removing type | Gravity drop type and bag filter(air back fluch) | ||||||
| Fuel | Diesel/masut/Natural gas | ||||||
| Volume/number of hot bin | 12t/4 | 32t/4 or 5 | 40t/4 or 5 | 50t/5 | 60t/5 | 80t/5 | |
| Precision of aggregate weighing | Less than ±0.1% | Less than ±0.1% | |||||
| Precision of powder weighing | Less than ±0.16% | Less than ±0.16% | |||||
| Precision of asphalt weighing | Less than ±0.18% | ||||||
| Mixer ability KG/batch | 600 | 1000 | 1500 | 2000 | 2500 | 3000 | |
| Volume/number of asphalt tank | 10m3/2 | 16m3/2 | 30m3/2 | 30 m3/3 | 50 m3/2 | 50 m3/3 | |
| Volume of finished product bin(T) | - | 60 | 100 | 120 | 160 | ||
| Total power(KW) | 185 | 248 | 345 | 470 | 608 | 680 | |
